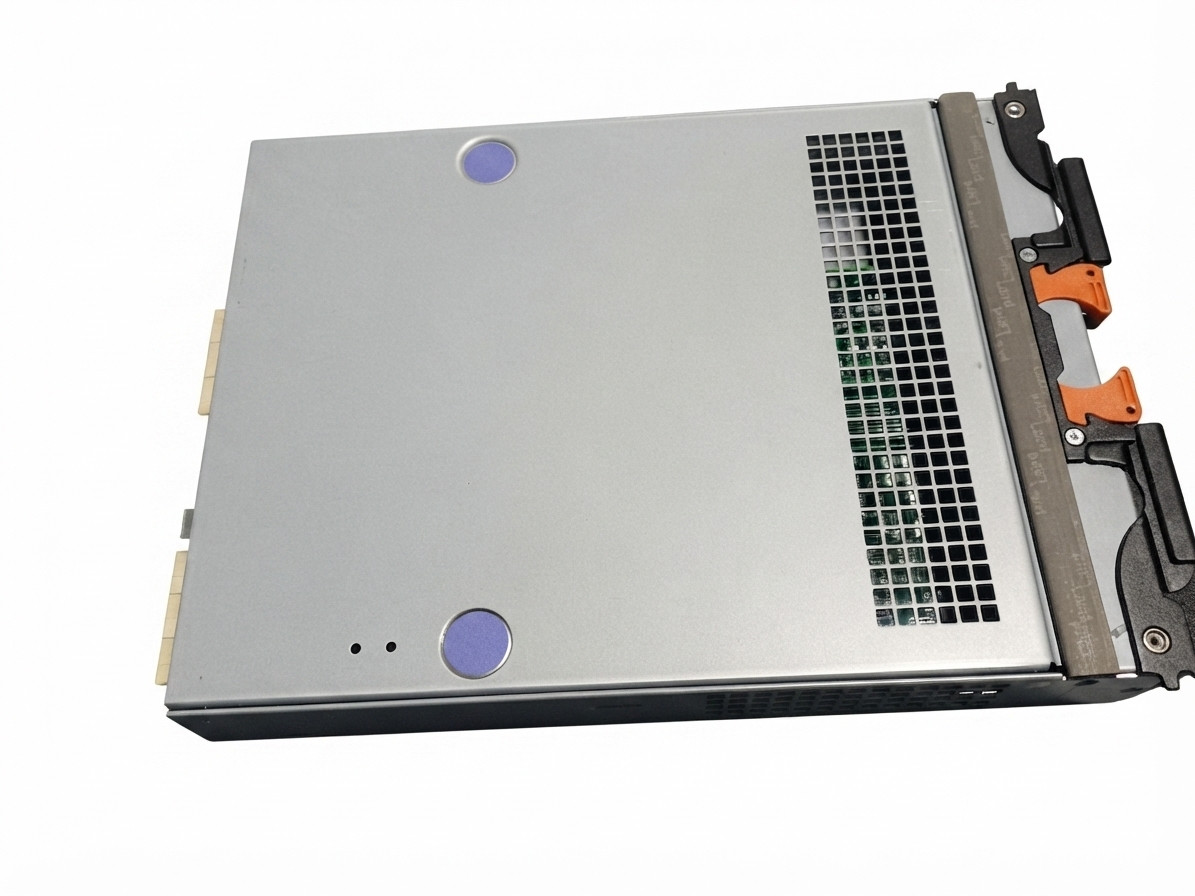

The IBM 01DH720 ESLS Storage Enclosure Parts Services Manager (ESM) is a critical service module used in IBM ESLL/ESLS storage enclosure systems. It acts as the Enclosure Services Manager (ESM), which controls and monitors the internal operation of the disk enclosure.

This module is responsible for managing communication between disk drives and external controllers, handling enclosure status reporting, environmental monitoring, and SAS signal routing through the midplane. It ensures the storage enclosure operates reliably and maintains proper interaction with the connected RAID or SAS host systems.

Each ESLS enclosure typically uses two ESM modules for redundancy, allowing continuous operation even if one module fails. It is a key component for maintaining high availability in enterprise storage environments.

Specifications:

• Brand: IBM
• Part Number: 01DH720
• Type: Enclosure Services Manager (ESM)
• System: IBM ESLL / ESLS Storage Enclosures
• Function: SAS expander, enclosure monitoring, and system management
• Redundancy: Dual ESM configuration supported
• Interface: SAS-based enclosure management
• Application: Enterprise storage enclosure control and monitoring

Features:

• Manages communication between drives and external storage controllers
• Provides enclosure health monitoring and status reporting
• Supports redundant dual-module configuration for high availability
• Handles SAS signal routing through the enclosure midplane
• Enables hot-swap maintenance without shutting down the system (system dependent)
• Designed for continuous operation in data center environments
• Essential component for IBM ESLS/ESLL storage systems
