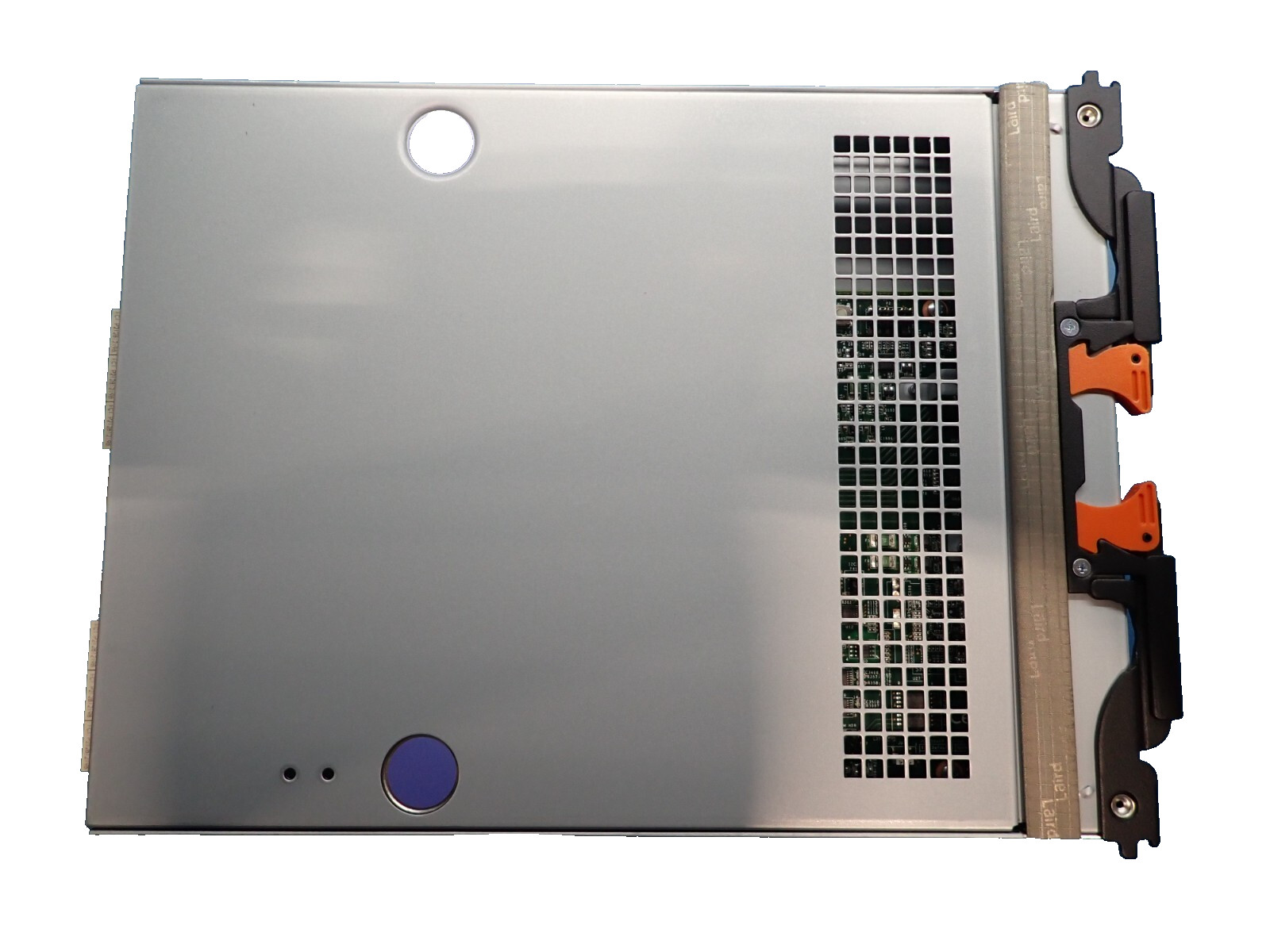

It acts as the control and monitoring unit of the disk enclosure, handling communication between drives, SAS expanders, power systems, and host controllers. In simple terms, it is what keeps the storage enclosure “organized” and visible to the server.
This module is commonly found in IBM EXP-series and similar SAS disk enclosures, where it ensures stable operation, redundancy, and proper reporting of hardware status.
It is a field-replaceable unit (FRU), meaning it can be swapped individually without replacing the whole enclosure, which helps reduce downtime in enterprise environments.
Specifications:
- Brand: IBM
- Part Number: 02WG010
- Type: Enclosure Services Manager (ESM)
- Function: SAS enclosure control and monitoring module
- System Role: Storage enclosure management (EXP / JBOD SAS enclosures)
- Design: Supports redundant dual-ESM configurations in compatible systems
- Installation Type: Hot-swappable FRU (in supported environments)
- Application: Enterprise IBM storage enclosures and SAS backplane management
Features:
- Manages SAS communication between drives and controllers
- Monitors enclosure health (temperature, fans, power, drive status)
- Enables proper enclosure identification and status reporting
- Supports redundancy for high availability storage systems
- Designed for IBM enterprise storage environments
- Field-replaceable unit for quick servicing and reduced downtime
