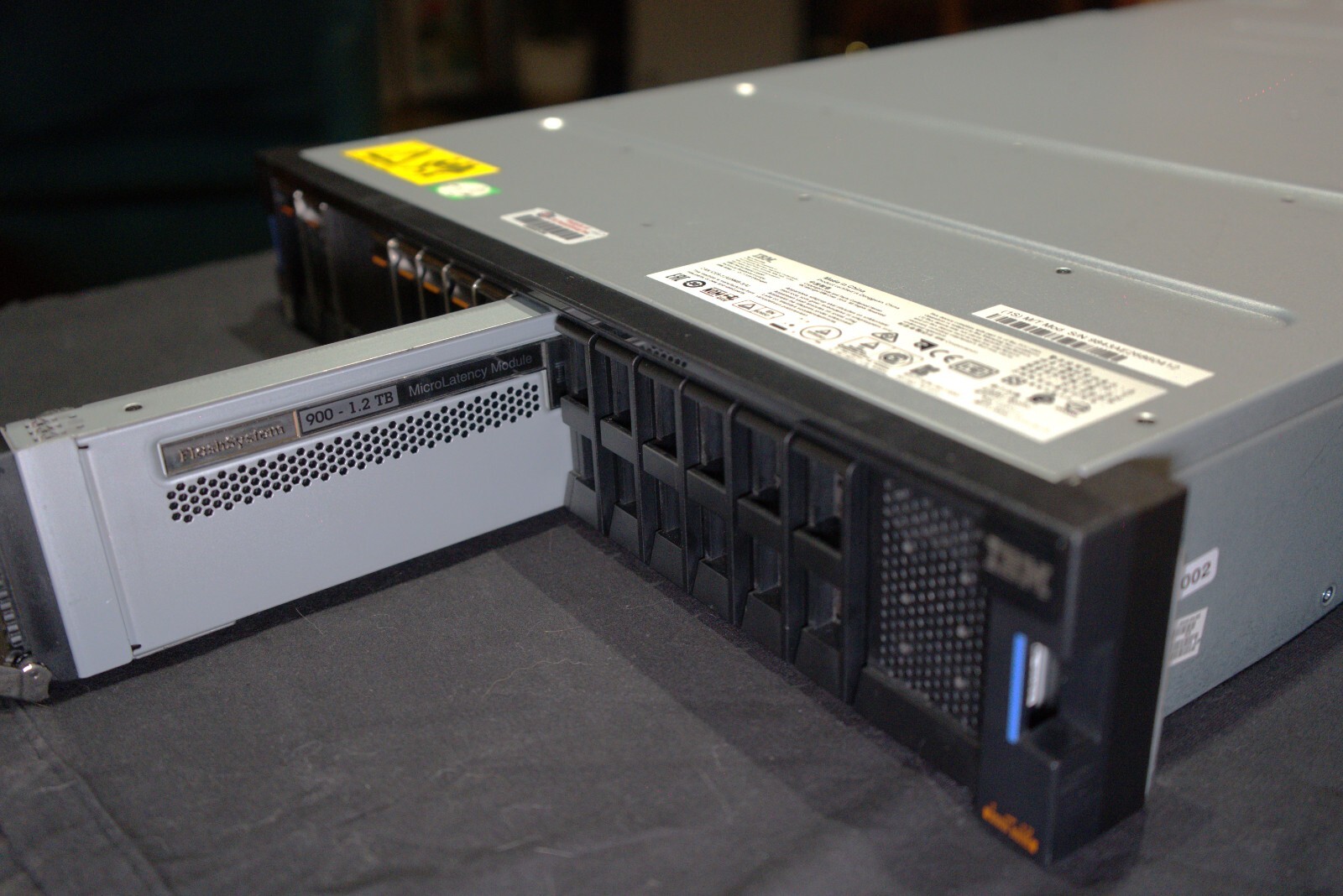

IBM FlashSystem 900 - 9843-AE2
With 6x 1.2TB Microlatency Modules

P/N:9843-AE2

In Excellent Condition, Fully Working When Removed

Included:

• 1 xIBM FlashSystem 900 Storage EnclosureConsisting Of:
• 2 x IBM 1300W Power Supply - 00FX893
• 6 x IBM Microlatency Module 1.2TB - 00RY902
• 2 x IBM Battery Module -02CL197 (Unknown Battery Life / Condition)
• 2 x FlashSystem 900 Canister 00WY472 Each With:
• 2 x IBM FlashSystem 4-Port (2x 16/10/8G + 2x 10/8G) Fibre Channel FC/FCoE Host Interface Cards - 00DH919
• 1 x 8GB DDR3 Memory
• 2 x Fan Modules - to deploy and manage, the IBM FlashSystem 900 is designed to accelerate the applications thatdrive business. Powered by IBM FlashCore Technology, IBM FlashSystem provides the performance with IBM MicroLatency delivers 90 µs write latency and 155 µs read latency
• Macro efficiency lowers operating costs and increases efficiency of IT infrastructure by using muchless power and space than traditional hard disk drive (HDD) and solid-state disk (SSD) solutions
• Enterprise reliability protects critical assists with two-dimensional RAID protection, IBM VariableStripe RAID, redundant and hot-swappable components, and concurrent code 9843-AE2
• Form factor: 2U rack-mounted enclosure.
• Flash type: IBM-enhanced MLC
• IBM MicroLatency module protection: ECC error correction, Variable stripe RAID data protection, overprovisioning, and IBM two-dimensional Flash RAID.
• RAID support: RAID 5
• Host interfaces: Two RJ45 Ethernet connections for management and up to 16 host interface connections, which are SFP+ FC.
• Maximum bandwidth: 10 GBps Read (100%, sequential), 4.5 GBps Write (100%, sequential).
• Read IOPS ( 100% Random ): 1,100,000.
• Write IOPS ( 100% Random ): 600,000.
• Read latency: 155 µs.
• Write latency: 90 µs.
• Maximum volume support (LUNs): 2 K (2048).
• System management:
• IBM FlashSystem 900 GUI is available in any supported browser.
• IBM FlashSystem 900 CLI.
• SNMP.
• Email alerts.
• Syslog redirect
• Cooling: Four hot-swappable fan modules.
• Power supply: 1300 watts, high-power version to run at maximum performance for longer durations during power supply servicing. Two redundant hot-swap 200 - 240V AC auto-sensing power supplies.
• Input power: 1300 watts maximum, 625 watts RAID5 typical operation, per 2U
• AES-XTS 256 bit data-at-rest encryption with local key management. Two new functions have been added to the encryption feature and can be accessed by using the FlashSystem 900 GUI:
• Hot Encryption Activation - Adding an encryption license to a previously initialized system
• Encryption Re-key - Changing the encryption key on a previously initialized system
