Zombie Components LLC Sylmar, California IBM 2161C8E 93H2477

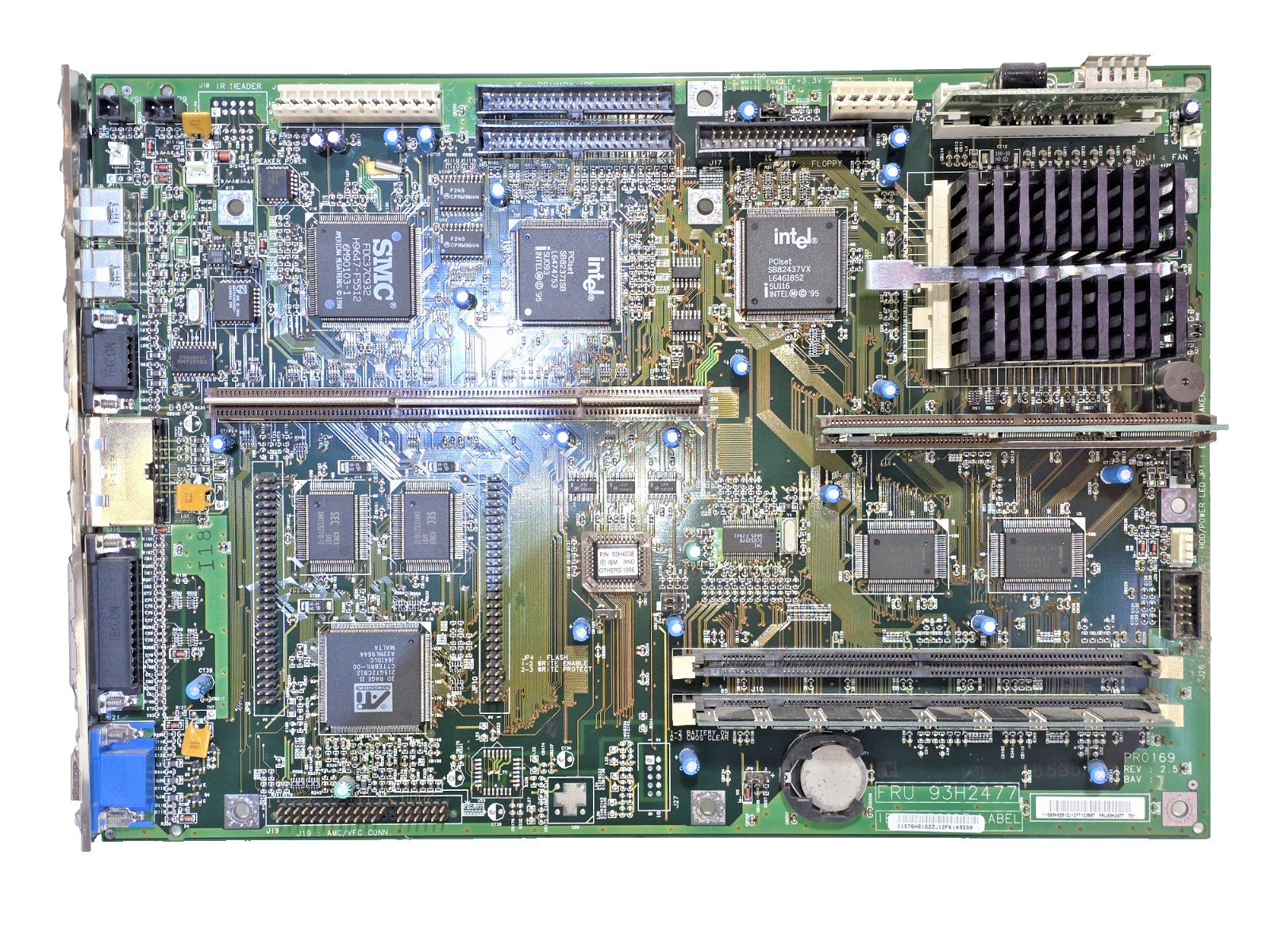

IBM Aptiva 2161 system board, IBM FRU 93H2477, pulled as a set from an Aptiva 2161-C8E. Includes the installed processor with heatsink, voltage regulator module, 32MB DIMM, L2 cache module, riser card, ISA sound card and ISA modem.
Condition
60 Day Money Back Guarantee. Powered; POST; IBM SurePath setup screens read.
Details and highlights
- Complete matched set from one Aptiva 2161-C8E: board, CPU, VRM, RAM, cache, riser, sound, modem.
- Shown booting: BIOS setup and Windows 95 startup.
- CPU and heatsink installed; Pentium MMX 166 per label cross reference.
- Rear I/O bracket present and straight.
- IBM FRU labels intact and legible on board, DIMM, cache, riser.
- Retro PC demand: 430VX Socket 7 with ISA slots, on-board ATI Rage II, 2 USB.
Specifications ParameterValue MPN93H2477TypeIBM Aptiva 2161 / 2162 system board, Socket 7Board markingPRO169 REV 2.5; BIOS chip P/N 93H4038ChipsetIntel 430VX (SB82437VX, SB82371SB)ProcessorIntel Pentium with MMX 166MHz, installed with passive heatsink (IBM P/N 40H8983)Memory32MB 168-pin DIMM installed (IBM FRU 42H2821, 66MHz, 3.3V); 2 DIMM sockets, 1 openL2 cache256KB module installed (IBM FRU 07H1150)Videoon-board ATI 3D Rage II, 2MBRear ports2 PS/2, 1 serial, 2 USB, 1 parallel, 1 VGAOn-board connectors2 IDE, 1 floppyRiser cardIBM FRU 12H2025, 2 PCI plus ISA slotsSound cardISA, with daughterboard; game port, line out, line in, microphoneModemISA, Lucent chipset, 2 RJ11 jacksBIOSIBM SurePath, version BVAUS4A, 01/19/97 Included
System board 93H2477 with rear I/O bracketProcessor, heatsink and voltage regulator module, installed32MB DIMM (FRU 42H2821)L2 cache module (FRU 07H1150)Riser card (FRU 12H2025)ISA sound card with daughterboardISA modem card with audio link cable
Not included:
Power supply, case, drives, drive cables
Monitor, keyboard, mouse, speakers
Operating system media, manuals
Compatibility and requirements
IBM Aptiva 2161 and 2162 systems using system board FRU 93H2477. IBM riser form factor, not ATX: expansion cards mount on the included riser. Compare FRU 93H2477 with your board before ordering.
Quality control
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping
Box 18 x 14 x 7 in, ship weight 5 lb. Boards packed in anti-static bags with rigid padding.
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.
Returns, warranty, and money-back guarantee
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
