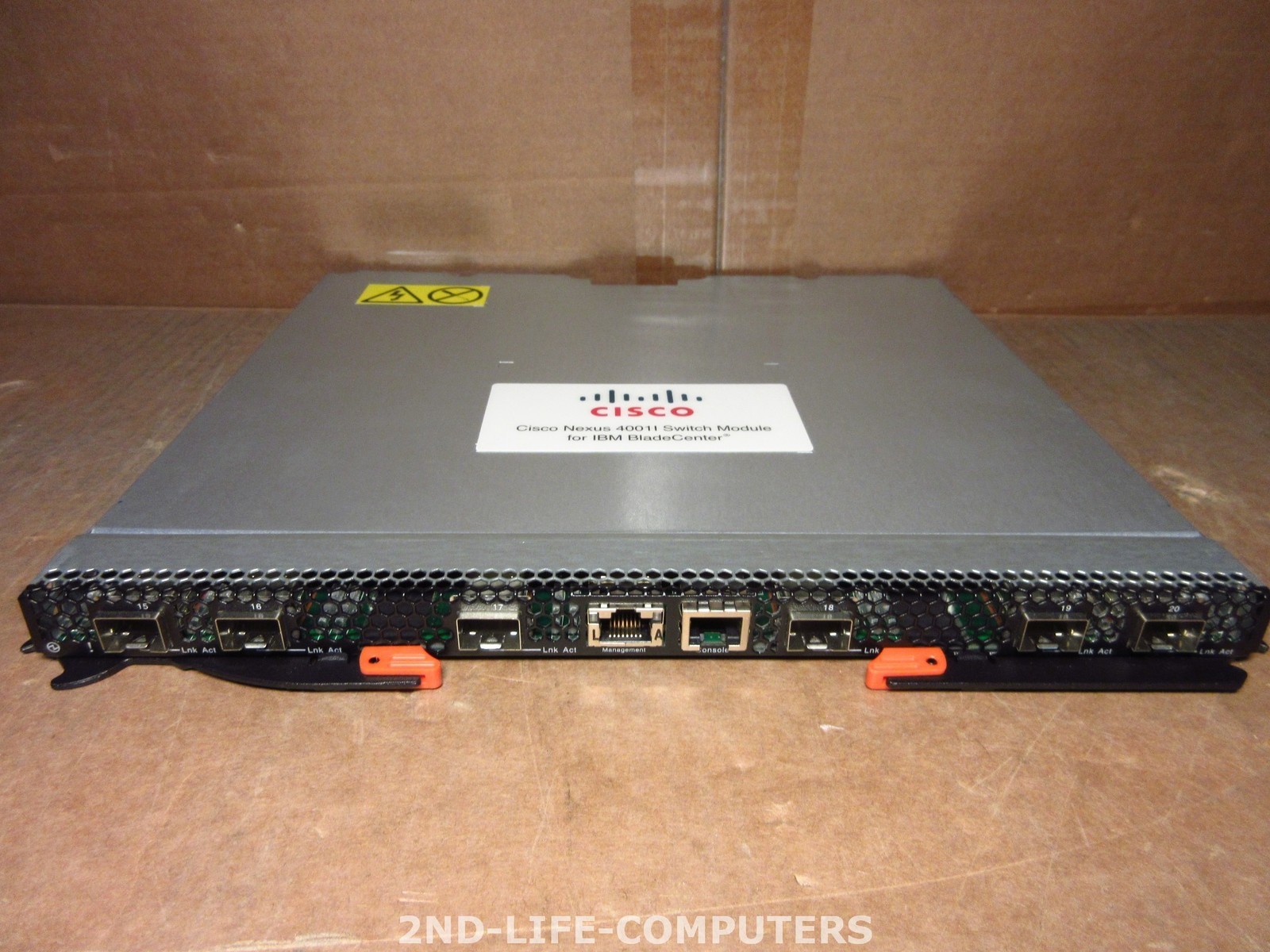

IBM Cisco N4K-4001I-XPX V02 Nexus 4001I Switch Module 46C9237 46C9236
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
EXCLUDING NETWORK CABLES
See photos for actual item!
Price is for 1 item.
Description
Specification
Performance
● 400-Gbps switching capacity ● Forwarding rate of 300 million packets per second (mpps) ● Low, predictable, and consistent latency of 1.5 microseconds regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interface ● Line-rate traffic throughput on all ports ● Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability
MAC addresses
8192
Number of configurable VLANS
512 (configurable range 1 to 4096)
Spanning-tree instances (sum of the VLANs per port: that is, the number of VLANs times the number of ports)
● Rapid Spanning Tree Protocol (RSTP): 3000 ● Multiple Spanning Tree (MST) Protocol: 10,000
Access control list (ACL) entries
512
Number of EtherChannels
7
Number of ports per EtherChannel
6
Queues
8 hardware queues per port
Memory
2-GB DDR2 DIMM with ECC
Flash memory
1-GB eUSB
Power consumption
12V at 5.75A (69W) (maximum)
Indicators
Total of 16 LEDs on the faceplate
● 12 LEDs for uplink port status ● 2 switch-status LEDs ● 2 management-port-status LEDs
Dimensions
(L x W x H)
10.27 x 11.57 x 0.79 in.
(260.93 x 293.9 x 20 mm)
Weight
Approximately 3.94 lb (1.79 kg)
Environmental ranges
● Operating temperature: 32 to 104° F (0 to 40°C) ● Storage temperature: –13 to 158° F (–25 to 70°C) ● Operating relative humidity: 10 to 85% noncondensing ● Storage relative humidity: 5 to 95% noncondensing Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
