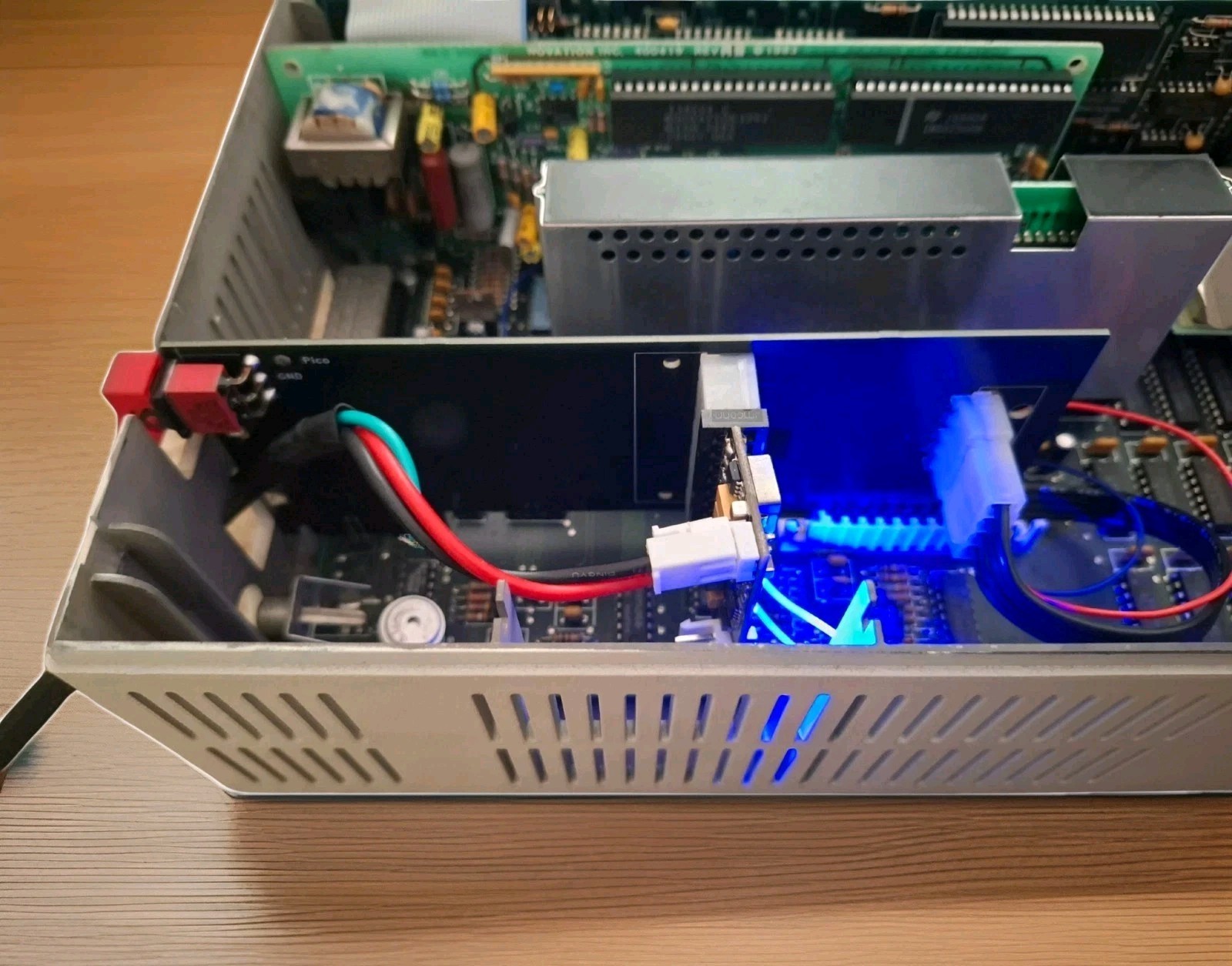

VoltBus Rev 1 – IBM PCjr PicoPSU Adapter PCB
Second Wave LogicSmall-batch enthusiast PCB designed for integrating PicoPSU-style DC-ATX power supplies into the IBM PCjr.This listing is for:- PCB ONLY
- No components includedDesigned for hobbyists and retro computing enthusiasts comfortable sourcing and assembling through-hole components.Features:- IBM PCjr expansion bus power interface
- PicoPSU / DC-ATX module support 24 pin
- Compact internal installation
- Support for standard ATX PS_ON switching
- Black PCB with white silkscreen
- Designed with future modular expansion in mindImportant:
Many PicoPSU clone units vary internally. Testing showed standard ATX pin 16 PS_ON switching to be the most reliable startup method.
Components RequiredBuilder must source all components.Typical VoltBus Rev 1 build require:- PicoPSU or compatible DC-ATX module 24 pin
- 24-pin ATX PCB header/socket
- SPDT ON-ON rocker switch
- Original IBM PCjr switch may be used
- Compatible replacement switches may also be used
- 4-pin LP4 disk drive Molex connector 90 or straight ( can be swapped from pcjr original power supply)
- 3-pin 2.54mm fan header (can be swaped from pcjr original power supply)
- Wire for PS_ON jumper if using alternate ATX pin 16 startup methodRecommended:- 12V regulated DC supply
- 8A minimum
- 10A preferred for expanded systems
Board only. No PicoPSU, connectors, switch, hardware, or components included.This is an enthusiast-level DIY project intended for experienced retro hardware builders.Designed by Second Wave Logic.Limited first-run boards available.ships with detailed instructions. soldering skills required.upgrades and revisions expected for Rev B. Rev B is expected to be sold as Completed boards, no soldering required. Will not be sold with Pico or power brick. Expected price increase for parts and labor.
