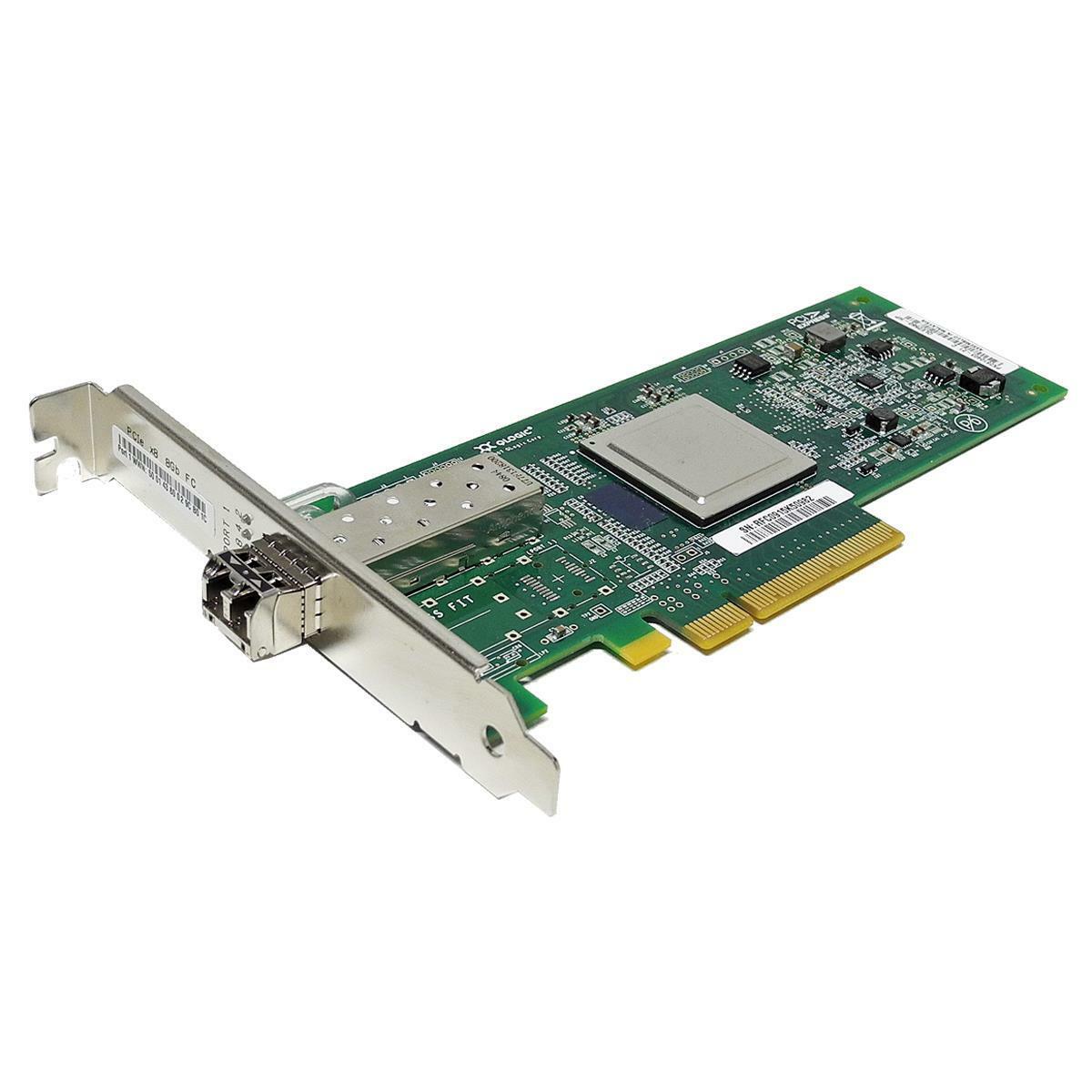

IBM QLogic QLE2560-IBMX FC Single-Port 8Gb PCIe x8 Network Adapter 42D0503 FP
Description
QLogic
IBM QLE2560-HP FC Single-Port 8Gb PCI-E x8 Network Adapter Model: QLE2560-IBMX
IBM PN: 42D0503
Technical data / Specifications
Manufacturer / Manufacturer
QLogic Inc.
Type / Device Type
Fibre Channel Network Adapter
Form Factor
FULL-profile, full-bracket
Fibre Channel Protocol
FC-AL, FC-AL2, FCP-3-SCSI, FC-Tape, FC-IP
Fibre Channel Class of Service
2 and 3
Interfaces / Interfaces
1 x 8 GB FC SFP + port (1 x 8 GB transceivers included)
Bus Iinterface
PCI-Express x8 2.0
Data Transfer Rate / Data Transfer Rate
8/4/2 Gbps
OS / Operating Systems
Microsoft Windows Server™ 2008, 2008R2, 2012, 2012R2
Red Hat Enterprise Linux 5, 6, 7
SUSE Linux Enterprise Server 10, 11, 12
VMware ESX 4.1, ESXi 4.1
VMware vSphere (ESXi) 5.0, 5.1, 5.5, 6.0
Compatibility / Compatibility
System x3250 M6, x3550 M5, nx360 M5, x3100 M5, x3250 M5, x3500 M5, x3550 M5, x3650 M5,
x3850 X6/x3950 X6, x3500 M4, x3530 M4,
x3550 M4, x3630 M4, x3650 M4, x3750 M4,
dx360 M4, nx360 M4
Standards
EN60950, EN60825, CE Mark, EN55022, CISPR22, EN55024, EN61000, FCC Part 15 Class A, VCCI, UL, BSMI, MIC, RoHS,
Delivery / Scope of delivery
1 x QLogic QLE2560 Network Adapter
1 x 8Gb SFP+ Transceiver
More information and details can be found on the pages of the manufacturer.
Please refer to the manufacturer's website for more information and details.
All parts are used but 100% OK!!!
All parts are used but 100% fine!!!
