Offered for sale is an IBM S/390 Integrated Server 3006-B01 processor/I/O cage assembly removed from a decommissioned IBM System/390 installation.

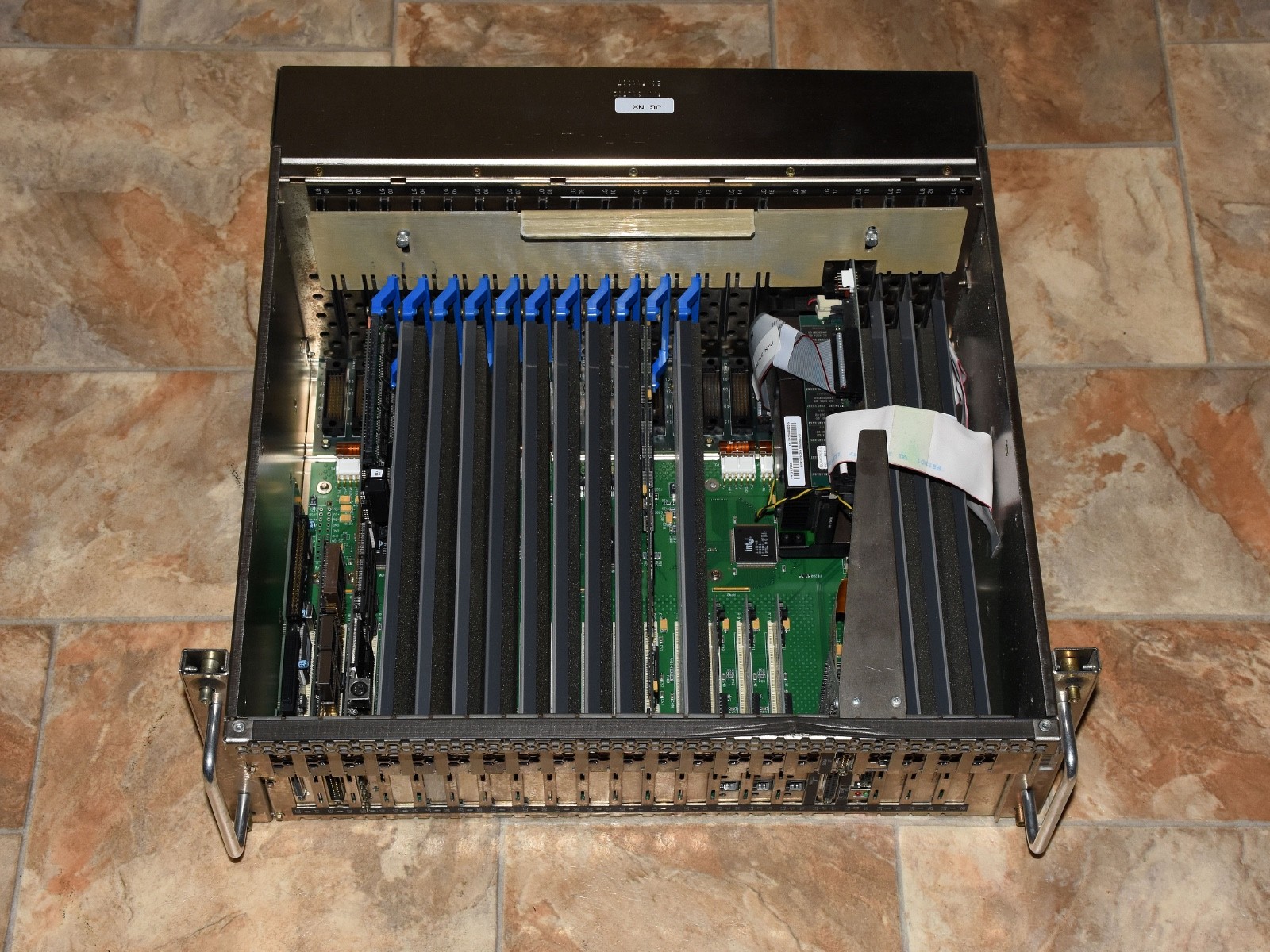

This is the core processor and I/O module from the IBM 3006-B01 Integrated Server. It includes the Enhanced P/390E processor card with 256MB of dedicated S/390 memory, along with the processor cage, service-processor hardware, backplane, and assorted original interface cards shown in the photographs.
Identified components include:
IBM processor/I/O cage assembly, P/N 31L7707, EC F11696
IBM Enhanced P/390E 256MB processor card, FRU P/N 11J4299
IBM 3006 card assembly, P/N 31L7993
IBM/Adaptec AHA-2944UW differential Ultra Wide SCSI adapter
SeaLevel 7402 four-port serial adapter, IBM P/N 31L7703
Three IBM EtherJet 10/100 PCI Management Adapters, FRU P/N 34L1209
Additional IBM I/O, communications, backplane, and interface assemblies shown in the photographs
Our understanding is that the processor module was working when it was removed from service. However, we do not have the compatible IBM S/390 cabinet, power equipment, software, or specialized test equipment required to power up and fully test it. It has therefore not been independently functionally tested by us.
The assembly and cards show normal cosmetic wear, dust, surface discoloration, and other signs of age and previous installation. No obvious major physical damage was observed, but the photographs should be reviewed carefully for the exact condition and configuration.
This listing is for the processor cage and all loose cards and assemblies pictured. The cards were removed for detailed photography and are included. No external cabinet, power supplies, disk drives, software, operating-system licenses, cables, manuals, monitor, keyboard, or other accessories are included.
This is specialized vintage enterprise equipment. Please verify all part numbers and compatibility before purchasing. Due to its age and specialized nature, professional installation, configuration, and servicing may be required.
