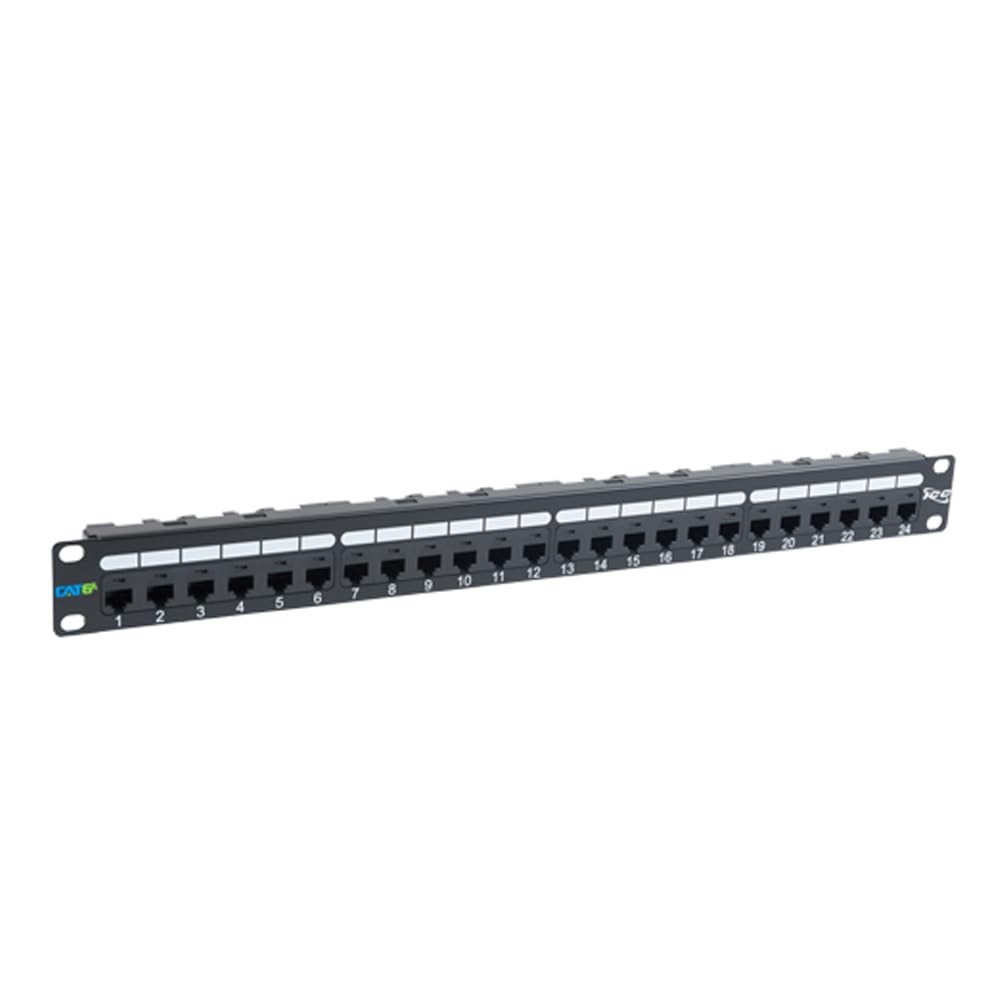

ICC CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS (icmpp0246b) ICC CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS (icmpp0246b)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS 24 x Cable Ties 4 x #12-24 x 5/8" Pan Head, Pilot Point Machine Screw 1 x Installation Instructions Sheet
Certifications & Standards: ANSI/TIA-568 TIA/EIA-568C.2
Additional Information: Environmental conditions: Temperature range Storage: -40° to +70°c Operational: -10° to +60°c Relative humidity (operational): maximum noncondensing 93% Electrical: Electrical insulation resistance: 500m min @ 100v dc Dielectric withstanding voltage: 1000v dc or ac peak Contact @ 60hz for 1 minute Spring wire contact resistance: 20m max. Idc contact resistance: 2.5m max. Mechanical: Retention: 50n (11 lbs sq) or 60s±5s Insertion/extractor: 750 cycles min. Idc wire gauge: 22~24 awg Physical: Housing: zinc alloy fully shielded Marking: mold ul information Spring wire: phosphor bronze alloy plated with 50µ of gold over 70~100µ of nickel Idc: phosphor bronze alloy with 100µ 100% sn alloy
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
ICC CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS
- Brand Name: ICC
- Ean: 0633758092197
- Model Number: ICMPP0246B
- Number of Items: 1
- Number of Ports: 24
- Part Number: ICMPP0246B
- Specification Met: UL, ANSI
- UNSPSC Code: 43223309
- UPC: 633758092197
ICC's Category 6A 24-Port 110-Type 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-Type IDC on the rear is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk (ANXT). The jacks are grouped in six-port modules for quick administration and labeling. All of the modular contacts are 50 gold plated to protect from corrosion. The high-density design occupies 1 rack mount space (RMS) and measures 19" width x 1.75" height.
Features
- Vertical 110-Type IDC connections reduce potential Alien Crosstalk (ANXT)
- Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements
- Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware component rating requirements
- 110-Type IDC termination helps reduce installation time and improve wire retention
- 50 gold plating on all modular contacts to protect from corrosion
- Mounts on industry standard 19" wide racks or equipment
- 1 rack mount space (RMS)
- T568A or T568B wiring schemes
- Meets TIA/EIA-568-C.2 Cat 6A connecting hardware requirements
- UL Listed
Package Contents:
- CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS
- 24 x Cable Ties
- 4 x #12-24 x 5/8" Pan Head, Pilot Point Machine Screw
- 1 x Installation Instructions Sheet
SpecificationPhysical CharacteristicsProduct Material
- Gold
- Zinc Alloy
- Phosphor Bronze
Form FactorRack-mountableCompatible Rack Width19"Height1.7"Compatible Rack Warranty3 YearInterfaces/PortsTotal Number of Ports24Number of Network (RJ-45) Ports24General InformationBrand NameICCMarketing InformationICC's Category 6A 24-Port 110-Type 10G Patch Panel is component compliant to ANSI/TIA Category 6A connecting hardware requirements. The vertical 110-Type IDC on the rear is designed to provide optimum permanent and channel link performance and reduces potential Alien Crosstalk (AXT). The jacks are grouped in six-port modules for quick administration and labeling. All of the modular contacts are 50 gold plated to protect from corrosion. The high-density design occupies 1 rack mount space (RMS) and measures 19" width x 1.75" height. Features Vertical 110-Type IDC connections reduce potential Alien Crosstalk (AXT) Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port Enhanced crosstalk cancellation and reduced return loss for high bandwidth network requirements Exceeds ANSI/TIA-568 CAT 6A (10G) connecting hardware component rating requirements 110-Type IDC termination helps reduce installation time and improve wire retention 50µ gold plating on all modular contacts to protect from corrosion Mounts on industry standard 19" wide racks or equipment 1 rack mount space (RMS) T568A or T568B wiring schemes Meets TIA-568-C.2 Cat 6A connecting hardware requirements UL Listed Product TypeNetwork Patch PanelProduct NameCAT6A Patch Panel in 110 Type with 24 Ports and 1 RMSManufacturerICCManufacturer Part NumberICMPP0246BProduct ModelICMPP0246BTitleProduct TitleICC CAT6A Patch Panel in 110 Type with 24 Ports and 1 RMS (ICMPP0246B) Shipping
