Product Specification:
Sensor: Onsemi AR2020 (1/1.8” )
Max /Default Resolution:5120(H) *3840 (V)
Video Compression:MJPEG / YUY2(YUYV)
Resolution & Frame Rates:
Under USB 3.0 Interface & Speed:
5120x3840 MJPEG 27.5fps/ YUY2 7.5fps 5120x2880 MJPEG 30fps/ YUY2 10fps
4608x3456 MJPEG 27.5fps/ YUY2 10fps 4096x3072 MJPEG 27.5fps/ YUY2 15fps
4000x3000 MJPEG 27.5fps/ YUY2 15fps 4096x2160 MJPEG 30fps/ YUY2 20fps
3840x2160 MJPEG 30fps/ YUY2 23fps 3264x2448 MJPEG 27.5fps/ YUY2 23fps
2592x1944 MJPEG 27.5fps/ YUY2 27.5fps 2560x1440 MJPEG 30fps/ YUY2 30fps
2048x1536 MJPEG 27.5fps/ YUY2 27.5fps 1600x1200 MJPEG 27.5fps/ YUY2 27.5fps
1920x1080 MJPEG 30fps/ YUY2 30fps 1280x960 MJPEG 27.5fps/ YUY2 27.5fps
1280x720 MJPEG 30fps/ YUY2 30fps 640x480 MJPEG 27.5fps/ YUY2 27.5fp
Under USB 2.0 Speed:
5120x3840 MJPEG 20fps 5120x2880 MJPEG 23fps
4608x3456 MJPEG 23fps 4096x3072 MJPEG 27.5fps
4000x3000 MJPEG 27.5fps 4096x2160 MJPEG 30fps
3840x2160 MJPEG 30fps 3264x2448 MJPEG 27.5fps
2592x1944 MJPEG 27.5fps 2560x1440 MJPEG 30fps
2048x1536 MJPEG 27.5fps 1600x1200 MJPEG 27.5fps
1920x1080 MJPEG 30fps 1280x960 MJPEG 27.5fps/ YUY2 7.5fps
1280x720 MJPEG 30fps/ YUY2 10fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps
Shutter Type: Electronic Rolling Shutter/ Frame Exposure
Connecting Port Type: USB 3.0 Interface
Power Supply & Interface:USB Type-C Power Supply, Type-C
With 1.2m cable with USB3.0 Type-C port
DC 5V,Working Current 220-260mA
Working Temperature: -10°C to 70°C
Storage Temperature: -20°C to 80°C
Operating System Request：
Win10/Win11 etc;
Linux with UVC;
MAC-OSX10.4.8 or later;

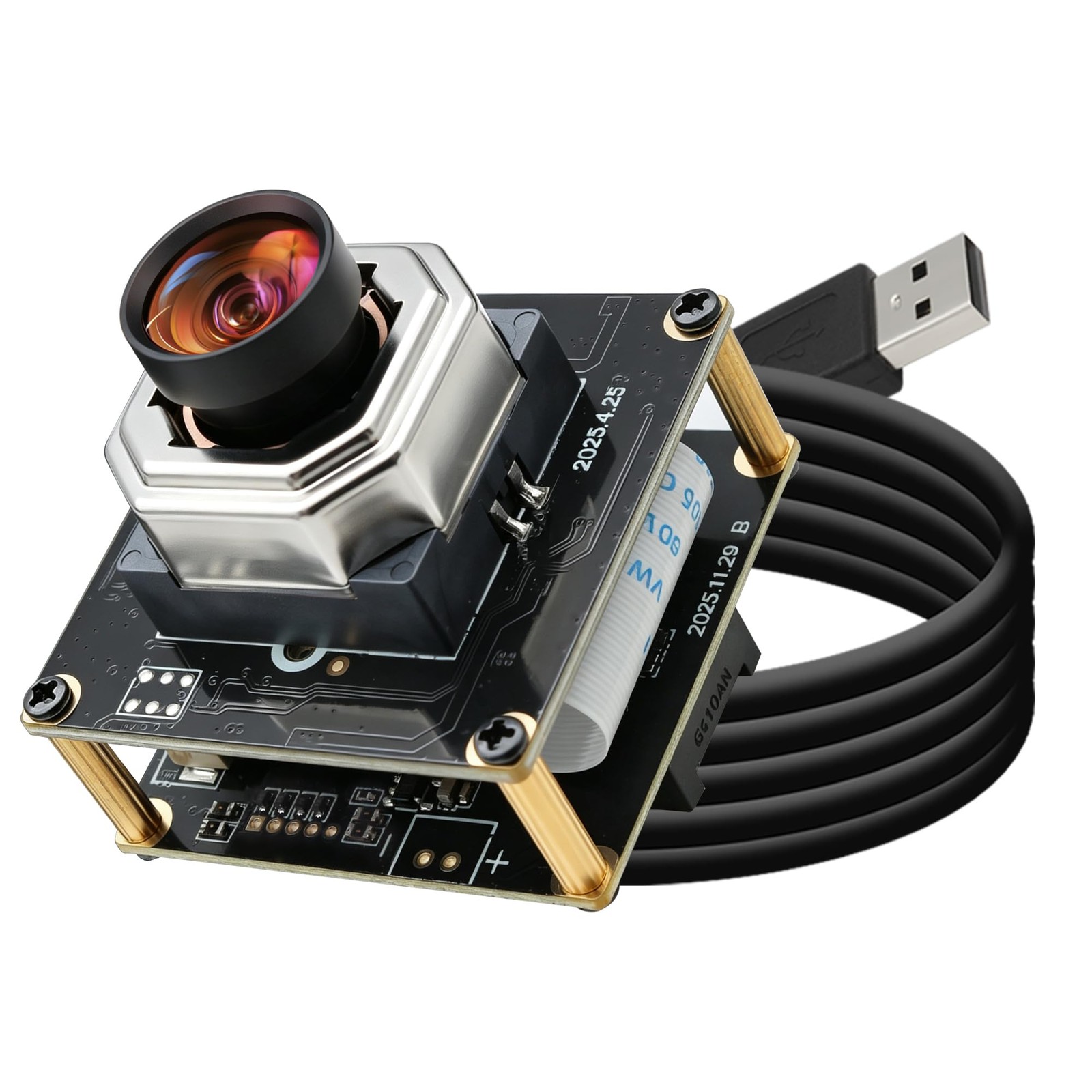

Android5.x or above.20MP 5K Ultra HD Resolution: This USB camera module delivers stunning 5K 5120× and 4K 2160P@30fps ultra-high-definition imaging with up to 20MP pixel density, capturing intricate details for precise visual recording and industrial inspection tasks.
USB3.0 High Speed Stable Transmission: Equipped with standard USB3.0 high-bandwidth interface for smooth, low-latency video streaming; backward compatible with USB2.0 devices, supports UVC plug-and-play, no extra driver installation required for fast and easy setup.
Autofocus & 85° No Distortion Wide Angle: Built in intelligent autofocus function automatically locks clear targets quickly; 85° HFOV wide-angle lens eliminates barrel distortion, providing natural, complete field of view for wide-range monitoring and shooting.
Wide System Compatibility: Fully compatible with Windows, Linux, Android, Mac OS systems; perfectly works with Raspberry Pi, Jetson Nano and other mainstream single-board computers, supports SDK secondary development for customized project needs.
Versatile Industrial & DIY Applications: Ideal for 3D printer real-time printing monitoring, intelligent robot visual recognition, industrial machine vision detection, outdoor security observation, AI vision projects and various DIY embedded imaging solutions.
