Main Parameters
Product Name

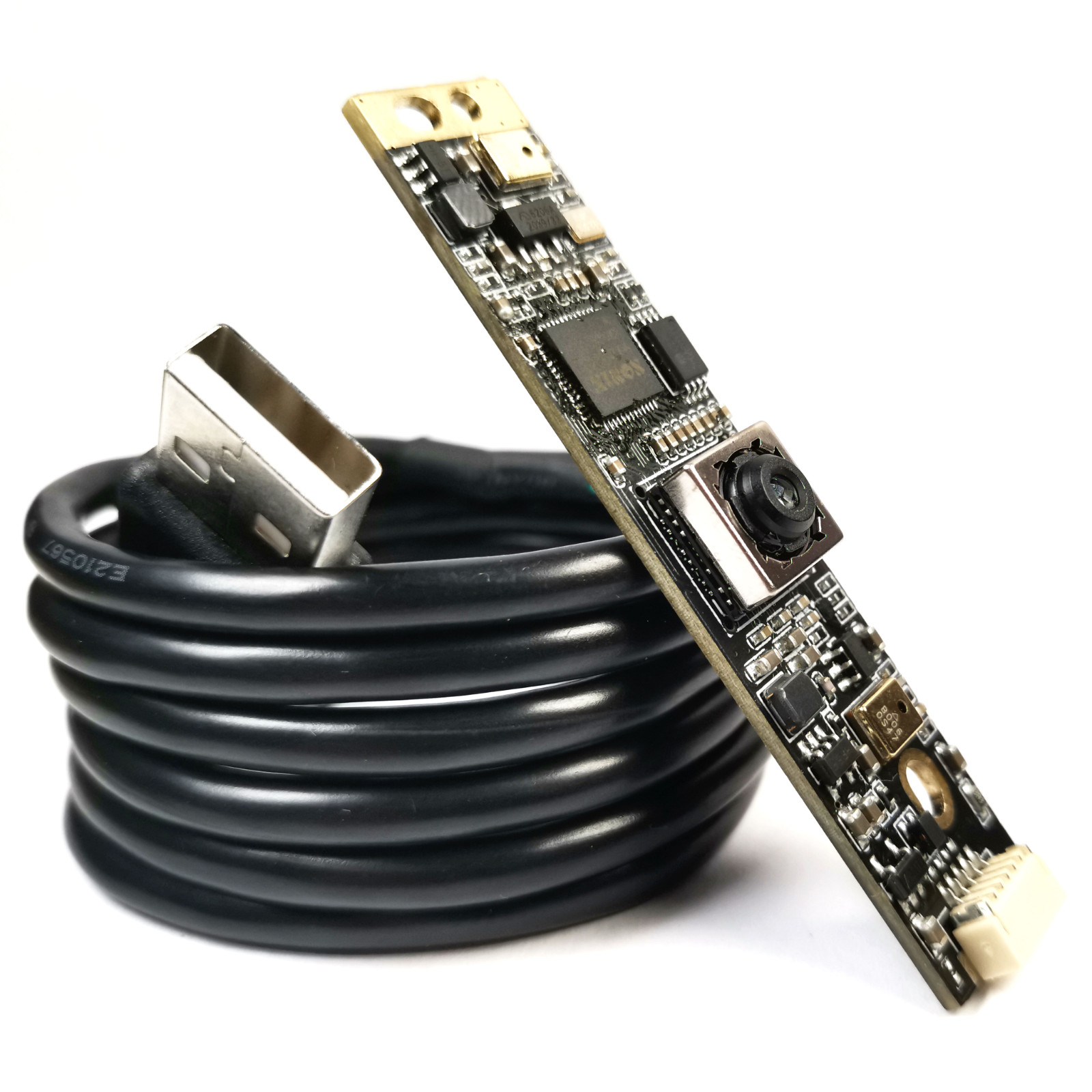

16MP USB2.0 Camera Module
Product Code
WN-L2110.L302L
Module Size
62*13mm
Image Sensor
1/2.8Inch CMOS IMX298
Pixel Size
1.12um x 1.12um
Resolution
4656H x 3496V
Output Format
MJPEG
FOV
78.4 Degree
Focus Type
Autofocus
Shutter Type
Electronic Rolling shutter
Audio Input
Digital Two-way Audio
Output and Power Supply
High Speed USB2.0
Interface
5 PIN 1.25MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White ,Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
Default 1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4656X3496(16MP)
8FPS
4208X3120
10FPS
3264 x 2448 (8MP)
10FPS
2592X1944 (5MP)
10FPS
2048*1536 (3MP)
10FPS
1920x1080 (1080P)
15FPS
1280X720 (720P)
15FPS
640X480 (VGA)
15FPS
Working Conditions
Working Voltage
USB DC +5V Supply
Working Current
220mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 85℃
Humidity
80 ~85%
