1.Main Parameters
Product Name

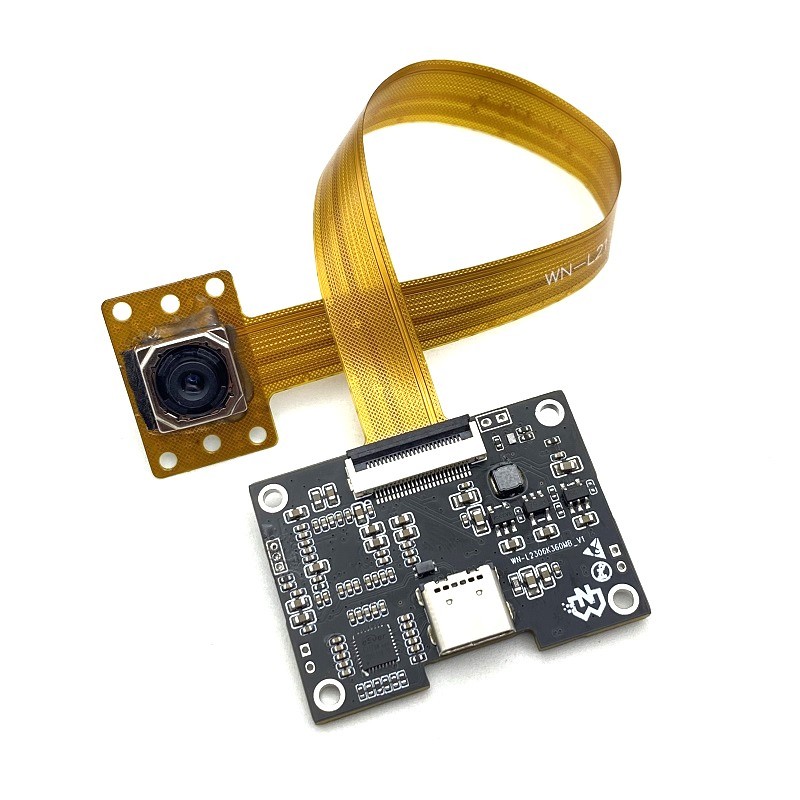

12MP USB3.0 Camera Module
Product Code
WN-L2306K360MB -37812M U3
Module Size
PCB: 40*29mm FPC: 150mm
Image Sensor
1/2.3-inch IMX378 CMOS Sensor
Max. Resolution
4000H x 3000V 12MP, 3840 H x 2160 V 4K
Pixel Size
1.55*1.55μm
Output Format
MJPEG, YUY2, H.264
Field of View
79°
Lens
EFL: 4.77mm, F/No: 1.75, 6P+IR 650nm
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutte
Output & Power Supply
High Speed USB3.0
Interface
USB3.0 Type-C
Controllable Parameters
Brightness, Contrast, Saturation, Hue,Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows,
Android, Linux, Mac OS, etc.
Connection Cable
Default1.5 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4000x 3000
18FPS
3840x2160
30FPS
2952 x1944
30FPS
2548x1536
30FPS
1920x1080
30FPS
1600 x 1200
30FPS
1280 x 960
30FPS
1280x720
30FPS
800 x 600
30FPS
640 x480
30FPS
YUY2
4000x 3000
8FPS
3840 x 2160
15FPS
2952 x 1944
30FPS
2048 x 1536
30FPS
1920x1080
30FPS
1600 x 1200
30FPS
1280 x 960
30FPS
1280x720
30FPS
800 x 600
30FPS
640X480
30FPS
H.264
1920 x1080
30FPS
1600 x 1200
30FPS
1280 x 960
30FPS
1280 x 720
30FPS
800 x 600
30FPS
640 x 480
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
5V power
2
DP
Data-
3
DM
Data+
4
GND
GND
5
SSPXNI
USB3.0 SSPXNI
6
SSPXPI
USB3.0 SSPXPI
7
GND
GND
8
SSTXN1
USB3.0 SSTXN1
9
SSTXP1
USB3.0 SSTXP1
4.Working Conditions
Working Voltage
DC 5V
Working Current
480mA
Working Temperature
-20°C ~60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
