Main Parameters
Product Name

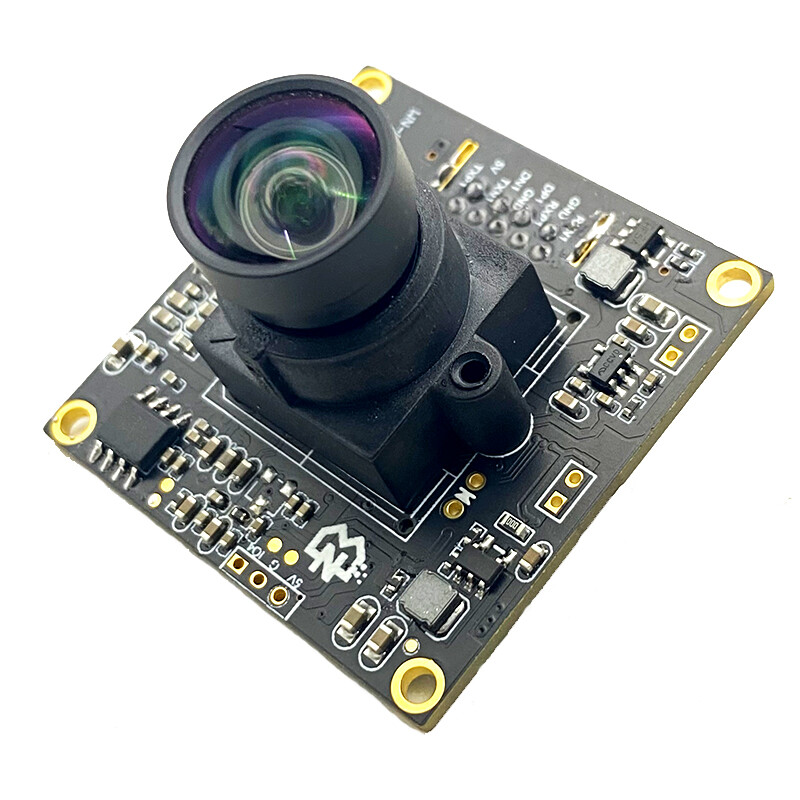

12MP USB3.0 Camera Module
Product Code
WN-L2305K357
Module Size
38*38mm
Image Sensor
1/2.3-inch CMOS Sensor
0.1Lux
Max. Resolution
4000H x 3000V
Pixel Size
1.55*1.55μm
Output Format
MJPEG, YUY2, H.264
Field of View
100°
Lens
FEL:3.24mm F/NO:2.7 4G+2P IR 650NM
Audio Input
USB Microphone
Focus Mode
Autofocus/ Fixed Focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB3.0
Interface
USB3.0 Female Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue,
Sharpness, Gamma, White Balance, Backlight，Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows,Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates (USB3.0)
MJPEG
4000x3000 (12MP)
18FPS
3840x2160(4K)
30FPS
2852x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
YUY2
4000x3000 (12MP)
8FPS
3840x2160(4K)
15FPS
2852x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
H.264
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
480mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
