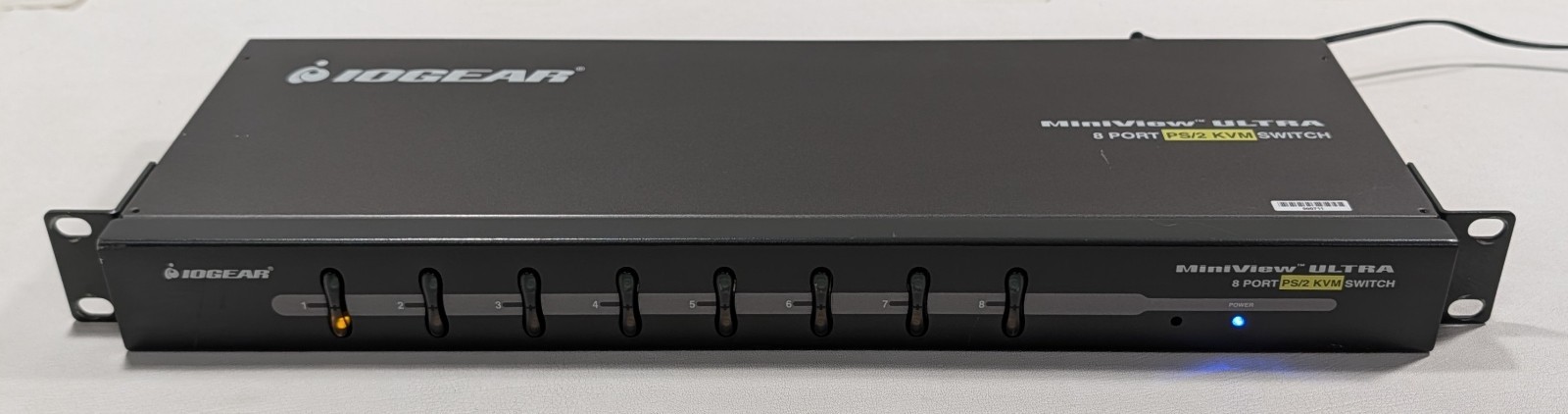

IOGear GCS138 8-Port MiniView Ultra PS/2 KVM Switch With Power Cord
We pride ourselves on our customer service so if you have ANY issues please contact us BEFORE leaving a negative review. We also ship everything very fast and very well packed!
PRODUCT DETAILS (These are general details from the company, may mention standard parts/features not included in this specific listing):
PRODUCT DETAILS:
The IOGEAR GCS138 MiniView Ultra is a high-density, 8-port PS/2 KVM (Keyboard, Video, Mouse) switch designed for server management and professional IT environments. It allows a single user to manage multiple computers using one console and is built with a rugged 1U rack-mountable metal chassis.
Technical Specifications:
Capacity: Supports 8 direct computer connections. It is cascadable up to three levels, enabling control of up to 512 computers from a single console.
Video Quality: Supports resolutions up to 1920 x 1440 with DDC, DDC2, and DDC2B support for high-quality display output.
Physical Ports:
Console Ports: 1x VGA (HDDB15 Female), 1x PS/2 Keyboard (6-pin mini-DIN), and 1x PS/2 Mouse (6-pin mini-DIN).
CPU Ports: 8x VGA (HDDB15 Male), 8x PS/2 Keyboard (6-pin mini-DIN), and 8x PS/2 Mouse (6-pin mini-DIN).
Form Factor: Standard 1U, 19-inch rack-mountable design (Dimensions: 1.75" H x 17" W x 6" D).
Power: Utilizes an external 9V DC power adapter.
Operational Features:
Control Methods: Users can switch between computers using front-panel push buttons, keyboard hotkeys, or the built-in On-Screen Display (OSD) menu.
Naming and Organization: The OSD allows users to assign unique names to each port, making it easy to identify specific servers or workstations.
AutoScan: A monitoring mode that cycles through active ports at user-defined intervals ranging from 3 to 60 seconds.
Emulation: Features full keyboard and mouse emulation (PS/2 and serial), which prevents computer boot-up errors by ensuring the PC "sees" a keyboard and mouse even when the KVM isn't focused on that specific port.
Status Indicators: Uses dual-color LEDs (Orange for "On Line" and Green for "Selected") to provide immediate visual status of all connections.
System Integration:
Plug-and-Play: The device operates at the hardware level, meaning it requires no software installation and is independent of the operating system (supports Windows, Linux, Unix, etc.).
Reset Capabilities: Includes a dedicated reset button to refresh the KVM configuration or clear the internal memory without powering down connected machines.
Compatibility: While natively PS/2, the unit is known for its durability in legacy server environments and can be adapted to support modern systems with specific IOGEAR conversion cables.
