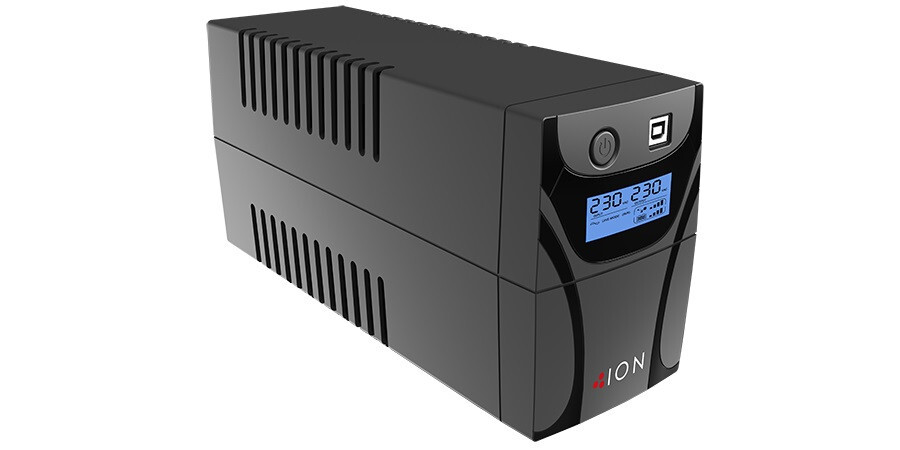

ION F11 850VA 480W Line Interactive UPS Backup Power Supply2 x Australian Outlets
Product Overview
ION F11 is a compact line interactive UPS that offers protection from power surges and failures in the home, office or small business. Ideally suited to protecting computers and POS devices the ION F11 provides clean, reliable power delivery. Presented in a stylishly engineered unit, it is compact to fit in tight spaces and provides multiple power receptacles, HID, SLS, USB communications port.
ION F11 Features
- 3 Year Advanced Replacement Warranty
- HID (Human Interface Device) No software installation required
- Boost and Buck Automatic Voltage regulation stabilises fluctuating power
- USB connection for local interface and software for real time monitoring and safe shutdown of connected even when UPS is off
- Auto-restart in AC power line surge overcharge and overload protection
Output Voltage DistortionLess than 5% at full loadOutput Frequency47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
TopologyLine Interactive
Output Connections(2) Australian 3 pin 10Amp
Transfer Time2-6ms typical
InputNominal Input Voltage230VInput frequency50/60 Hz +/- 3 Hz (auto sensing)Input Connections2m IEC to Australian 3 pin plug
Input voltage range for main operations170 – 280V
Batteries & RuntimeBattery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leak proof
Battery Capacity1 x 12V 9AH
Charging Current1A
Typical Recharge Time6 hours to 90%
Expected Battery Life3- 5 years
Communications & ManagementInterface PortUSB
Control panelLCD status display with On Line : On Battery : Replace Battery and Overload indicators
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and FilteringSurge energy ratingSurge energy rating
Data Line ProtectionRJ - 11 Surge Protection
UPS PhysicalMaximum Height143mm
Maximum Width100mm
Maximum Depth290mm
Net Weight5.2kg
Shipping Weight6.3kg
Shipping Height220mm
Shipping Width140mm
Shipping Environment0 – 40 °C
Operating Relative Humidity0 – 95 %
Operating Elevation0-1500 meters @ 0~40 °C, 1501-3000 meters @ 0~35 °C
Storage Temperature-15 – 45 °C
Storage Relative Humidity0 – 95 %
Storage Elevation0-15000meters
Audible noise at 1 meter from surface of Warranty3 Year Advanced Replacement
Note: images used for illustration purposes only
