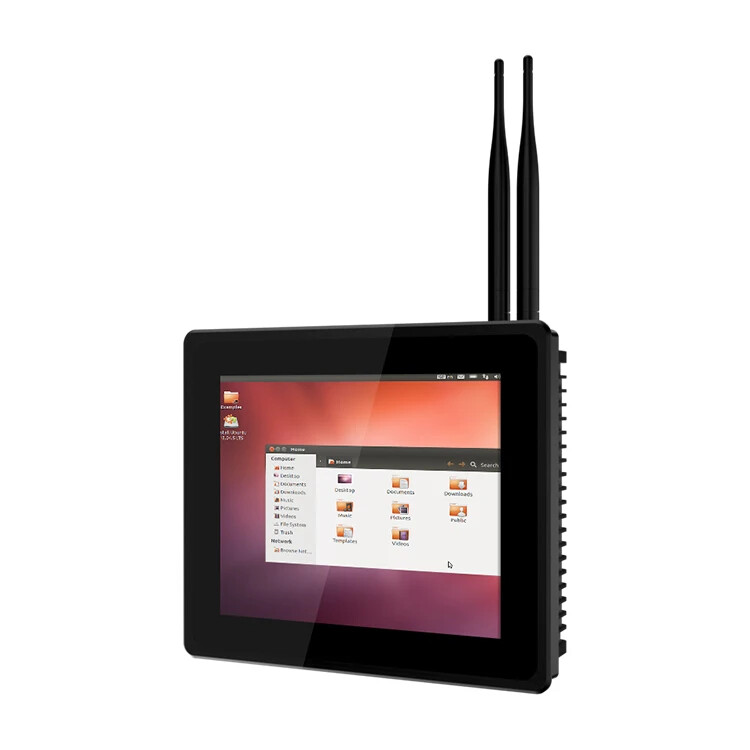

IP65 water-proof industrial Embedded 10 Inch Fanless Ip65 window Android Industrial All In One Capacitive PC

SPECIFICATION SHEETS :

Display Size 10.1 inch Resolution 1280* 800 Aspect ratio 4:3

Screen Type a-Si TFT-LCD Grayscale response time 30(TYP. ) (Tr+Td) ms Contrast ratio 800 : 1 (Typ. ) ( TM) Pixel pitch 0. 1695 X 0. 1695 Backlight type WLED, 50 hours, with LED driver Brightness[cd/m2] 450 (Typ. ) Viewing angle 80/ 80/ 60/ 80 (Typ. ) (CR≥10) Display color 16. 7M , 72% (CIE1931) Mainboard Processor Intel Baytrail series CPU Intel Celeron J1900 Motherboard J1900 Hard Disk SMI 2244 128GB MSATA Solid State Drive RAM DDR3 4GB 1333MHZ WiFi 300Mbps @ 400GI (Max) wireless module, signal omnidirectional coverage 20 30 meters Graphics card Intel CPU built-in graphics core Audio Onboard Realtek ALC662 HD audio decoder controller Internet Onboard 1*Realtek RTL8111F Gigabit LAN Built in speaker 3W Speaker Touch Touch type Capacitive touch Single point life > 50 million times Touch strength 15 40g Surface hardness 6H Glass type Chemically strengthened plexiglass Interface USB inferface 1*USB3. 0, 3*USB2. 0 (5*USB2. 0 needs to be extended) Serial interface 2*DB-9 RS-232 serial port (male) interface Extended display 15-pin standard VGA female port HDMI Standard HDMI Type A port Network Interface Onboard l*Real t ek RTL8111F Gigabit LAN Power connector 2. 5MM 12V 5A power Antenna 50MM omnidirectional 2.0dBi gain frequency range 2400 -2500MHz Audio 1*3.5 brush LINE-OUT, 1*3. 5MM MIC-IN Environment Operating temperature -10℃60℃ Working humidity 20%~ 80% Maximum power consumption ≤48W Working current ≤4A Protection level front panel IP65 waterproof and dustproof Others Material Aluminum alloy Color Black Warranty 1 year Packing List All in one tablet PC, Power cable, Adapter, warranty card, buckle accessories
