Features:Length: about 26cm

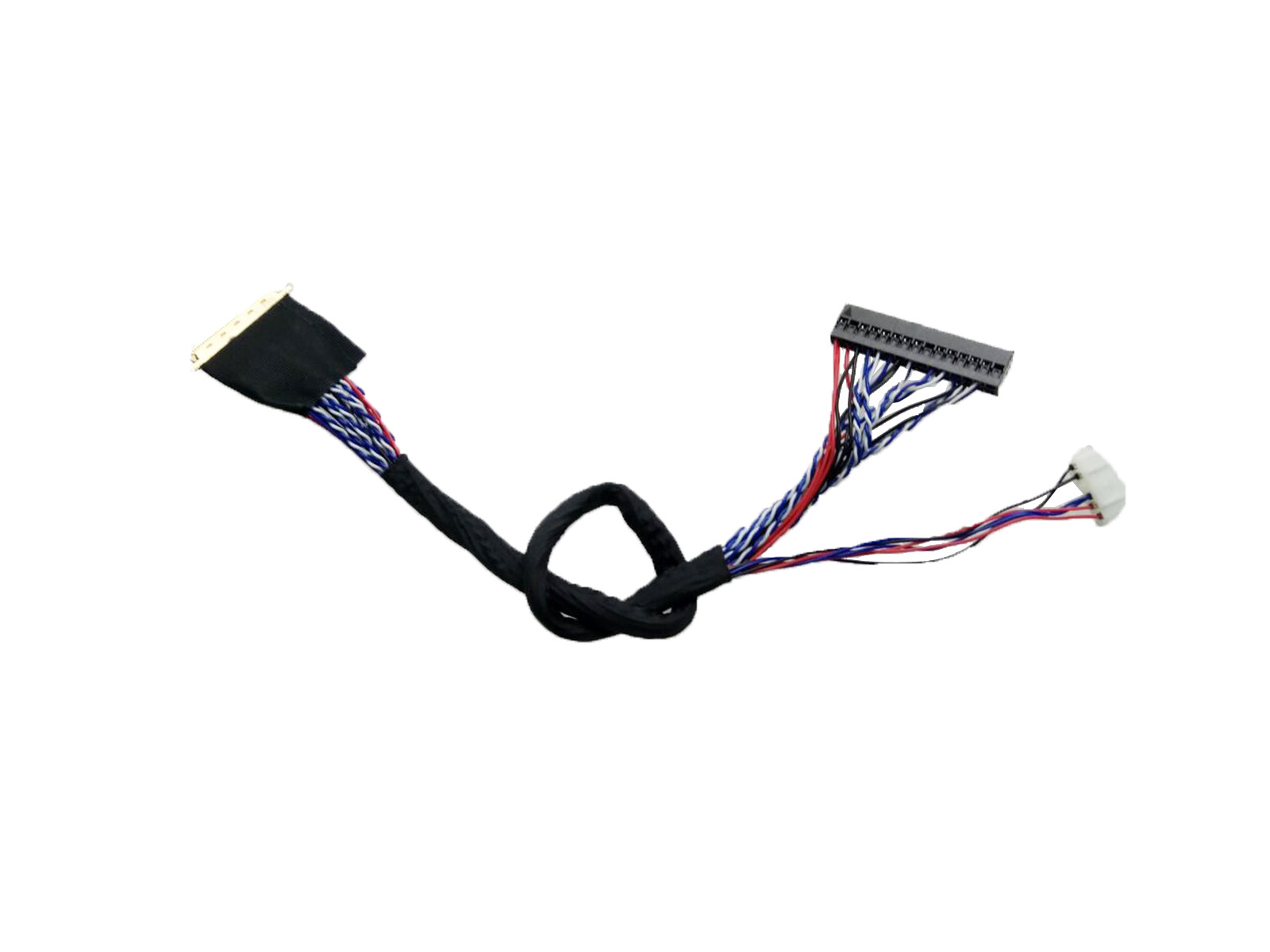

This LED cable has 40 pin on one side (connecting to LED panel) and 2 connectors on the other side (connecting to controller). It is suitable for the following LED panels:
B156HW01 V 5; LP156WF1 (TL) (A1); LP156WF1-TLC1; LP156WF4-SLB1; ect
Connection the LCD Controller Board:
PIN #
SIGNAL NAME
DESCRIPTION
1
VSEL
Power for panel
2
VSEL
Power for panel
3
VSEL
Power for panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
Negative LVDS differential data input
8
RXO0+
Positive LVDS differential data input
9
RXO1-
Negative LVDS differential data input
10
RXO1+
Positive LVDS differential data input
11
RXO2-
Negative LVDS differential data input
12
RXO2+
Positive LVDS differential data input
13
GND
Ground
14
GND
Ground
15
RXOC-
Negative LVDS differential clock input
16
RXOC+
Positive LVDS differential clock input
17
RXO3-
No Connection
18
RXO3+
No Connection
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
Connection the LCD Screen:
PIN #
SIGNAL NAME
DESCRIPTION
1
NC
No Connection
2
VDDIN
Power Supply
3
VDDIN
Power Supply
4
VDC
VDC for EDID
5
NC
No Connection
6
CLK EDID
EDID Clock
7
DATAEDID
EDID Date
8
RXO0-
Negative LVDS differential data input
9
RXO0+
Positive LVDS differential data input
10
GND
11
RXO1-
Negative LVDS differential data input
12
RXO1+
Positive LVDS differential data input
13
GND
14
RXO2-
Negative LVDS differential data input
15
RXO2+
Positive LVDS differential data input
16
GND
Ground
17
RxCLKIN-
LVDS EVEN Clock - Signal
18
RxCLKIN+
LVDS EVEN Clock + Signal
19
NC
No Connection
20
RXE0-
LVDS EVEN 0 - Signal
21
RXE0+
LVDS EVEN 0 + Signal
22
GND
Ground
23
RXE0-
LVDS EVEN 0 - Signal
24
RXE0+
LVDS EVEN 0 + Signal
25
GND
Ground
26
RXE0-
LVDS EVEN 0 - Signal
27
RXE0+
LVDS EVEN 0 + Signal
28
GND
Ground
29
RXEC-
LVDS EVEN Clock - Signal
30
RXEC+
LVDS EVEN Clock + Signal
31
VLED_GND
LED Ground
32
VLED_GND
LED Ground
33
VLED_GND
LED Ground
34
NC
No Connection
35
PWM
System PWM Signal Input
36
LED_EN
LED Enable
37
NC
No Connection
38
VLED
LED Power Supply
39
VLED
LED Power Supply
40
VLED
LED Power Supply
Package included:1pcs 40PS6 LEDcable
