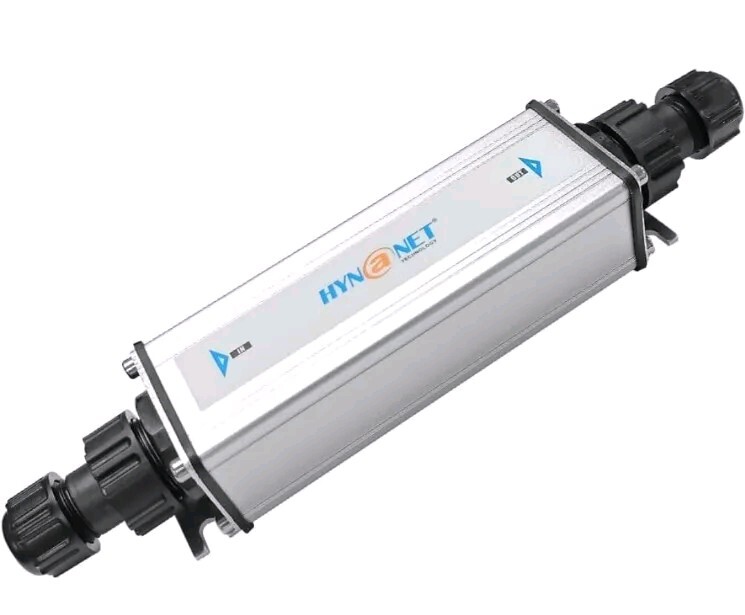

IPX201 30W Industrial Gigabit PoE Extender with Outdoor Waterproof Grade IP65 Extends The Range of PoE and Ethernet an Additional 100 Meters
Details
BrandHYN@NET
Data Transfer Rate1000 Megabytes Per Second
Connector TypeRJ45
Included ComponentsWaterproof POE Extender
Compatible DevicesIP camera, PTZ camera, voip phone
Ethernet and PoE connections both restrict cable distances to 100 meters between
network ports. To overcome this distance limit, network installers can simply
connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.
With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones,
access points) can be installed at greater distances than 100 meters from one
another. By connecting PoE Extender for every extra 100 meters of cable, both
Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater
distances, depending on PDs power required and power source.
PoE Extender does not require any additional power supply and the connected PDs
is fed by an single PoE switch or mid-span, which simplifies installation. PoE
Extender offers two Ethernet ports, which are both configured automatically for link
speed, duplex and crossover and the full-rate network throughput is main-tained.
Product Features:
Compatible with IEEE802.3af and IEEE802.3at
Extends the range of PoE and Ethernet an additional 100 meters
No additional power supply is required
Automatically detects and protects PoE equipments from being damaged by incorrect installation
Full-rate network throughout the whole extended distance
Compact size, Wall-Mountable design
Easy plug-and-play installation
IP65 aluminum case
Operating Ambient Temperature:-40 to 75℃
Package Contents ：
30W waterproof POE extender
waterproof connector
user manual
Features & details
Compatible with IEEE802.3af and IEEE802.3at
No additional power supply is required
10/100/1000 Mbps Full-rate network throughout the whole extended distance.
Automatically detects and protects PoE equipments from being damaged by incorrect installation
Easy plug-and-play installation,Customer can used cat5 cat5e or cat6 cat6a cable to connect this product
