ITX-PFC500W Mini Itx/Flex ATX / 1U 500W Fully Modular Power Supply, Full Range A For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

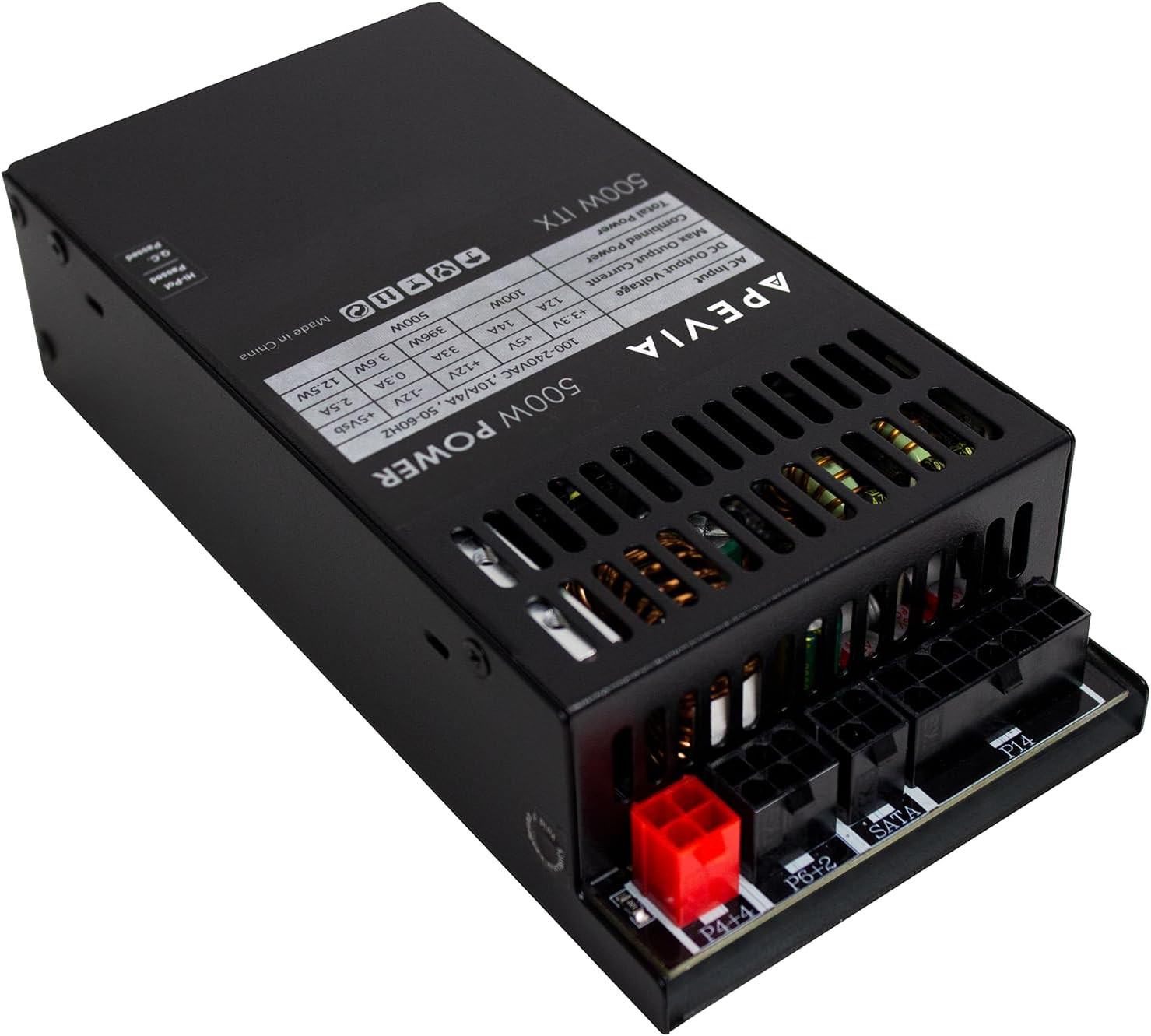

ITX-PFC500W Mini Itx/Flex ATX / 1U 500W Fully Modular Power Supply, Full Range A

Price: US $65.62

ITX-PFC500W Mini Itx/Flex ATX / 1U 500W Fully Modular Power Supply, Full Range Active PFC 90-264V, AC for POS AIO System Desktop Gaming Server Small Form Factor (Flex ITX) Computer PSUDescription Compatible Devices Computer Connector Type Used on Cable EPS, PCI Express Output Wattage 500 Form Factor Mini ITX/Flex ATX Wattage 500 watts Cooling Method Air Power Supply Design Full Modular Connector Quantity 8 Number of Fans 1 Fan Size 40 Millimeters Maximum Input Voltage 265 Volts Minimum Input Voltage 90 Volts System Bus Connector Type 20+4 Pin Model Name ITX-PFC500W Manufacturer Corp Mfr Part Number ITX-PFC500W Model Number ITX-PFC500W Warranty Description 1 Year Replacement Warranty Unit Count 1.0 Count Item Dimensions 6.3 x 2.9 x 1.4 inches Connector Type EPS, PCI Express Item dimensions L x W x H 6.3 x 2.9 x 1.4 inches

Product description

The ITX-PFC500W power supply is a full range active PFC standard ITX unit that will fit in most small ITX form-factor cases. Has enough power output and connectors to run systems up to 500 watts, being used for versatile compact computing applications. Includes various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP).

APEVIA ITX-PFC500W Standard 500W ITX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W.
Fully Modular Power Supply Design
High stability with 5% tolerance of 5V, 3.3V & 12V output
High quality components and housing
Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)
Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan
Power cord
Retail box
1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
2 x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
2 x SATA connector
2 x 4 pin peripheral connector
IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

Fully Modular Power Supply: Standard Mini-ITX / FLEX ATX type. Full Range Active PFC 90-264V. Maximum Power: 500W.
Connectors: 1 x 20+4pin Main Power, 1 x 8pin 12V(P4+4), 2x 6+2 PCIE, 2 x SATA, 2 x 4pin Molex
Cooling: Forced Air Ventilation by 1 x 40mm Double Ball Bearing Fan. Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)
Dimension: 160mm x 73.66mm x 35.5mm (6.3" x 2.9" x 1.4") - L x W x H
Output: +3.3V@12A, +5V@14A, +12V@33A, [email protected], [email protected]
IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
