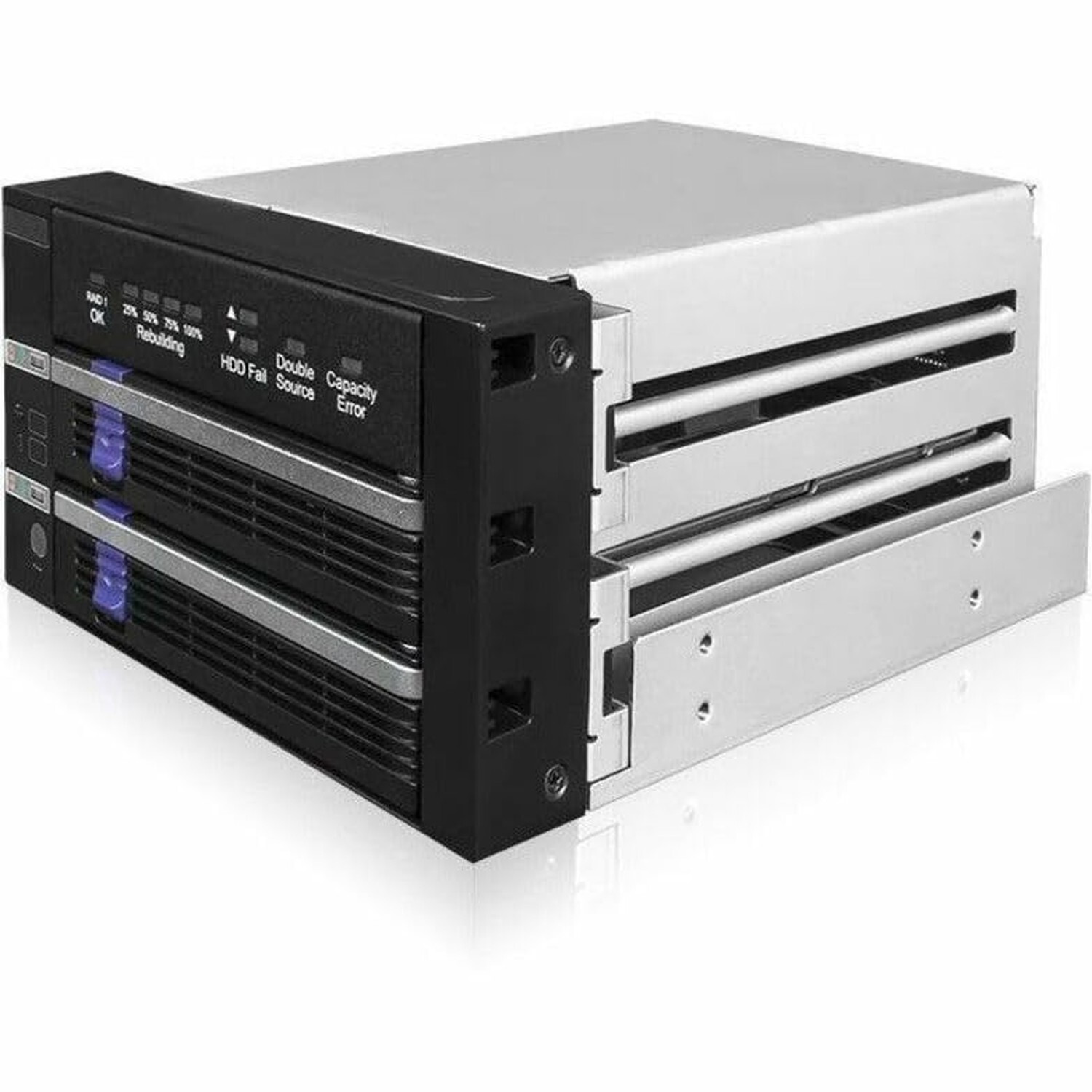

Icy Dock FatCage RAID MB901SPR-B R1 Product Details - Hardware Interface: SATA 6.0 Gb/s
- Brand: ICY DOCK
- Color: Information Not Available
- Hardware Platform: Universal
- Material: Information Not Available
- Item Weight: 2.4 Pounds
- Compatible Devices: Laptop, Desktop
- Max Number of Supported Devices: 2
- Data Transfer Rate: 6 Gigabits Per Second
- Manufacturer: ICY DOCK
- UPC: 884826508779
- Hard Drive: Mechanical Hard Disk,Solid State Drive
- Series: FatCage RAID
- Item model number: MB901SPR-B R1
- Item Weight: 2.35 pounds
- Product Dimensions: 11.5 x 6 x 8.5 inches
- Item Dimensions LxWxH: 11.5 x 6 x 8.5 inches
- Hard Drive Interface: Serial ATA-600
- Date First Available: January 30, 2024
- Supports 2 x 2.5" SSD/HDD or 3.5" SATA hard drive
- Supports RAID 1 and JBOD modes
- Installs into any standard external 2 x 5.25" optical drive bay
- Supports up to 6 Gbps data transfer speed
- Built-In JMS562 hardware RAID chipset
- Easy-to-read RAID status LED indicators for drive power, access, fail and RAID 1 rebuilding process
- Supports SATA and 15-pin power cable with locking latch design
- Anti-Vibration Technology (AVT) - reduces noise and protects against environmental damage
- Active Power Technology (APT) - saves power by shutting the device down when no drive is installed
- Industry-leading 3-year warranty against all defects
The FatCage MB901SPR-B R1 is a dual bay RAID 1 & JBOD enclosure that supports2 x 2.5" SATA SSD/HDD or 3.5" SATA hard drive in a 2 x 5.25" optical drive bayof your computer/workstation/rackmount system. The MB901SPR-B R1 is equippedwith built-in hardware RAID chipset and easy-to-read RAID status LEDindicators, letting you effortlessly mirror the 2.5" or 3.5" drives for dataredundancy and monitoring the RAID status without pairing with a RAID card orusing RAID monitoring software. In addition, the built-in RAID chipset doesall the calculations without using the system resources, which improves thesystem's performance compared to motherboard RAID or software RAID. Finally,the removable drive trays and hot-swap feature let you replace a failed drivewithout shutting down the system, making the MB901SPR-B R1 a perfect driveenclosure for any mission-critical computing system, such as industrialautomation systems and file server systems.Built-In RAID 1 & JBODWith thebuilt-in JMS562 RAID chipset, you can effortlessly add a RAID 1 array to anycomputer system that uses a SATA connection without needing a RAID controllercard or RAID-compatible motherboard. Simply connect the FatCage RAID enclosureto the system's SATA and power ports, insert 2 x 2.5" or 3.5" drive, and theFatCage automatically mirror the drives for data redundancy to prevent dataloss or system downtime caused by a hard drive failure. In addition, the newlyadded JBOD mode allows you to view two individual drives (SATA port multiplierrequired) or erase the RAID table from the drives without using drive-erasingsoftware or MS-DOS commands.Advanced RAID Status LED IndicatorsThe FatCageRAID MB901SPR-B R1 is equipped with easy-to-read RAID status LED indicatorsfor RAID 1 health monitoring during the operation so users can quickly graspthe live RAID status without installing the RAID monitoring software. However,if your application requires using RAID monitoring software, it is availablefor download and installation on Windows/Mac computers.EZ-Tray Removable DriveTraysThe FatCage RAID MB901SPR-B R1 features removable EZ-Tray drive trays,allowing the user to install or remove drives without opening the computercase or powering off the computer. The EZ-Tray supports both 2.5" SSD/HDD and3.5" hard disk drive and is compatible with FatCage and DataCage enclosures,including DataCage MB876SK-B (1x Drive), FatCage MB153SP-B (3x Drive), andMB155SP-B (5x Drive). This allows you to continue using the same drive traysfrom these enclosures and exchange drives between systems without unmountingthe drive from the tray.EMI GroundingMaking sure your drives are properlygrounded is important, especially through many drive swaps. Without it, thereis a high possibility that static shocks could damage your drives and resultin losing important data. Our EMI grounding technology ensures a stable andsafe environment for the SSD/HDD used, which improves reliability.Packed withFeaturesLarge ventilation holes are placed around the enclosure to workalongside your system's cooling system to keep your drives at optimaltemperatures.  |
|
