NOTE: This model is IR302-FQ33-WLAN, which is LTE CAT 1.LTE CAT 1 Maximum upload and download rate: 5Mbps/10Mbps.WLAN Portocal IEE 802.11 b/g/n, rate up to 150Mbps.Application scenarios of LTE CAT 1: wearable devices, smart home appliances, industrial sensors, detection of hydrology and water conservancy, port logistics tracking. Shared payment class.

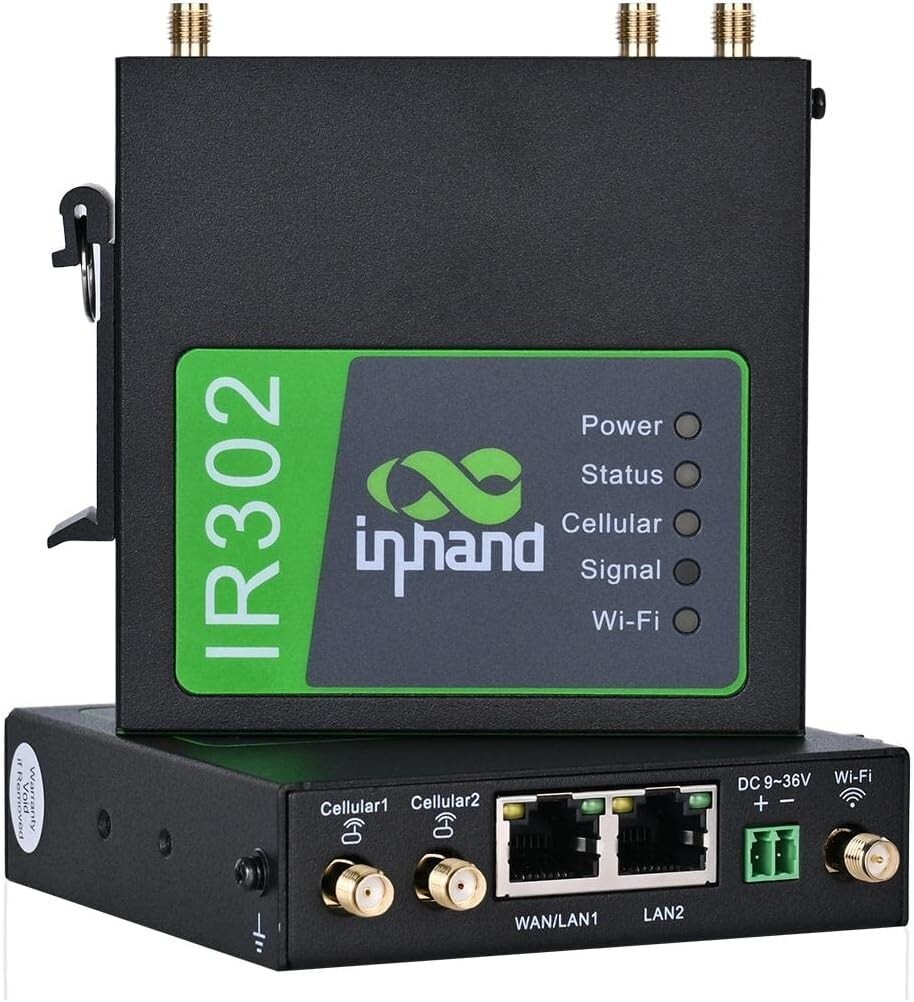

InRouter300- Compact and Easy-to-Use LTE Cellular Router
InHand IR300 seriesis the cost-effective, compact industrial 4G LTE router, equipped with two/five Ethernet ports, dual SIM and an optional Wi-Fi interface. This industrial cellular router can be used in a wide range of industrial and commercial IoT applications with I/O ports, providing you an option of better performance but lower cost.
Product HighlightsFully Industrial Design
Designed with EMC level 2 for IR302, level 3 for IR305, fan-less cooling, and a solid metal shell, IR300 Series can resistvibration and shock, and reduce fault rate effectively.The industrial LTE routeroffers high-quality networking solutions for unattended sites and works well even in harsh environments.
Compatible Carriers
IR300 Series is a plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries. You can rest assured to use our products for business.
Reliable Network Connection
With Dual SIM failover and link backup, IR300 Series provides a reliable network connection for users.
Strong Security Protection
The IR300 Series is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.
Easy-to-Use Web Interface
The user-friendly web interface will help you with the configuration and management of the IR300 Seriesmore efficiently.
Device Manager-Free Remote Centralized Management Platform
IR300 Seriesis compatible with InHand Device Manager, a free centralized cloud management platform allowing users to manage & monitor InHand devices remotely.
InConnect Service-Access to Downstream Devices
IR300 Seriesis compatible with InConnect Service, a cloud-based platform engineers can utilize to access the downstream devices through its secure tunnels.
Product networkCAT 4/1CAT MCAT 6/4/1CAT 6/4/1CAT 6/4/1CAT 4/3Wi-Fi (Optional)2.4GHz (802.11b/g/n)2.4GHz (802.11b/g/n)2.4GHz (802.11b/g/n)2.4GHz (802.11b/g/n)2.4GHz (802.11b/g/n)2.4GHz (802.11b/g/n)VLAN--√√√√Wi-Fi Antenna112222Ethernet Port1*10/100 WAN/LAN
1*10/100 LAN1*10/100 LAN/WAN1*10/100 WAN/LAN
4 *10/100 LAN1*10/100 WAN/LAN
4 *10/100 LAN1*10/100 WAN
4*10/100 LAN1*10/100 WAN
4 *10/100 LANSerial Port-1*RS232/RS485-1*RS232, 1*RS4851*RS232/RS4851*RS232, 1*RS485I/O Port--4*DI or DO--1*DI, 1 relay outputEMC LevelLevel 2Level 2Level 3Level 3Level 3Level 4ApplicationsIR302 ApplicationsWireless Connectivity for ATMReliable Connectivity for EV Charging StationsSecure and Reliable Connectivity for ATMSmart IoT-powered Kiosk SolutionsNetworking Solution for Heat Exchange StationsSmart Traffic ManagementConnectivity of ElevatorsIR305 ApplicationsCellular Backup for Outlets & BranchesMedical Equipment MaintenanceSecondary Water Supply StationsIndustrial Robots Remote ManagementProduct DetailIR302 DetailsCertificationsIR302 CertificationsInRouter 302 SpecificationsHardware SpecificationsSotfware SpecificationsHardware PlatformNetwork ConnectionCPU Platform580MHzNetwork AccessAPN, VPDN, PrivateNetworkRAM128MB DDR2Access AuthenticationCHAP/PAPFlash32MB SPILAN ProtocolARPInterfaceWAN ProtocolPPP, PPPoE, DHCPEthernet PortIR302: 2*10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection
Network TypeGSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/
FDD LTE (Please refer to the Ordering Guide for frequencies.)Network ProtocolI/O (*Optional)Supports 2*IO (DO or DI can be configured)IP ApplicationPing, RouteTrace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, TelnetPower SupplyDC9- -36V, over-current protection,
anti-reverse connection, 2 PIN industrial terminal blockIP RoutingStatic routingReset ButtonPinhole reset buttonNATSupports network address translationSIM CardDual drawer-type SIM card slots. 2FF SIMSecurityWi-Fi (Optional)IEEE 802.1 1b/g/n, 150MbpsNetwork SecurityStateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping probe packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC bindingAntenna Connector3G/4G: SMA x 1
Wi-Fi: RP-SMA x 1
Note: North America models (FQ38, FQ33) have 2 x SMA 4G antennas.
Data SecuritySupports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2),
OpenVPN protocols
Supports CA digital certificateGround TerminalSupportsReliabilityMechanical SpecsHot BackupVRRP hot backupDimensions (mm)90X90x25mmLink DetectionSends heartbeat packets to detect, auto redials when disconnectedWeight (g)240gDual SIM FailoverSupports dual SIM failoverInstallation MethodPanel mounting, rail mountingEmbedded WatchdogDevice runs self-detection, auto recovers from malfunctionsProtection RatingIP30WLAN (optional)HousingMetalProtocolIEEE 802.11b/g/nCoolingFanlessRateUp to 150MbpsPower RateModeAP, Client and WDS modesWorking Power100-120mA@12VSecurityOpen system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryptionStandby meters by line of sight (Actual transmission distance depends on environment of the site.)Peak
[email protected] ManagementWi-Fi Transmit PowerQoS ManagementBandwidth limit, IP speed limitTransmit Power802.11b: 16dBm +/-2dBm (11Mbps)
802.11g: 16dBm +/-2dBm (54Mbps)
[email protected]: 16dBm +/-2dBm (HT20 MCS7)
[email protected]: 16dBm +/-2dBm (HT40 MCS7)ConfigurationTelnet, web, ssh, and consoleAmbient EnvironmentUpgrade MethodWeb, Device ManagerStorage Temperature-40 ~ 85℃Local system logs, remote logs, and serial export of logs.
Power down saving of essential logs.Operating Temperature-20 ~ 70℃SMS FunctionsStatus query,
configuration, restartAmbient Humidity5 ~ 95% / SMS InHand DeviceManager, batch managementLEDPower, Status, Cellular, Wi-Fi, cellular SignalSNMPSNMP v1/v2c/v3, support SNMP TRAPTraffic
ManagementSupports data traffic threshold, traffic statistics and traffic alarmAlarmsSystem restart alarm, LAN port online/offline alarm, data traffic
alarm, SIM card failure alarm, etc.Maintenance ToolsPing, route tracking, network speed testStatus QuerySystem status, modem status, network connection status, and routing status
