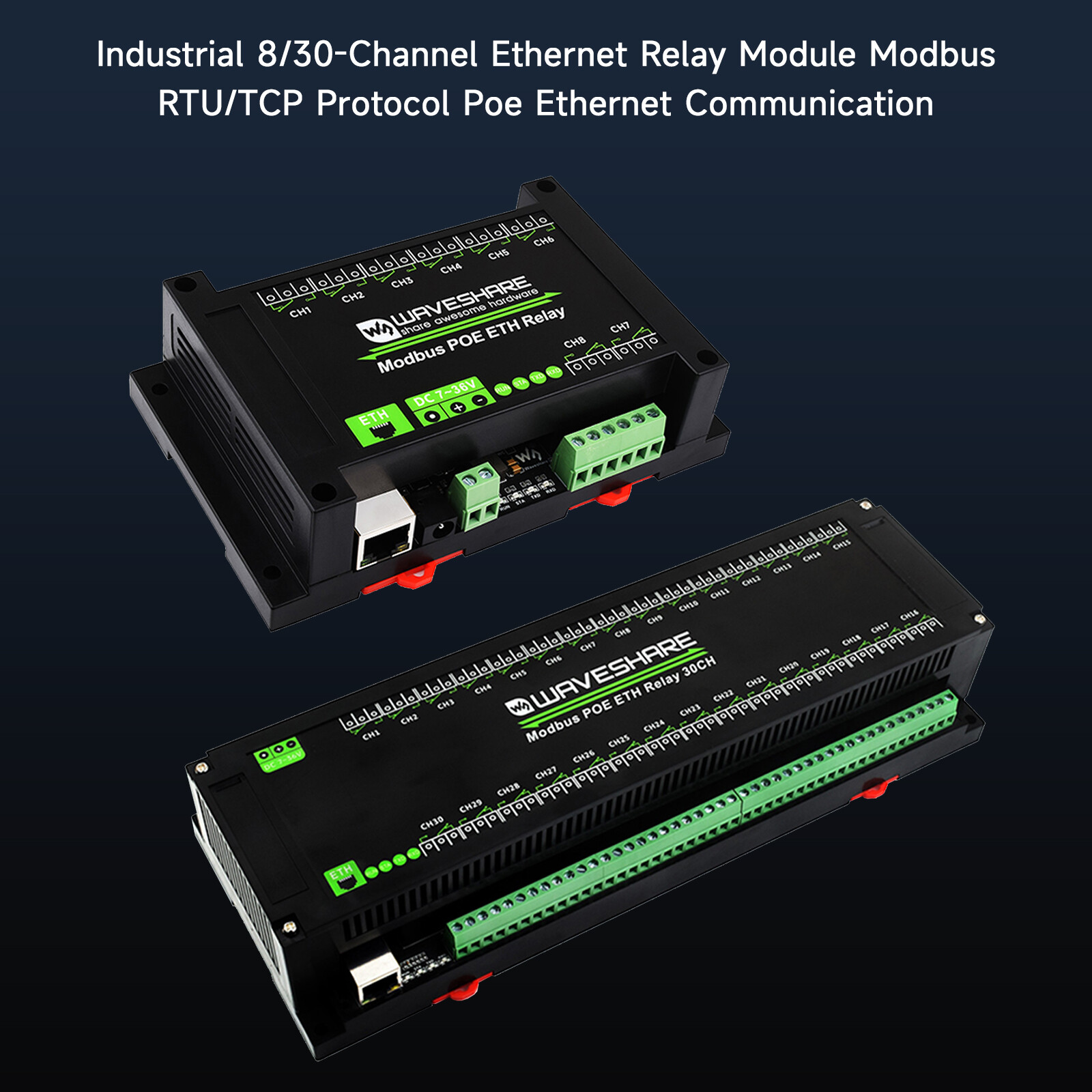

Industrial 8/30-Channel Ethernet Relay Module Modbus RTU/TCP Protocol Poe Ethernet Communication
8-Way Ethernet Relay Module:
Description:
This product is an 8-way relay module controlled by Ethernet interface specially designed for industrial environment applications. It adopts Modbus RTU/Modbus TCP protocol, supports PoE network port power supply, and ABS rail housing design. This product is easy to operate, with the characteristics of fast communication speed, stability, reliability and safety, and can be applied to various industrial control equipment or applications with high communication requirements.
Features:
It has flash-on and flash-off functions, and can control the relay to open for a period of time and automatically close through instructions
Support DC 7~36V wide voltage power supply, support PoE Ethernet power supply
Support control of relays through MQTT protocol, and provide Alibaba Cloud MQTT application routines
Onboard optical coupler isolation to avoid interference from relay high-voltage circuit
Onboard anti-reverse connection circuit to avoid reverse connection of positive and negative poles and burnout of circuit
Use high-quality relays, allowing access to loads: ≤10A 250V AC or ≤10A 30V DC
Rail-type ABS protective housing, easy to install and use, safer with housing
External 4 LED indicators and network port indicators, you can easily view the MCU status and signal receiving and sending supply: PoE network port, DC 5.5*2.1 power interface or terminal block (7~36V)
Communication interface: PoE network port, support IEEE 802.3af standard
Number of relays: 8
Contact type: one normally open, one normally closed
Contact load: ≤10A 250V AC or ≤10A 30V DC
Modbus protocol: Modbus RTU protocol or Modbus TCP protocol
Indicator:
RUN: Network port operation indicator, flashes in a 2-second cycle after the chip works normally
STA: MCU indicator, flashes when the MCU works normally
TXD: Send indicator, the light is on when sending data
RXD: Receive indicator, the light is on when receiving data
30-Way Ethernet Relay Module:
Description:
This product is an industrial 30-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.
The Modbus POE ETH Relay 30CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication flash-on,flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
Supports DC 7~36V wide range power input and PoE power supply
Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
Onboard Optocoupler isolation, prevent the relay from being interfered by high- voltage circuit
Adopts dedicated relay driver chip, with built-in flyback diode rotection, for stronger and more stable driving ability
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
High quality relay, contact rating: ≤10A 250VAC/30VDC
Rail-mounted ABS plastic enclosure, easy to install, safe to use
4 LEDs and Network indicators for indicating the MCU status and signal transceiving supply: PoE network port, DC 5.5*2.1 power interface or terminal block (7~36V)
Communication interface: PoE network port, support IEEE 802.3af standard
Number of relays: 8
Contact type: one normally open, one normally closed
Contact load: ≤10A 250V AC or ≤10A 30V DC
Modbus protocol: Modbus RTU protocol or Modbus TCP protocol
Indicator:
RUN: Network port operation indicator, flashes in a 2-second cycle after the chip works normally
STA: MCU indicator, flashes when the MCU works normally
TXD: Send indicator, the light is on when sending data
RXD: Receive indicator, the light is on when receiving data
Applications:
Industrial Control
Valve control, pump station control, unattended industrial control system
Smart Home
Controlling appliances like air condi-tioner, access control, purifier, water heater, etc.
Smart Agriculture
Controlling door curtain motor, air blower, etc.
Breeding & Farming
Controlling ventilator, lighting, water supply, feeding system, etc.
Specifications:
RUN: Ethernet port indicator, blinking when Ethernet port normally working
STA MCU indicator, blinking when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data
ETHERNET PORT GREEN INDICATOR: Lights up when the connection is established
ETHERNET PORT YELLOW INDICATOR: Data activity indicator, blinking when transmitting data
Package Include:
Option1:
1x 8-Way Ethernet Relay Module
Option2:
1x 30-Way Ethernet Relay Module
