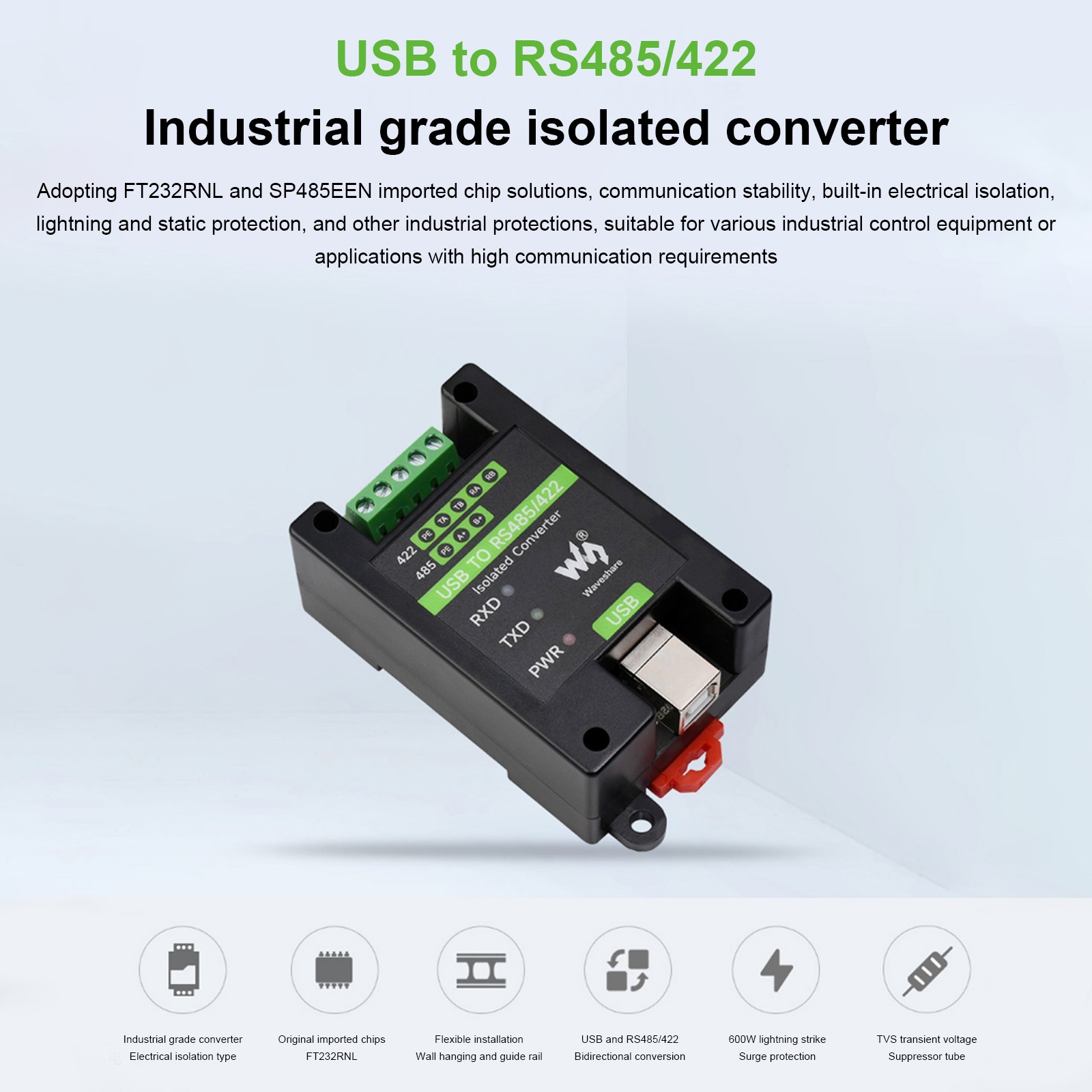

Industrial-grade isolated converter USB to RS485/RS422 multiple protection circuits support wall-mounted rails
Features:
Using the original imported FT232RNL+SP485EEN chip solution, high-speed communication is stable, reliable and has good compatibility.
On-board integrated power isolation can provide stable isolation voltage, and the isolation terminal does not need additional power supply. Onboard integrated digital isolation can perform signal isolation, with high reliability, strong anti-interference and low power consumption. Onboard TVS (transient voltage suppressor) can effectively suppress surge voltages and transient peak voltages in the circuit, preventing Lightning anti-static
On-board self-restoring fuses and protection diodes ensure stable current and voltage output, prevent overcurrent and overvoltage, and improve impact resistance.
Onboard 15KVESD isolation protection and 600W lightning surge protection
The 120R terminal resistor of the onboard RS485/RS422 interface is enabled by default and can be modified through jumper cap settings.
3 external LED indicators for easy viewing of power supply and signal transceiver status
Industrial rail-type ABS environmentally friendly shell, compact in size, easy to install, and type: Industrial grade isolated USB to RS485/422 converter
Communication rate: FT232RNL 300bps~3Mbps
Host interface: USB
Device interface: RS485/422
USB interface:
Working level: 5V
Interface form: USB-B type interface
Interface protection: 200mA resettable fuse, ESD electrostatic protection
Transmission distance: about 5 meters
RS485/422 interface:
Interface form: terminal block
Interface pins: A+, B-, PE
Direction control: hardware automatically determines and controls the direction of data transmission
Interface protection: Provides 600W lightning protection, surge and 15KV electrostatic protection (onboard 120R balanced resistor)
Transmission distance: about 1200 meters (at low speed)
Transmission mode: point-to-many (up to 32 nodes, it is recommended to add a repeater for more than 16 nodes)
Indicator light:
PWR: power indicator light, connected to USB, red light will be on when voltage is detected
TXD: Transmit indicator light, the green light turns on when data is sent from the USB port.
RXD: receiving indicator light, blue light is on when data is sent back from the device interface
Usage environment:
Temperature range: -15℃~70℃
Humidity range: 5%RH~95%RH
Operating system: Mac, Linux, AndroidWinCE rail-type ABS environmental protection shell, suitable for 35mm DIN rail
Dimensions: 81.9x54.0x32.0mm
Package Included:
1x USB TO RS485/422
1x USB cable typeA male port to typeB male port about 1.2 meters
1x screwdriver
