Description

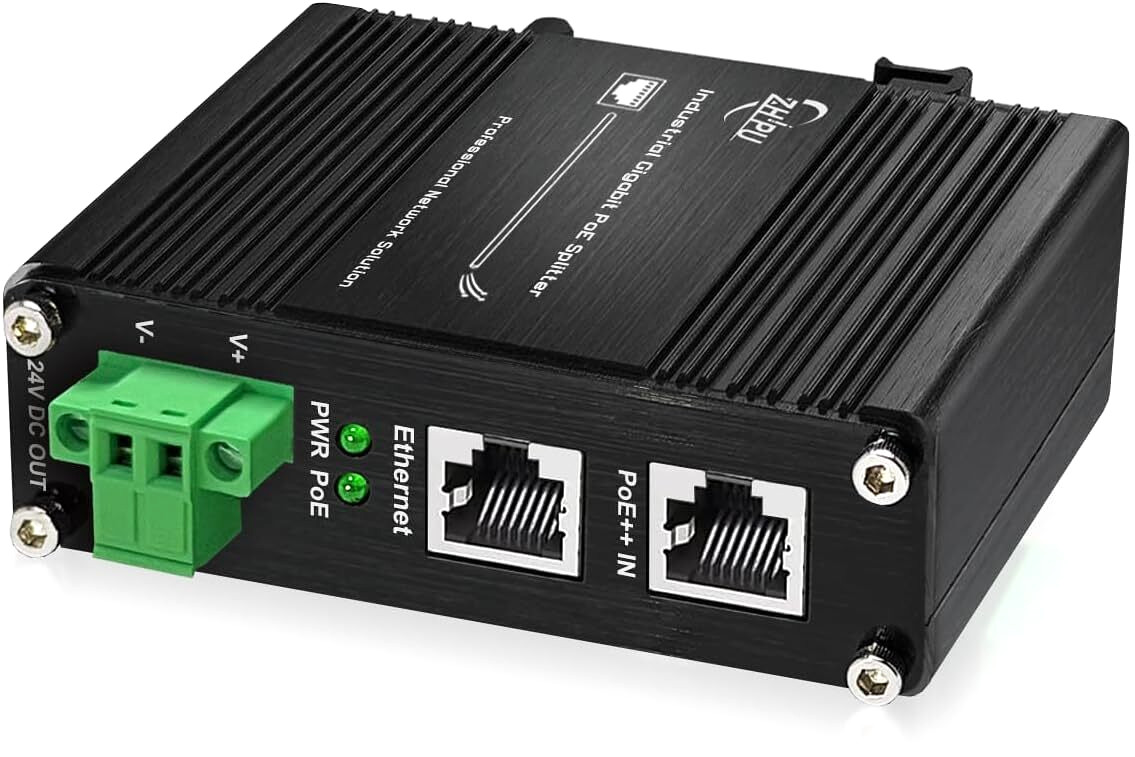

The Industrial Hardened Gigabit PoE+ Splitter provides a reliable solution for separating Power over Ethernet (PoE) signals into independent 24V DC power output and Gigabit Ethernet data, allowing non-PoE industrial devices to operate through existing network infrastructure. Designed for demanding environments, this splitter supports IEEE 802.3af and IEEE 802.3bt standards with up to 95W PoE input power, delivering efficient and stable power conversion.
Built with a durable industrial-grade aluminum alloy housing, this PoE splitter offers excellent heat dissipation and long-term reliability. Its flexible DIN-Rail and wall-mount installation options make it ideal for factory automation systems, surveillance networks, outdoor cabinets, and industrial control applications.
With advanced protection features including 1500V electrical isolation, short circuit protection, and overvoltage protection, along with a wide operating temperature range of -40°C to 80°C, this hardened PoE splitter ensures dependable performance in harsh industrial and commercial environments.
Key Features
- Gigabit PoE Splitting Technology separates PoE power and Ethernet data for flexible network deployment.
- IEEE 802.3af / 802.3bt Compatible supports modern PoE switches and injectors for reliable power delivery.
- Up to 95W PoE Input Power provides sufficient power conversion for industrial and commercial devices.
- 24V DC Power Output enables operation of non-PoE equipment using existing Ethernet infrastructure.
- Gigabit Ethernet Performance maintains high-speed 10/100/1000Base-T network connectivity.
- Plug-and-Play Installation requires no software configuration or additional setup.
- Industrial-Grade Aluminum Housing improves durability, protection, and heat dissipation.
- Multiple Mounting Options support both DIN-Rail mounting and wall mounting for flexible installation.
- Wide Operating Temperature Range functions reliably from -40°C to 80°C.
- IP40 Protection Rating provides dust resistance for industrial cabinets and protected installations.
- Enhanced Safety Protection includes:
- 1500V High-Voltage Isolation
- Short Circuit Protection
- Overvoltage Protection
Typical Applications
- Industrial Automation Systems
- Factory Floor Networking
- IP Surveillance Camera Systems
- 24V DC Industrial Devices
- Transportation Network Systems
- Outdoor Network Cabinets
- Remote Network Equipment Deployment
- Industrial Control Panels
Technical Specifications
- Product Type: Industrial Gigabit PoE+ Splitter
- PoE Input Port: 1 × RJ-45 10/100/1000Base-T (PoE + Data)
- Data Output Port: 1 × RJ-45 10/100/1000Base-T (Data Only)
- PoE Standard: IEEE 802.3af / IEEE 802.3bt
- Maximum PoE Input Power: 95W
- Output Voltage: 24V DC
- Network Speed: Gigabit Ethernet (10/100/1000Mbps)
- High Voltage Isolation: 1500V
- Protection Features: Short Circuit Protection, Overvoltage Protection
- Operating Temperature: -40°C to 80°C
- Housing Material: Industrial-Grade Aluminum Alloy
- Mounting Options: DIN-Rail Mount / Wall Mount
- Protection Rating: IP40
- Installation Type: Plug-and-Play
- Configuration Required: No
- Application Environment: Industrial, Commercial, Factory, Outdoor Network Deployments
