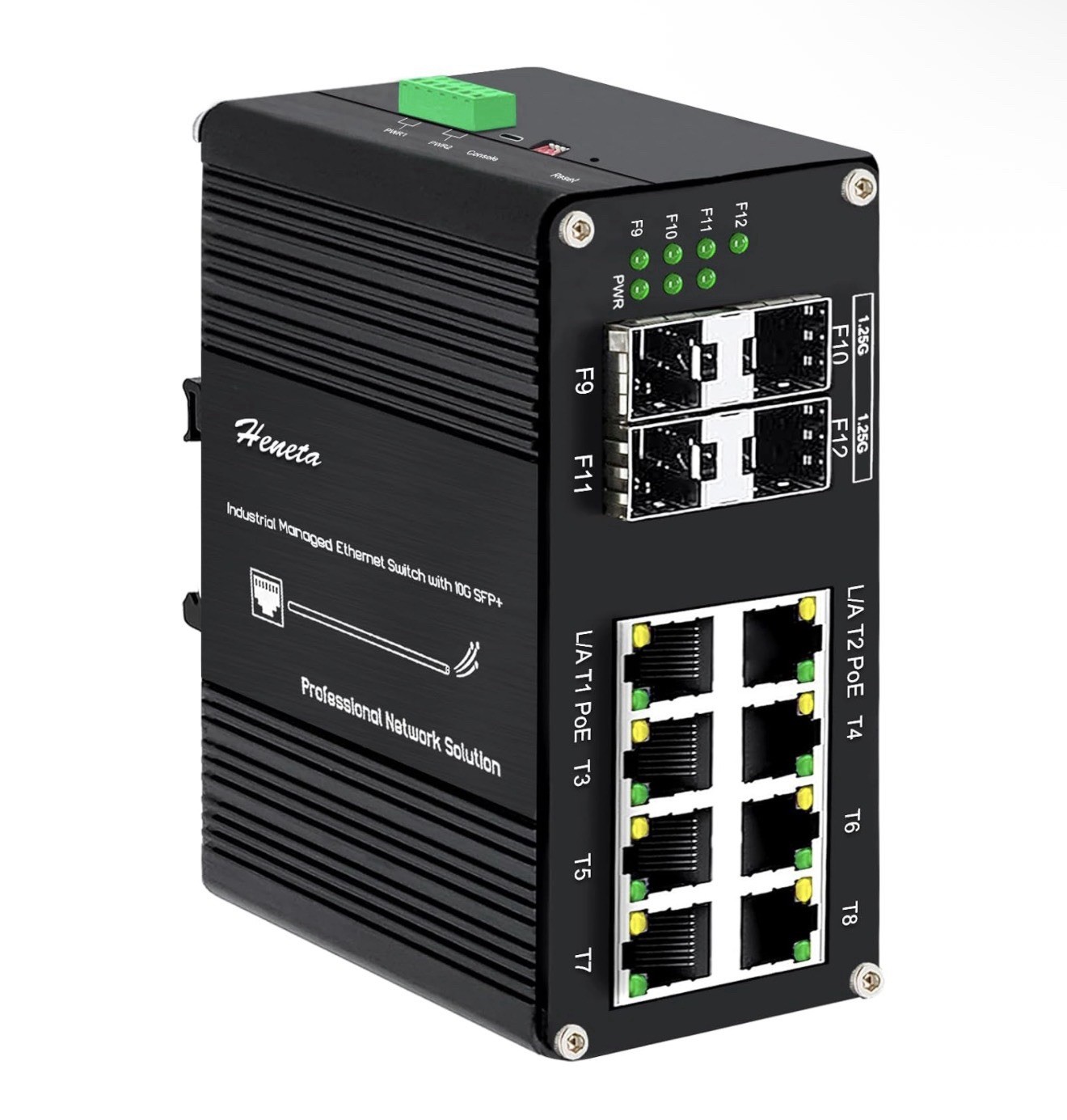

【Port Configuration】Complete Gigabit Hardware Interfaces with USB-C Fast Debug This L2+ industrial switch equips 8×IEEE802.3af/at gigabit PoE RJ45 ports, 4×1000Base-X SFP fiber slots, dedicated USB-C management port (no RS232 serial cable required), 6-pin redundant power terminal block and 4-digit DIP switch. RJ45 ports support auto-negotiation & Auto MDI/MDIX; SFP slots work with 1-core/2-core single/multi-mode fiber for long-distance networking.
【240W Total PoE Budget】Per-Port 30W PoE+ Output for High-Power Devices Delivers up to 30W PoE/PoE+ power per RJ45 port, with a maximum 240W overall PoE power budget to run multiple IP cameras and wireless APs simultaneously. Built-in DIP switch enables one-click anti-ring protection, 250m extended PoE transmission and PoE one-key reset, no complex web configuration needed. It supports 24Gbps backplane bandwidth and 9K jumbo frames.
【Redundant Dual Power & 6KV Industrial Lightning Surge Protection】24/7 Uninterrupted Operation Comes with dual 48~57VDC redundant power input to avoid network outage from single power failure. Integrated overload auto-reset, reverse polarity defense and 6KV lightning surge protection complying with IEC61000 EMC standards, effectively safeguarding equipment from thunderstorms and unstable voltage in outdoor sites.
【IP40 Industrial-Grade Enclosure for Extreme Wide Temperature Scenarios】 Compact solid IP40 dustproof aluminum housing supports standard DIN-Rail mounting, operating reliably at -40°C to 80°C (-40°F~176°F). Adopts IEEE 802.3az EEE energy-saving tech, with over 200,000 hours MTBF, 12M-bit packet buffer and 8K MAC address table to maintain stable HD video streaming all day long.
【Full L2+ Managed Functions & Authorized Industrial Certifications】Enterprise Network Control Rich L2+ professional protocols included: STP/RSTP/MSTP/ERPSv2 ring redundancy, LACP link aggregation, IGMP Snooping, 4K 802.1Q & Q-in-Q VLAN, 802.1p QoS and L2-L4 ACL. Multi management modes: WEB, SNMP, LLDP, IPv4/IPv6 DHCP and Cloud/MQTT remote access. Certified CE, FCC, RoHS & ISO9001, ideal for remote IP camera, wireless AP, factory automation and smart city surveillance networks
