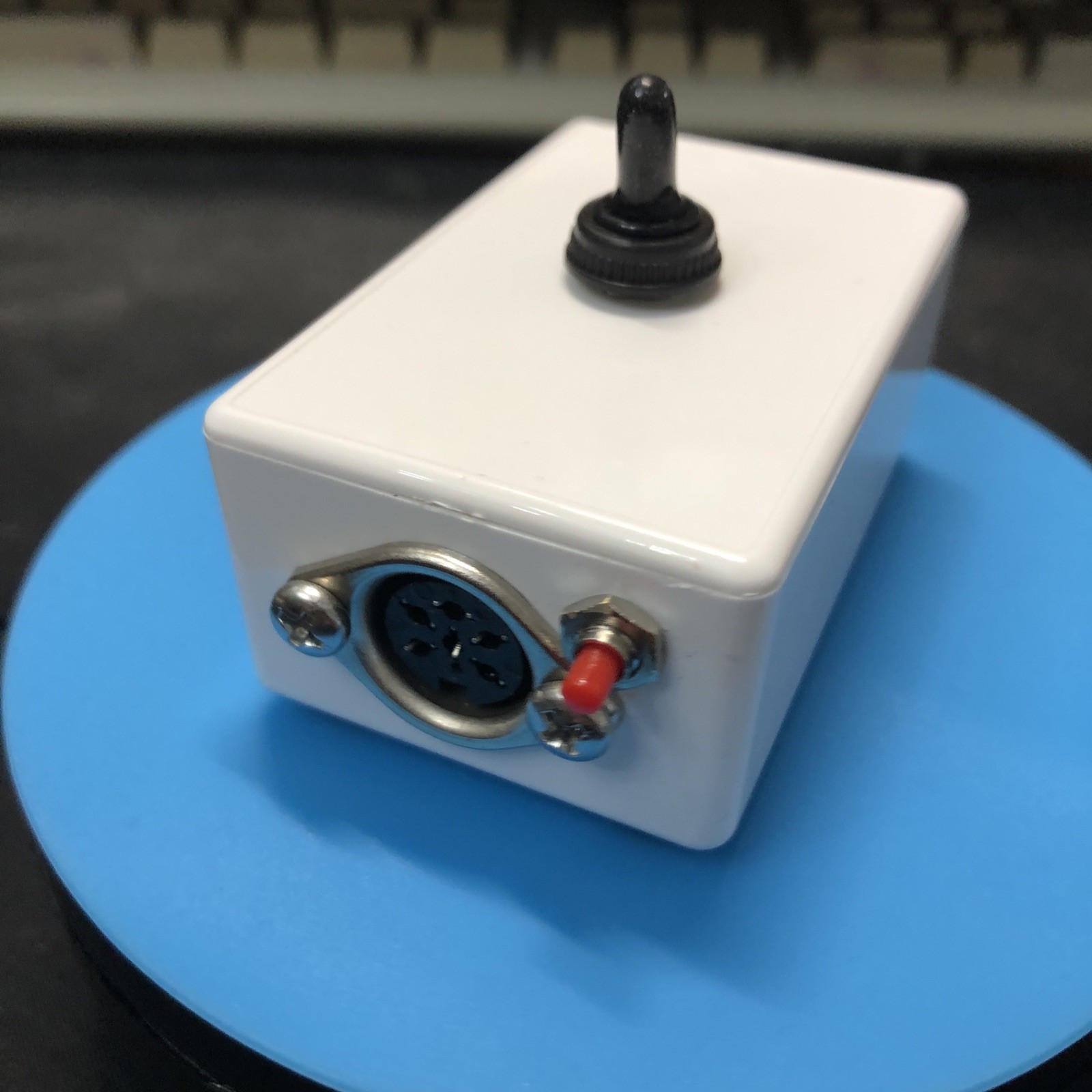

The Acutis Data IEC Kill Switch provides a convenient way to use the Commodore 64 Ultimate's built-in virtual IEC drive while keeping a real Commodore disk drive or other physical IEC device connected.
In some setups, a physical IEC device may appear to interfere with the C64 Ultimate's ability to see or use its virtual drives, even when that physical device is not actively being used. The exact cause is not always obvious, but the connected device may still be affecting the IEC bus in some way, acting like an electrical load or sink on the line.
This inline adapter adds a physical switch that can isolate the connected IEC device when it is not needed. It is a simple, practical way to reduce possible bus interference without repeatedly unplugging and reconnecting IEC cables.
Need to control more than one IEC device? Check out the Dual Kill Switch for Commodore C64 Ultimate C64 C128 X16 Physical IEC Drives, the “big brother” of this inline version. It supports twice the devices, with full reset control and dual kill-switch functionality.
Flip the switch one way to use the connected physical IEC device.
Flip the switch the other way to isolate that device and allow the C64 Ultimate's virtual drive to operate without that connected device affecting the bus.
Default Configuration
- The connected IEC device is isolated from the bus when the switch is turned off.
- The SRQ line remains connected.
- The switch is assembled in the configuration shown in the listing photos unless customization is requested.
Available Customization Options
The following options are available at no additional charge:
- Switch location
- Reset-line connectivity: isolated with the device or left connected
- SRQ-line connectivity: always connected by default and recommended for most users
- A larger plastic enclosure similar to the one used for our other IEC switches
Please message me after purchase if you would like a customized configuration. Some requests may not be possible due to the physical limitations of the enclosure.
Looking for something else more elaborate? Message me if you would like a similar adapter with additional ports or switches. I also build fully customized one-off solutions. I am happy to work through a design and give you a fair custom quote.
SRQ is left connected by default because some modern IEC-compatible devices may use it for additional functionality.
Quality and Fulfillment
Each switch is assembled with the same quality and attention to detail as our other IEC switch options.
These switches are made to order. After purchase, I will provide an estimated shipping date. Occasional delays may occur if supplies need to be reordered.
Every item is fully tested before shipment and guaranteed to work. If there is a problem, you will receive a replacement or a full refund.
Compatibility
Although designed with the C64 Ultimate in mind, this switch can also be used with traditional Commodore serial IEC equipment and modern IEC-compatible accessories, including:
- Commodore VIC-20
- Commodore 64
- Commodore 64c
- Commodore 64 Ultimate
- Commodore 64 Ultimate Compact
- Commodore 128
- Commander X16
- Commodore disk drives
- Commodore printers
- Modern IEC-compatible accessories
