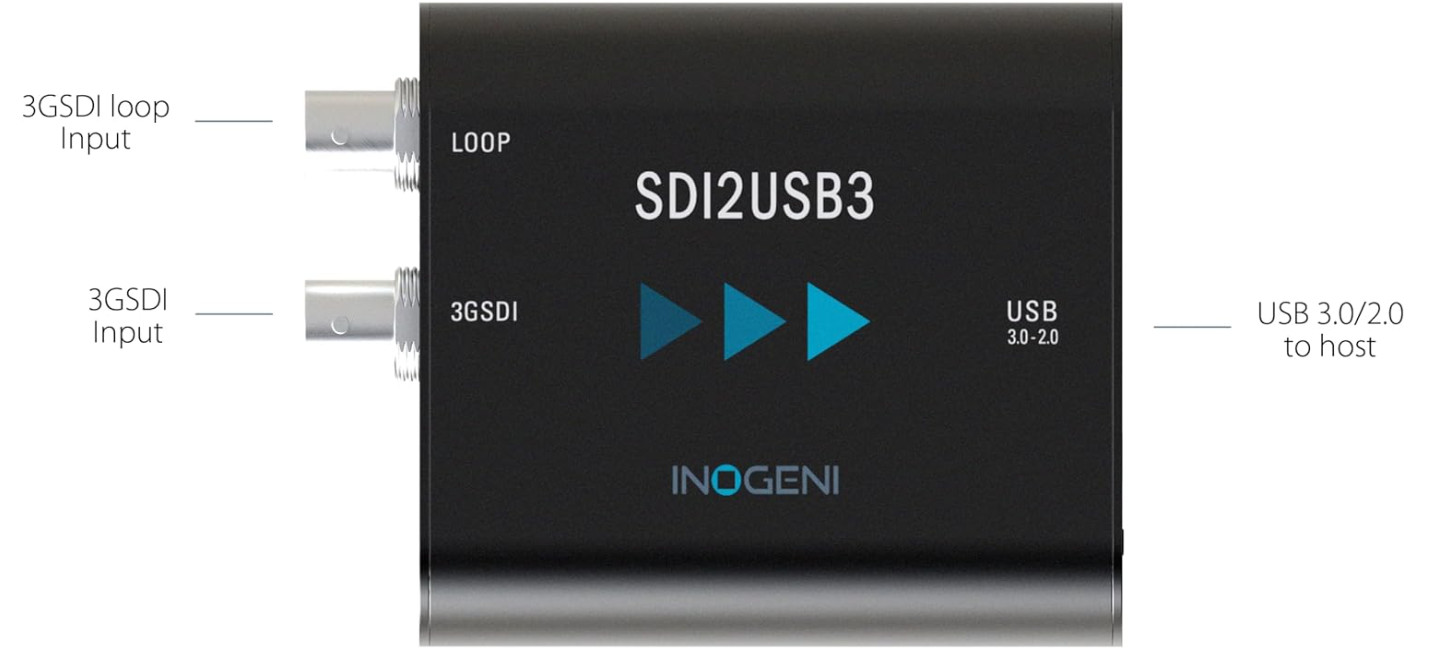

INOGENI'sSDI2USB3video converter enables 3G-SDI cameras to connect with computers, laptops or CODECs-without complicated setups.

The SDI2USB3 professional video converter features a 3G-SDI input with active loop output and supports SD and HDTV video formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.

UVC-compliant, it will work with all DirectShow compatible software. The SDI2USB3 video converter supports 1080p resolution up to 60 fps.

• Features:

  • 3GSDI Professional Video Capture to USB 3.0
  • Highly Stable Signal
  • Active Loop Output Connector
  • Designed and manufactured in Canada

  • Specifications:

    Video Input
    • Connector:
      -1xBNC (3GSDI input)
      - 1x BNC (3GSDI active loop out)
    • Video Resolutions:
      - 3G: 1080p60/59.94/50 (Level A, B-Dual Link)
      - HD: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50/30/29.97/25/ 24/23.98
      - SD: NTSC/PAL
    • Jitter (alignment): HD/SD: <0.2 UI 3 Gb/s: <0.4 UI
    • Cable Length:
      - 150m (492ft) at 1.485 Gb/s
      - 120m (393ft) at 2.970 Gb/s
    • Frame Rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
    • Color Space: YCbCr, 4:2:2
    • Sampling Rate: 148.5/148.35 MHz
    • Emdedded Audio: Ch 1&2 48kHz LPCM

      Video Output
    • Connector:1xBNC (3GSDI active loop out)
    • Color Space: YCbCr 4:2:2
    • USB - Connector:1xUSB 3.0 Type-B
    • USB - CODECs:
      - YUY2 4:2:2 8-bit for USB 3.0
      - MJPEG for USB 2.0
    • USB Video Scaler: Automatic hardware based
    • USB Color Space Conversion: Automatic hardware based
    • USB Sampling Conversion: Automatic hardware based
    • USB Frame Rate Conversion: Automatic hardware based

      Audio
    • Analog Audio I/O: 2-channel LPCM audio from SDI
    • Audio Input Connector: Ch 1&2 48kHz LPCM from SDI

      Compatibility
    • Operating System:
      - Windows 7 and above (32/64bit)
      - macOS 10.10 and above
      - Linux (kernel v2638)
    • Minimum Host Requirements:
      - USB 2.0 port (INOGENI recommends USB3.0 for uncompressed video)
      - 4GB RAM Intel
      - Core i5 or equivalent
      - Graphic cards with dedicated memory
    • Motherboards: Compatible with all Intel, Renesas, ASMedia, and Fresco Logic motherboards
    • Supported Cameras: Cameras and camcorders with a SDI output
    • Software Compatibility: UVC-compliant, it runs with all software compatible with DirectShow, AVFoundation and V4L2. Teams, Zoom, Webex, Google Meet, etc.

      Physical
    • Dimensions (WxLxH): 3.2" x 2.9" x 0.75" (8.1cm x 7.4cm x 1.9cm)
    • Power Supply: Powered by USB (5V/580mA)
    • Weight: 0.30lbs (139g)
    • Operating Temperature: 32°F - 113°F (0°C - 45°C)
    • Storage Temperature: -40°F - 221°F (-40°C - 105°C)
    • Relative Humidity: 0% - 90% non-condensing

      Certifications
    • Certifications: FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI RoHS, BSMI, CB, KC, MSIP
    • TAA-compliant: Yes

  • Item Includes:

    • 1xINOGENI SDI2USB3 3G-SDI TO USB 3.0 Video Converter
    • 1x3 ft. USB 3.0 cable (Type-A to Type-B)
