Features1. WiFi 6 Dual‑Band IEEE 802.11ax WiFi 6. 2.4GHz for strong wall‑penetration & long‑range smart devices; 5GHz for 4K streaming, meetings and downloads. OFDMA & MU‑MIMO lower latency and avoid speed drops with multiple connected devices2. Bluetooth 5.2 Faster pairing, wider range and low audio latency. Simultaneously connect headphones, keyboards, mice and gamepads for a tidy cable‑free desktop3. Desktop Installation KitAll‑in‑one accessories: dual high‑gain external antennas, IPEX extension cables, full‑height & low‑profile brackets, plastic retainer bracket. No extra parts to buy4. M.2 NGFF Key A/E InterfaceStandard 2230 Key A/E for most desktop motherboards. Direct motherboard connection offers more stable performance than USB WiFi adapters, free of bandwidth bottlenecks
Product Features1. WiFi 6 Dual-Band High-Speed Transmission
Compliant with IEEE 802.11ax WiFi 6 standard, it operates on two independent frequency bands to adapt to different usage scenarios:
- 2.4GHz Band: Excellent wall penetration and wide coverage, suitable for web browsing, smart device connection and long-distance use
- 5GHz Band: High bandwidth and low interference, perfect for 4K video streaming, online meetings and daily file download
Advanced OFDMA and MU-MIMO technology optimizes network efficiency under multi-device connections, reducing latency and speed drops when multiple devices are online at the same time.
2. Bluetooth 5.2 Reliable Peripheral Connection
Built-in Bluetooth 5.2 module provides faster pairing speed, wider signal range and lower audio latency compared to older Bluetooth versions. It supports simultaneous connection of multiple Bluetooth peripherals such as headphones, mechanical keyboards, gaming mice and gamepads, helping you build a clean cable-free desktop setup.
3. Complete Desktop Installation Hardware
This kit includes all hardware required for desktop installation, so you do not need to purchase extra accessories separately:
- Dual high-gain external antennas pre-mounted on a rear PCI bracket for optimal signal reception
- IPEX extension cables to connect the M.2 card to the bracket antennas
- Both full-height and low-profile mounting brackets to fit standard ATX tower cases and compact rackmount chassis
- Plastic Retainer Bracket
4. Standard M.2 NGFF Key A/E Interface
Standard M.2 2230 Key A/E form factor fits the dedicated M.2 wireless slot on most consumer and commercial desktop motherboards. Direct motherboard connection delivers more stable and consistent performance than USB WiFi adapters, with no bandwidth bottleneck or signal interference.
Product Specifications
Controller Chip: Intel AX200NGW
WiFi Standard: WiFi 6 (IEEE 802.11ax), backward compatible with WiFi 5 / WiFi 4
Frequency Bands: Dual Band 2.4GHz + 5GHz
Max Total Throughput: 2974Mbps (theoretical dual-band combined value)
Bluetooth Version: Bluetooth 5.2
Host Interface: M.2 NGFF 2230 Key A/E
Antenna Setup: 2 × external high-gain antennas with PCI bracket + IPEX extension cables
Mounting Brackets: Full-height bracket + Low-profile bracket
Security Encryption: WPA3, WPA2, WPA
Supported OS: Windows 10 64-bit, Windows 11 64-bit

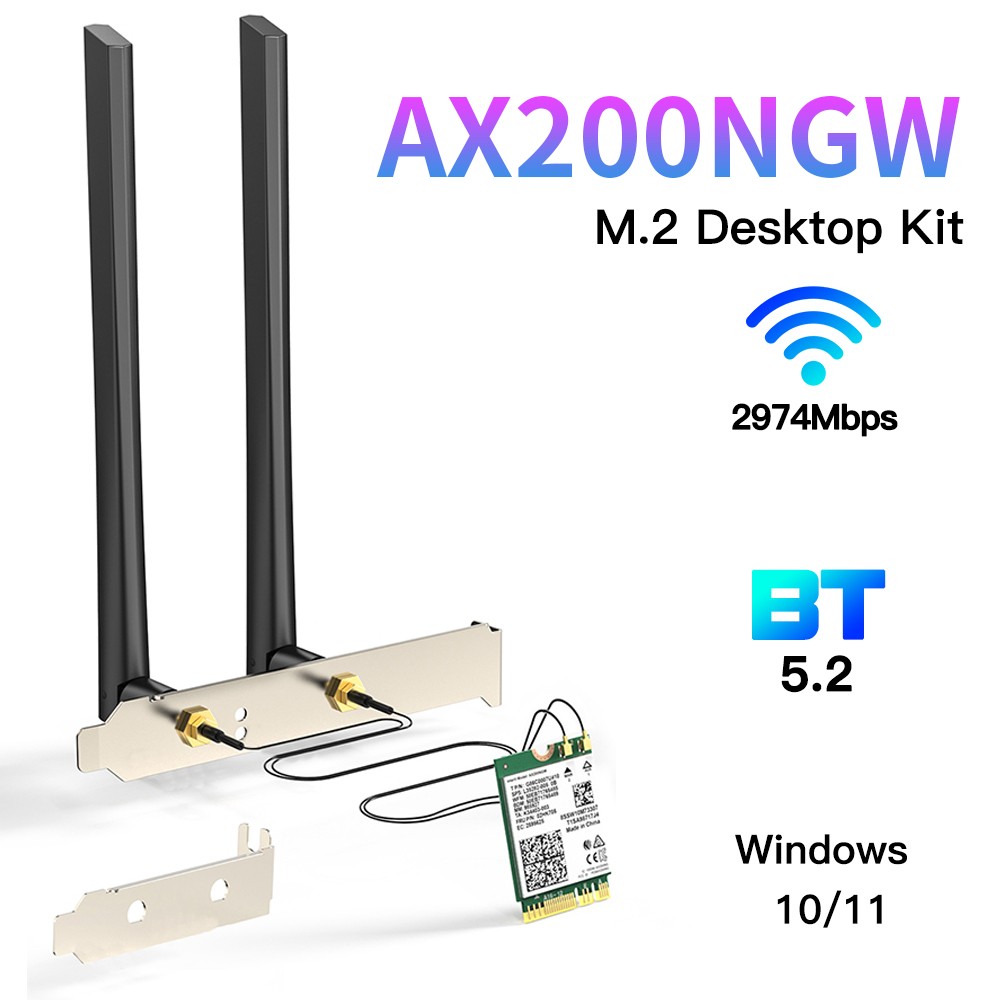

Package Contents
1 × Intel AX200NGW WiFi 6 M.2 Wireless Module
2 × High-Gain Antennas
2 × Internal Antennas
1 × Mounting Bracket
1 × Plastic Retainer Bracket
Important Notes
1. A WiFi 6 compatible router is required to unlock full speed and WiFi 6 features. Actual speed will be limited when paired with older standard routers.
2. Driver installation is required for full functionality. Please download and install the latest official Intel WiFi & Bluetooth driver before use.
3. After installation, please disable any existing onboard WiFi or Bluetooth adapters in Device Manager to avoid signal conflicts.
