Description:

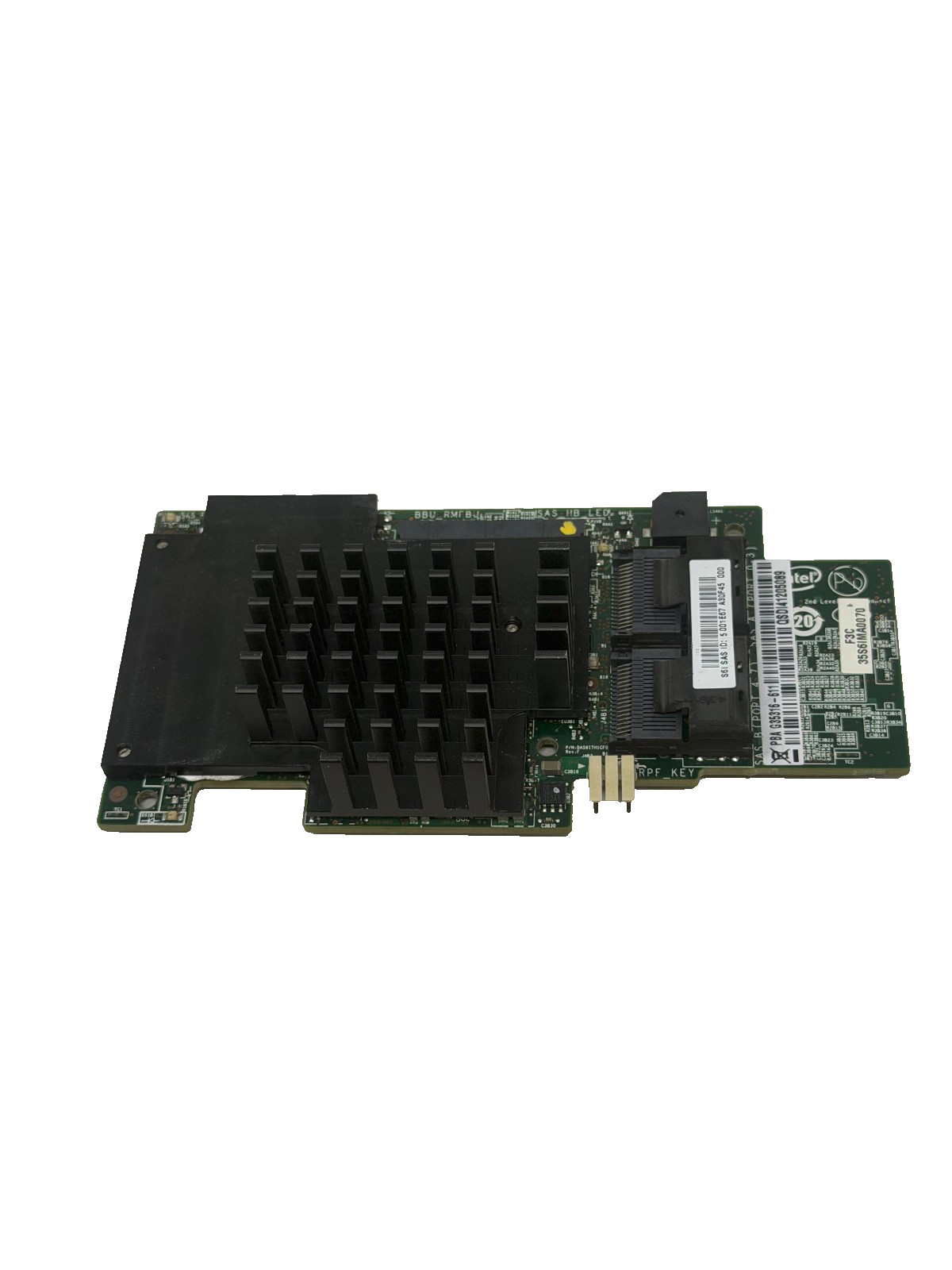

Upgrade your Intel server storage subsystem with this Intel RMS25CB080 Integrated RAID Controller Module. Powered by the LSI SAS2208 RAID-on-Chip (ROC) processor and featuring 1GB DDR3 cache, this enterprise-class controller delivers reliable hardware RAID performance for SAS and SATA drives.

Designed for compatible Intel server boards, the RMS25CB080 supports advanced RAID levels including RAID 0, 1, 5, 6, 10, 50, and 60, making it an excellent solution for business-critical storage environments, virtualization hosts, database servers, and file storage applications. It provides connectivity for up to 8 internal SAS/SATA drives through dual Mini-SAS SFF-8087 connectors.

Specifications:

• Manufacturer: Intel
• Model: RMS25CB080
• Part Numbers:
  • G35316-610
  • G35316-611
  • G35316-612
  • Controller Chipset: LSI SAS2208 ROC
  • Interface: PCIe x8 Gen2 / Integrated RAID Module
  • Internal Ports: 8 Ports
  • Connectors: 2 x Mini-SAS SFF-8087
  • Supported Drives:
    • SAS 6Gb/s
    • SATA 6Gb/s
  • Cache Memory: 1GB DDR3 ECC
  • RAID Levels:
    • RAID 0
    • RAID 1
    • RAID 5
    • RAID 6
    • RAID 10
    • RAID 50
    • RAID 60
  • Maximum Supported Devices: Up to 128 drives (with expanders)

  Key Features:
  ✔ Enterprise Hardware RAID Controller
  ✔ LSI SAS2208 RAID-on-Chip Technology
  ✔ 1GB DDR3 Cache Memory
  ✔ Supports SAS & SATA Drives
  ✔ Advanced RAID Protection & Performance
  ✔ Dual SFF-8087 Internal Connectors
  ✔ Ideal for Virtualization, Storage Servers & Databases

  Compatibility:

  • Compatible Intel Server Boards supporting the RMS25CB080 Integrated RAID Module
  • Windows Server
  • Linux
  • VMware ESXi
  • Other supported enterprise operating systems

  Included:

  • Intel RMS25CB080 RAID Controller Module
  • Only items shown in photos are included
