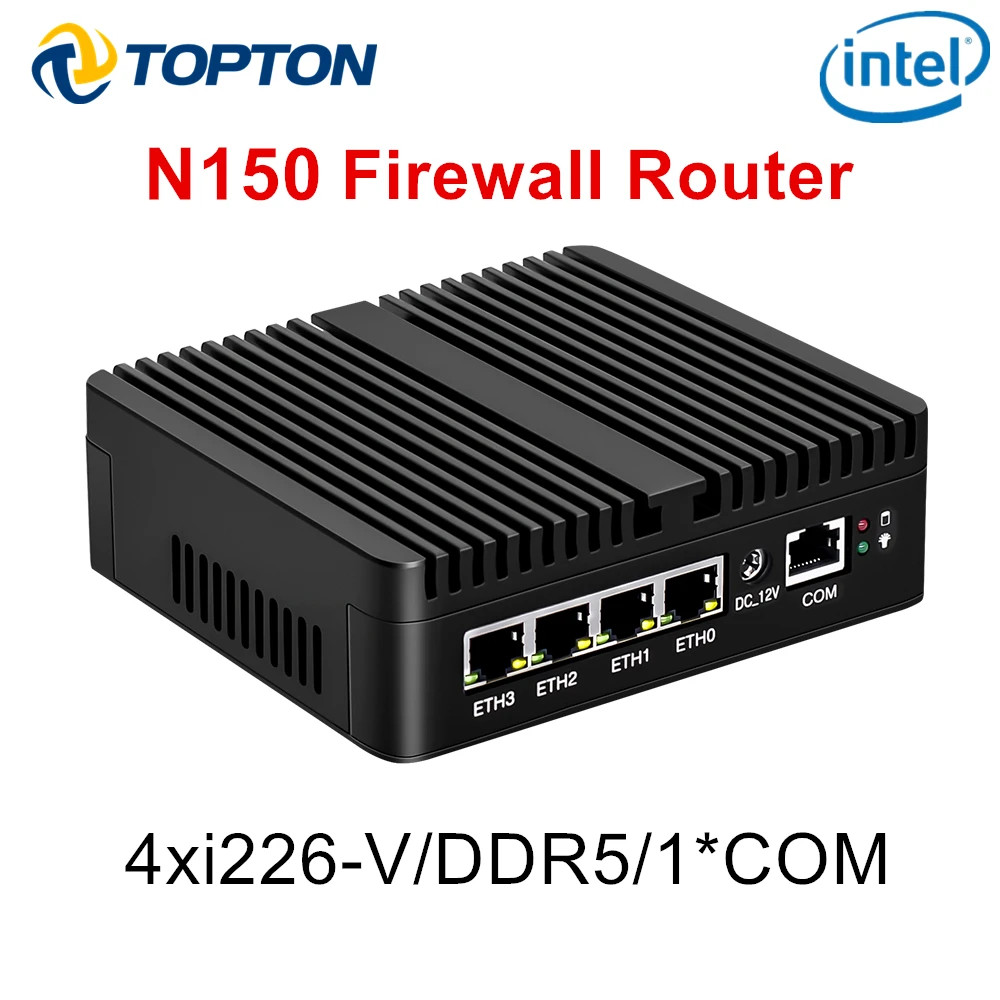

🔒 Professional Firewall Router Mini PC
Fanless Design | 4x 2.5G Intel i226-V LAN | pfSense/OPNsense Ready
💪 Key Features🚀 Multiple CPU Options
Choose from Intel N150, N100, Celeron N5105, J6412, J5005, 7305, or 6305 processors to match your performance needs
🌐 Enterprise-Grade Networking
4x Intel i226-V 2.5GbE LAN ports deliver enterprise-level network performance for routing and firewall applications
🔇 Fanless Cooling
All-aluminum heatsink design runs silently while keeping temperatures 10-15°C lower than standard models — perfect for 24/7 operation
💾 Flexible Storage
Supports dual storage: M.2 NVMe 2280 SSD + 2.5" SATA3.0 SSD/HDD for maximum flexibility
📊 Technical SpecificationsCPU OptionsIntel N150 (4C/4T, 3.6GHz, 6W) | N100 (DDR5) | N5105/J6412/J5005/7305/6305 (DDR4)Network Ports4x Intel i226-V 2.5GbE RJ45 LANRAM SupportN150/N100: 1x DDR5 4800MHz SODIMM | Others: 2x DDR4 2400/2666/3200MHz SODIMMStorage1x M.2 NVMe PCIe 3.0 2280 + 1x 2.5" SATA3.0 (7mm)USB PortsN150: 2x USB 3.0, 4x USB 2.0 | Others: 2x USB 3.0, 2x USB 2.0Display Output1x HDMI + 1x DP (Dual 4K support)Additional1x RJ45 COM Console, SIM slot(s), WiFi/4G/5G expansion via mPCIeDesignFanless aluminum alloy chassis with extended fins for superior coolingSupported OSpfSense, OPNsense, ESXi, Proxmox, Linux, WindowsAdvanced FeaturesAES-NI, Watchdog, Auto Power On, RTC, PXE Boot, Wake-on-LAN📦 Package Contents
✅ 1x Firewall Mini PC (barebone or configured based on selection)
✅ 1x Power Adapter
✅ 1x Power Cord (US/EU/UK/AU plug based on destination)
✅ 1x SATA Cable
✅ User Manual
🖼️ Product Images❓ Frequently Asked QuestionsQ: What's the difference between X2E and X2B models?
A: X2E (N150) includes 5G SIM slot and more USB ports. X2B supports other CPUs with standard feature set. Both have 4x 2.5G Intel i226-V LAN ports.
Q: Can I use this for virtual machines?
A: Yes! Supports ESXi and Proxmox. For VM workloads, consider adding extra cooling fan for RAM/storage to prevent thermal throttling.
Q: Does it come with RAM and storage?
A: Multiple configurations available — barebone (no RAM/storage), or pre-configured with 8GB/16GB RAM and 128GB/256GB/512GB NVMe SSD.
Q: Is VESA mounting supported?
A: Yes, VESA bracket available separately for monitor back-mounting.
