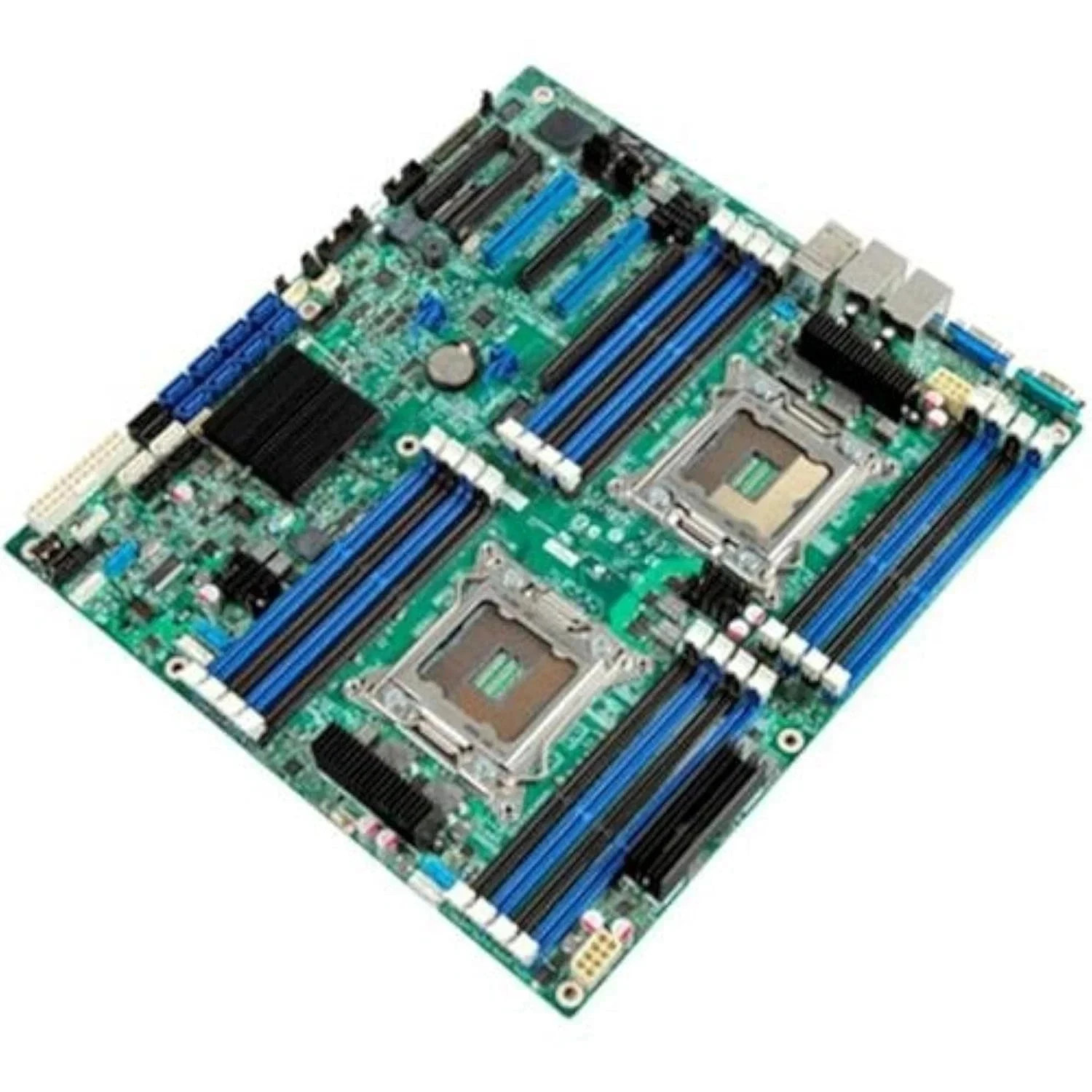

Intel S2600CP4 / DBS2600CP4 Dual-Socket Server Motherboard
Build or maintain a powerful server or professional workstation with the Intel S2600CP4 / DBS2600CP4 Server Board. Designed around the Intel C602 chipset and dual LGA2011 / Socket R architecture, this enterprise server motherboard supports select Intel Xeon E5-2600 and E5-2600 v2 processors for demanding business, virtualization, storage, database, and compute applications.
With 16 DDR3 ECC DIMM slots, four Gigabit Ethernet ports, PCI Express 3.0 expansion, integrated server management, and extensive storage connectivity, the S2600CP4 provides a flexible platform for professional server environments.
Product Specifications
- Brand: Intel
- Model: S2600CP4
- Part Number: DBS2600CP4
- Product Type: Server Motherboard / Server Board
- Board Family: Intel S2600CP
- Code Name: Canoe Pass
- Form Factor: SSI EEB
- Dimensions: 12" × 13"
- Chipset: Intel C602
- CPU Socket: Dual LGA2011 / Socket R
- Maximum CPU Configuration: 2 Processors
- Compatible Processor Family: Intel Xeon E5-2600 / E5-2600 v2
- Maximum Supported CPU TDP: 135W
- Memory Slots: 16 DIMM
- Maximum Memory: Up to 512GB
- Memory Type: DDR3 ECC
- Integrated Networking: 4 × Gigabit Ethernet
- PCI Express: PCIe 3.0
- Integrated Graphics: Yes
- Graphics Output: VGA
- Server Management: Integrated BMC / IPMI 2.0
- TPM Support: TPM 1.2
Memory Support
Supports compatible DDR3 ECC server memory including:
- ECC 1066MHz
- DDR3 1333MHz
- DDR3 1600MHz
- DDR3 1866MHz with supported configurations
- Up to 512GB total system memory
- 16 DIMM slots
- 8 memory channels
Processor Support
Designed for select:
- Intel Xeon E5-2600 Series
- Intel Xeon E5-2600 v2 Series
Dual-processor operation is supported with compatible CPUs and system configuration.
Expansion Slots
- 1 × PCI Express 3.0 x16
- 5 × PCI Express 3.0 x8
- Up to 48 PCI Express lanes
Ideal for compatible RAID controllers, network adapters, storage controllers, graphics cards, and other server expansion hardware.
Storage Connectivity
- Up to 14 SATA ports
- SATA 6Gb/s connectivity
- SATA 3Gb/s connectivity
- 8 integrated SAS / SCU ports
- Intel Rapid Storage Technology Enterprise support
- Software RAID support depending on configuration and activation hardware
- Networking & Management
- 4 × Integrated 1Gb Ethernet LAN
Integrated Baseboard Management Controller
- IPMI 2.0 support
- Intel Remote Management Module support
- Intel Node Manager support
- Intel Virtualization Technology for Directed I/O support
Key Features
✔ Intel S2600CP4 / DBS2600CP4 Server Board✔ Dual LGA2011 / Socket R Processor Design✔ Intel C602 Server Chipset✔ Supports Select Xeon E5-2600 & E5-2600 v2 CPUs✔ 16 DDR3 ECC Memory Slots✔ Up to 512GB Supported Memory✔ Four Integrated Gigabit Ethernet Ports✔ PCI Express 3.0 Expansion✔ Integrated VGA Graphics✔ IPMI 2.0 Server Management✔ Extensive SATA & SAS Storage Connectivity✔ SSI EEB 12" × 13" Form Factor✔ Designed for Server, Workstation & Virtualization Applications
Ideal Applications
- Business Servers
- Virtualization Hosts
- Professional Workstations
- Storage Servers
- Database Systems
- File Servers
- Development Environments
- Enterprise Computing
- Homelab Servers
Package Includes
- 1 × Intel S2600CP4 / DBS2600CP4 Server Motherboard
Important Compatibility Information
Please verify your processor model, LGA2011 socket requirements, memory type, chassis dimensions, power supply connections, storage configuration, expansion cards, and cooling setup before purchasing.
This motherboard uses the SSI EEB 12" × 13" form factor, which is larger than standard ATX. Please confirm that your chassis supports SSI EEB server motherboards.
Processor, memory, storage, RAID, and expansion capabilities depend on the exact hardware configuration and installed components.
