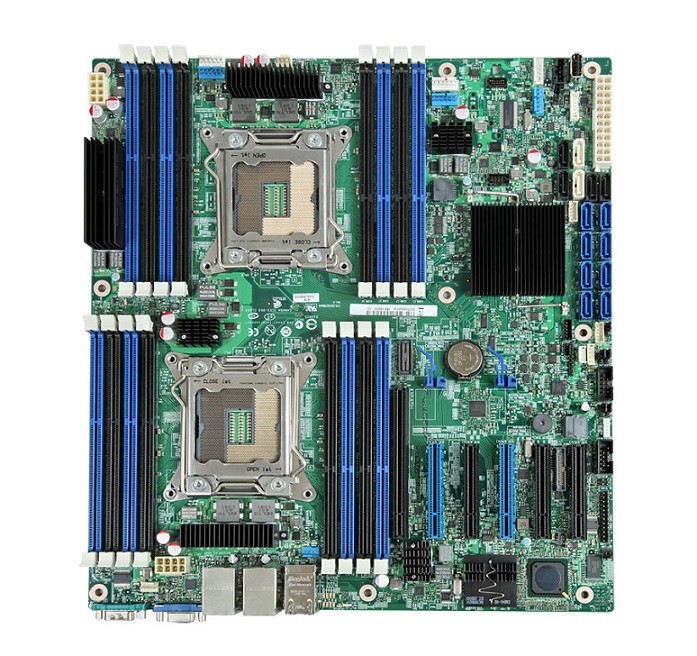

Intel S2600CP4 Dual Intel Xeon E5-2600 LGA2011 DDR3 SSI EEB Server Motherboard

Product Description

Essentials

• Product CollectionIntel® Server Board S2600CP Family

• Code NameProducts formerly Canoe Pass

• Marketing StatusDiscontinued

• Launch DateQ1'12

• EOL AnnounceWednesday, December 21, 2016

• Last OrderFriday, June 30, 2017

• Last Receipt AttributesTuesday, October 31, 2017

• Limited 3-year WarrantyYes

• Extended Warranty Available for Purchase (Select Countries)Yes

• Additional Extended Warranty DetailsDual Processor Board Extended Warranty

• # of QPI Links2

• Compatible Product SeriesIntel® Xeon® Processor E5-2600 v2 Family

• Board Form FactorSSI EEB 12" x 13"

• Chassis Form Factor4U Rack or Pedestal

• SocketSocket R

• Integrated Systems AvailableYes

• Integrated BMC with IPMIIPMI 2.0

• Rack-Friendly BoardYes

• TDP135 W

• Included Items(1) Intel® Server Board S2600CP4, (5) DVDs, (5) Quick Start Guides. Note: the OEM 10 Pack does not ship with included items.

• Board ChipsetIntel® C602 Chipset

• Target MarketSmall and Medium Business


Supplemental Information

• Embedded Options AvailableYes

• DatasheetView now

• DescriptionA mainstream server board supporting two Intel® Xeon® processor E5-2600,16 DIMMs, four 1Gb Ethernet ports, six x8 electrical PCIe Gen3 IO slots, up to 8 SCU ports plus 2 SATA 6Gb ports and 4 SATA 3Gb ports with storage activation key.


Memory Specifications

• Max Memory Size (dependent on memory type)512 GB

• Memory TypesDDR3 ECC UDIMM 1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866

• Max # of Memory Channels8

• Max Memory Bandwidth119.5 GB/s

• Physical Address Extensions46-bit

• Max # of DIMMs16

• ECC Memory Supported‡Yes


Processor Graphics

• Integrated Graphics‡Yes

• Graphics OutputVGA

• Discrete GraphicsSupported


Expansion Options

• PCI Express Revision3.0

• Max # of PCI Express Lanes48

• PCIe x8 Gen 35

• PCIe x16 Gen 31


I/O Specifications

• # of USB Ports5

• USB Revision2.0

• Total # of SATA Ports14

• RAID ConfigurationUp to SW Raid 5 (LSI + RSTE)

• # of Serial Ports2

• # of LAN Ports4

• Integrated LAN4x 1GbE

• FirewireYes

• Embedded USB (eUSB) Solid State Drive OptionYes

• Integrated SAS Ports8

• Integrated InfiniBand*No


Package Specifications

• Max CPU Configuration2


Advanced Technologies

• Intel® Virtualization Technology for Directed I/O (VT-d)‡Yes

• Intel® Remote Management Module SupportYes

• Intel® Node ManagerYes

• Intel® Quick Resume TechnologyNo

• Intel® Quiet System TechnologyNo

• Intel® HD Audio TechnologyNo

• Intel® Matrix Storage TechnologyNo

• Intel® Rapid Storage TechnologyNo

• Intel® Rapid Storage Technology enterpriseYes

• Intel® Fast Memory AccessYes

• Intel® Flex Memory AccessYes

• Intel® I/O Acceleration TechnologyYes

• Intel® Advanced Management TechnologyYes

• Intel® Server Customization TechnologyYes

• Intel® Build Assurance TechnologyYes

• Intel® Efficient Power TechnologyYes

• Intel® Quiet Thermal TechnologyYes

• TPM Version1.2


Security & Reliability

• Intel® AES New InstructionsYes

• Intel® Trusted Execution Technology‡Yes
