Essentials
Product Collection
Intel® Server Board S2600CP FamilyCode Name
Products formerly Canoe PassMarketing Status
DiscontinuedLaunch Date
Q1'12EOL Announce
Wednesday, December 21, 2016Last Order
Friday, June 30, 2017Last Receipt Attributes
Tuesday, October 31, 2017Limited 3-year Warranty
YesExtended Warranty Available for Purchase (Select Countries)
YesAdditional Extended Warranty Details
Dual Processor Board Extended Warranty# of QPI Links
2Compatible Product Series
Intel® Xeon® Processor E5-2600 v2 FamilyBoard Form Factor
SSI EEB 12" x 13"Chassis Form Factor
4U Rack or PedestalSocket
Socket RIntegrated Systems Available
YesIntegrated BMC with IPMI
IPMI 2.0Rack-Friendly Board
YesTDP
135 WIncluded Items
(1) Intel® Server Board S2600CP4, (5) DVDs, (5) Quick Start Guides. Note: the OEM 10 Pack does not ship with included items.Board Chipset
Intel® C602 ChipsetTarget Market
Small and Medium BusinessSupplemental Information
Embedded Options nowDescription

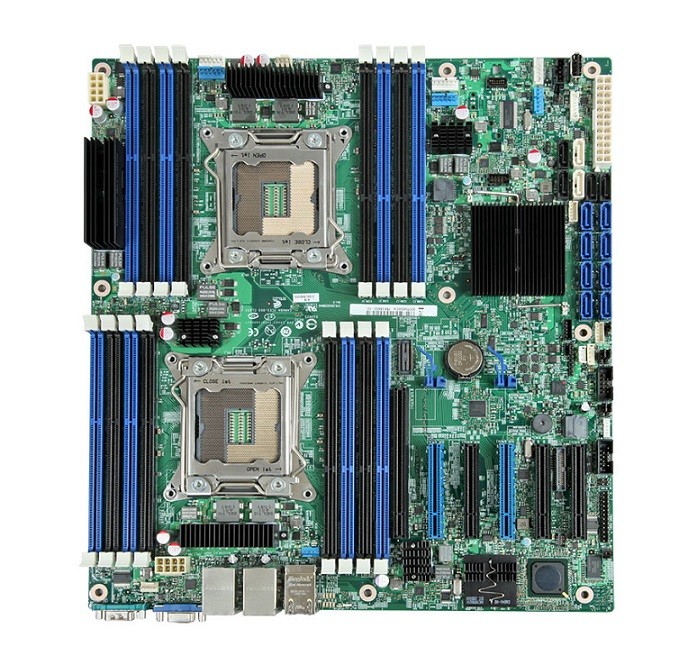

A mainstream server board supporting two Intel® Xeon® processor E5-2600,16 DIMMs, four 1Gb Ethernet ports, six x8 electrical PCIe Gen3 IO slots, up to 8 SCU ports plus 2 SATA 6Gb ports and 4 SATA 3Gb ports with storage activation key.Memory Specifications
Max Memory Size (dependent on memory type)
512 GBMemory Types
DDR3 ECC UDIMM 1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866Max # of Memory Channels
8Max Memory Bandwidth
119.5 GB/sPhysical Address Extensions
46-bitMax # of DIMMs
16ECC Memory Supported ‡
YesProcessor Graphics
Integrated Graphics ‡
YesGraphics Output
VGADiscrete Graphics
SupportedExpansion Options
PCI Express Revision
3.0Max # of PCI Express Lanes
48PCIe x8 Gen 3
5PCIe x16 Gen 3
1I/O Specifications
# of USB Ports
5USB Revision
2.0Total # of SATA Ports
14RAID Configuration
Up to SW Raid 5 (LSI + RSTE)# of Serial Ports
2# of LAN Ports
4Integrated LAN
4x USB (eUSB) Solid State Drive Option
YesIntegrated SAS Ports
8Integrated InfiniBand*
NoPackage Specifications
Max CPU Configuration
2Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
YesIntel® Remote Management Module Support
YesIntel® Node Manager
YesIntel® Quick Resume Technology
NoIntel® Quiet System Technology
NoIntel® HD Audio Technology
NoIntel® Matrix Storage Technology
NoIntel® Rapid Storage Technology
NoIntel® Rapid Storage Technology enterprise
YesIntel® Fast Memory Access
YesIntel® Flex Memory Access
YesIntel® I/O Acceleration Technology
YesIntel® Advanced Management Technology
YesIntel® Server Customization Technology
YesIntel® Build Assurance Technology
YesIntel® Efficient Power Technology
YesIntel® Quiet Thermal Technology
YesTPM Version
1.2Security & Reliability
Intel® AES New Instructions
YesIntel® Trusted Execution Technology ‡
