A value server board for small and medium-sized businesses
With more opportunities to expand business potential than ever before, cost-conscious companies are looking for ways to use technology more effectively and reach their organizational goals. To be successful in competitive markets, small and medium businesses are realizing the need for server technology.

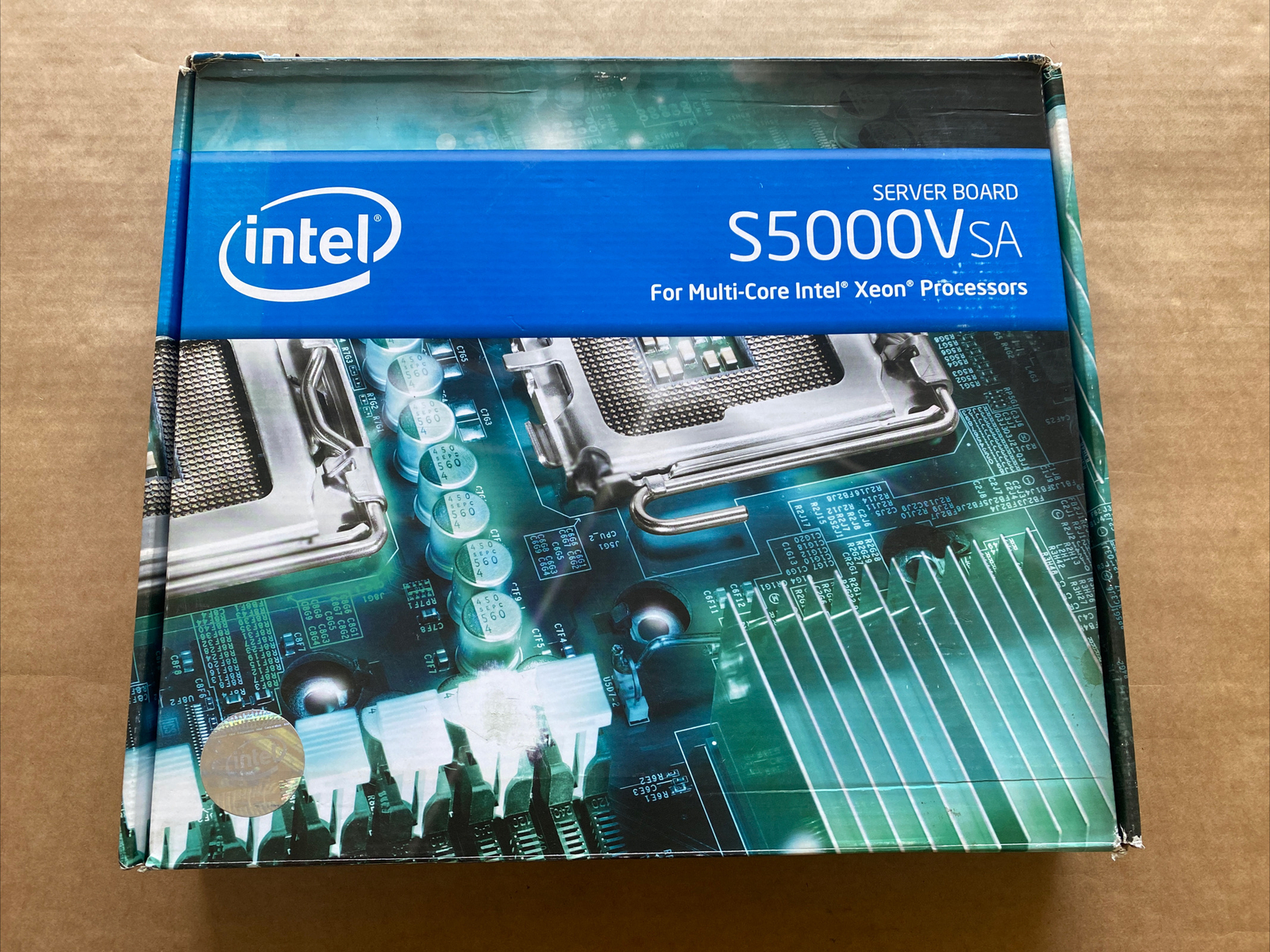

The Intel® Server Board S5000VSA brings next-generation technology to growing companies. An ideal solution for print, file, Web, and other multi-functional small to medium business application servers, the S5000VSA board delivers strong reliability and quality to this growing market.
While server management functions are generally available as an add-on, the S5000VSA includes integrated platform management interface 2.0 from Intel for greater ease of use. This server board also offers increased flexibility by supporting SATA and SAS, as well as SCSI via an add-on card. The Intel® Server Chassis SC5299-E is designed to work with the S5000VSA. This cost-effective chassis adds value by simplifying integration and maintenance through tool-less features on all drives, bays, and fans.
Features and Benefits:
64-bit Multi-core Intel® Xeon® processor allows servers to handle heavier workloads and process simultaneous requests, without increasing power consumption.
Four/eight fully buffered DDR2 533/667 MHz1 DIMMs increase capacity and performance.
Intel® I/O Acceleration Technology (Intel® I/OAT) improves application and network responsiveness by moving data to and from server applications faster.
PCI Express* slots provide expansion headroom for the future.
Embedded ESB2E2 server management lowers costs by improving baseline manageability.
Dual Gb Ethernet increases network performance, with lower processor overhead.3
Legacy 32-bit PCI slot provides support for customers in Code S5000VSA4DIMMR (Entry SATA)
Intel® ServerB
Chassis Support Intel® Entry Server Chassis SC5299DP
Processor Support4 Multi-core Intel® Xeon® Processor
Number of Processors Supported 2
System Bus Speed 667 MHz, 1066 MHz, or 1333 MHz5
Chipset Intel® Chipset 5000V
Independent PCI Buses 4
Total Slots 5
Slot Types 2 x PCI Express* x4
1 x PCI-X 64-bit/100 MHz
1 x PCI-X 64-bit/133 MHz
1 x PCI 32-bit/33 MHz
Memory Capacity 8GB ECC FBDIMMs (4 DIMMs)
SCSI Not available
Integrated ATA One channel supporting up to two IDE devices
Integrated Serial ATA Enhanced SATA provides six ports and RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 52
SAS Not available
Integrated LAN 2 x Intel 82563EB Gigabit Ethernet
Integrated Graphics ATI* ES1000 with 16MB SDRAM memory
Server Management Support Intel® System Management Software and Intel Remote Management Utilities
Intel® RAID Support Refer to for up-to-date details on RAID controllers supported by each server board.
1 Support for 667 may not be available at launch.
2 Support enabled by installing the AXXRAKSW5 may not be available at launch.
3 Requires OS and driver support.
4 Refer to for up-to-date details on processors supported by each server board.
5 1333 MHz support may require updates that may not be available at launch.
