Intel X540-T2 NIC card isNOTincluded, only the fan + shroud are for sale!

Please see my store for the Noctua 40 mm fan mount variant!

I cannot grantee fitment for counterfeit cards!

Please see the universal cooler on my store for compatibility with all genuine and counterfeit cards!

Details:

NIC/HBA cards do not include built-in fans because they are designed to be installed in server chassis with high-RPM system fans with directed airflow shrouds. When used outside of a server chassis, such as in a desktop PC, NAS, or homelab system, they may not receive enough airflow to stay within proper operating temperatures. My NIC/HBA coolers are designed to provide dedicated active airflow, keeping the card within spec and eliminating the risk of overheating, CRC errors, drive dropouts, and long-term component stress.

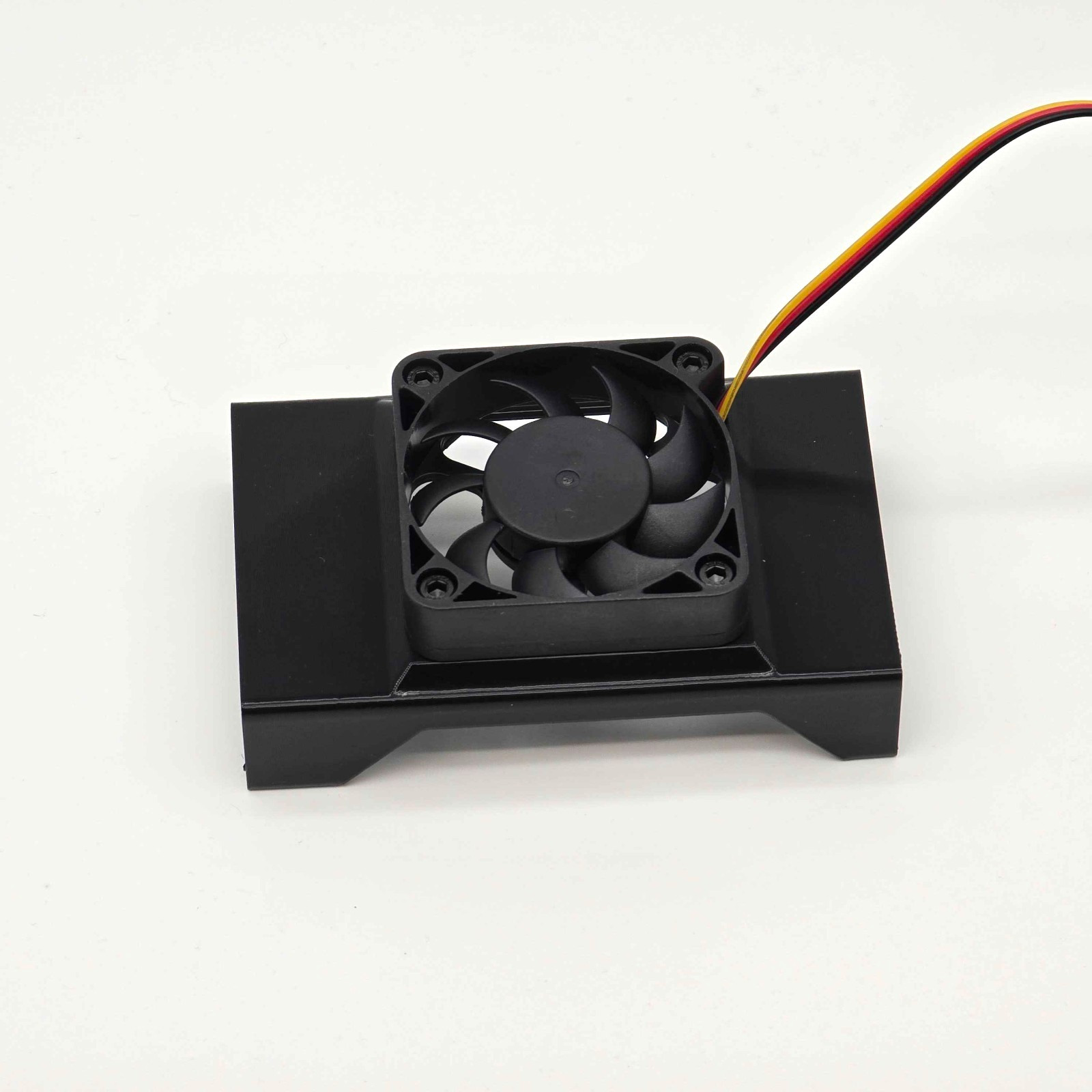

• 3D printed withpolycarbonate (PC) plasticto withstand high heat environments without deforming.
• 1.75 slots are used (card + shroud + fan).
• 50 mm fan included with silent oil lubricated sleeve bearing.
• Shroud fan screw holes are spaced 40 mm apart from the center of each hole.
• Fan is bolted onto the shroud using 4 M3 x 12 mm hex steel machine screws and nuts.
• Shroud fits snugly onto the cards PCB, some force is required to attach (see instructions below & video).
• Standard desktop 3-pin fan header (in BIOS, use DC mode to control RPM speed not shroud over heatsink.
• Clip on the 2 clips on the side with the PCIe slot first.

• Apply lateral pressure at the top of the shroud, pushing the shroud towards the other side.
• The remaining 2 clips will make an audible click when they engage over the PCB.

About:

• Designed and manufactured in the USA.
• Free shipping (USPS 3-5 business days)
• 2 day processing time
• 60 day returns
