Server Network Adapter Intel® Ethernet Converged
Network Adapter X710-DA4 FH Quad SFP+ 10GbE · PCIe 3.0 x8 · 1GbE Optical Support · SR-IOV · DPDK · VXLAN / GENEVE Offload 4 × 10GbE SFP+ Ports PCIe 3.0 x8 Host Interface 128 SR-IOV VFs 3.6 W Typical Power

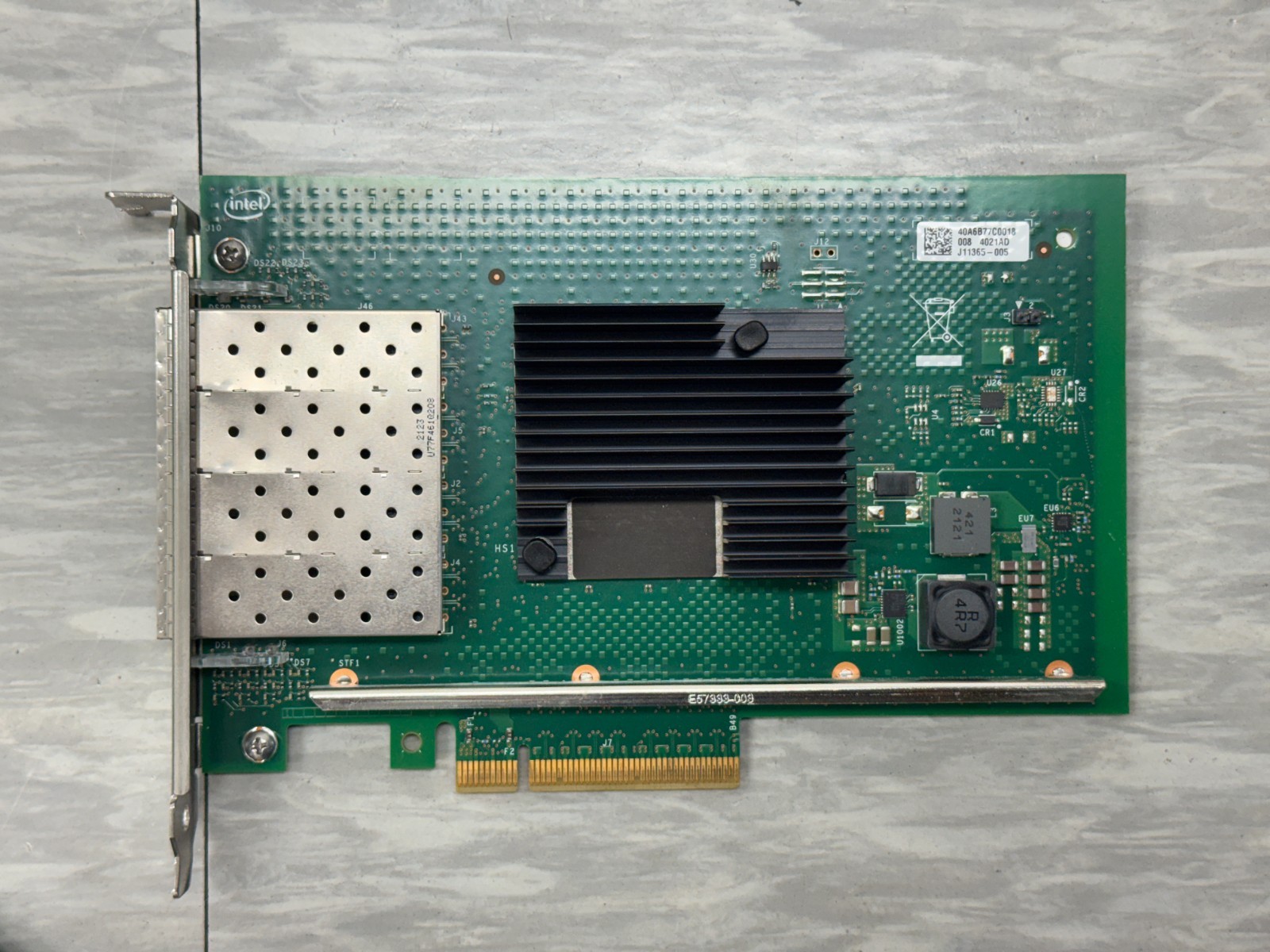

A quad-port 10 Gigabit Ethernet adapter for servers, workstations, NAS and virtualization hosts. The X710-DA4 FH puts four SFP+ ports on a single PCIe 3.0 x8 card, built on Intel's 700 Series (Fortville) XL710-BM1 controller. Each port runs 10GbE over DAC or optics and 1GbE with SFP optics, with hardware offloads for SR-IOV, VXLAN / GENEVE overlays, Flow Director and DPDK packet processing.
Adapter Intel® Ethernet Converged Network Adapter X710-DA4 FH Fortville · 700 Series Controller Intel® Ethernet Controller XL710-BM1 Ports 4 × SFP+ cages Data Rate per Port 10GbE / 1GbE (optical) · 10GbE (SFP+ DAC) Supported Media 10GBASE-SR, 10GBASE-LR, 1000BASE-SX, SFP+ Direct Attach Copper Host Interface PCI Express 3.0 (8 GT/s) x8 Form Factor Full-height PCIe card (FH) Interrupts INTA, MSI, MSI-X Queues 1,536 Tx / Rx queues per device LED Indicators Link (solid) / Activity (blinking) · Speed: green = 10G, yellow = 1G Power Consumption 3.6 W typ / 3.8 W max (DAC)
6.2 W typ / 6.6 W max (10GBASE-SR)
6.9 W typ / 7.4 W max (10GBASE-LR)
5.5 W typ / 6.0 W max (1000BASE-SX) Operating Temp 0 – 55 °C (150 LFM minimum airflow) Certifications FCC, UL Recognized cURus (E139761), CE, RCM, VCCI, BSMI, KC (MSIP-REM-CPU-H74330), ICES-3(B) / NMB-3(B), RoHS Launch Date Q3 2014 Product Code X710DA4FH (Retail) · MM# 932575 Board Revision (PBA) J11365-005 Date of Manufacture 10 / 2021 Country of Origin Malaysia Authenticity Genuine Intel® card with Intel verification hologram label Features Virtualization & Offloads SR-IOV · DPDK SR-IOV Up to 128 virtual functions per device VMDq Next-generation VMDq, up to 256 VMs Flexible Port Partitioning Up to 63 host processes or VMs per port Overlay Offloads VXLAN, GENEVE, NVGRE, MPLS, VXLAN-GPE with NSH Traffic Steering Intel® Ethernet Flow Director, RSS Packet Processing DPDK support · Dynamic Device Personalization (DDP) Checksum Offload IP, TCP, UDP, SCTP (IPv4 / IPv6) VLAN Tag insertion, stripping and filtering, up to 4,096 VLANs Time Sync IEEE 1588 / 802.1AS Boot PXE (32/64-bit), UEFI OS Support Windows Server, Linux (i40e), VMware ESXi, FreeBSD Item Details Condition & Package What you receive Condition Used · light residue marks on the PCB surface (see photos) Testing [EDIT] e.g. All 4 ports linked at 10GbE, no errors Included Intel X710-DA4 FH adapter with full-height bracket installed Not Included SFP+ transceivers, DAC cables, retail box Before You Buy Form factor – This is the full-height (FH) version. It needs a full-height PCIe slot and does not fit low-profile chassis.
Cooling – The card uses a passive heatsink. Server chassis airflow is ideal; in a desktop or workstation, keep a case fan blowing across it.
Optics – Intel 700 Series firmware checks SFP+ module coding. Intel-coded or Intel-compatible transceivers / DAC cables are recommended.
Slot – Needs a PCIe x8 or x16 slot for full bandwidth across all four ports. It works in x4 slots at reduced throughput. Shipping Ships from South Korea by EMS (Korea Post) with tracking.
Import duties, taxes and brokerage fees are not included in the item price and are the buyer's responsibility, unless collected by at checkout.
