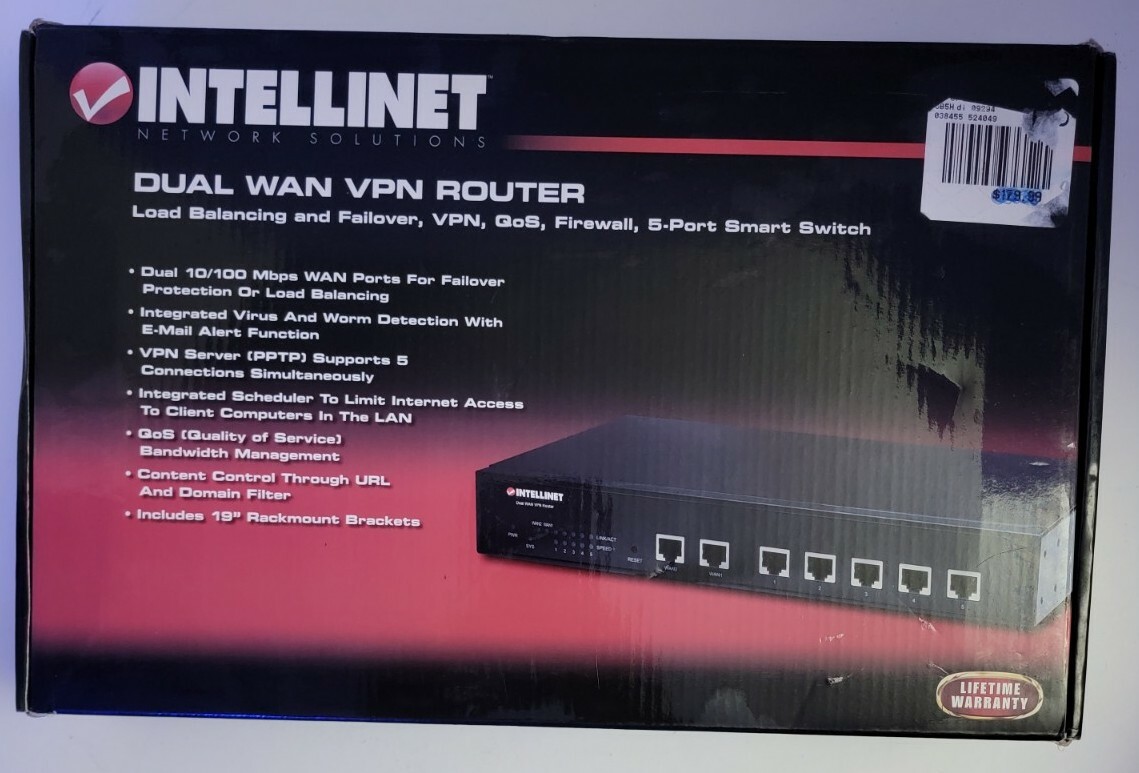

Intellinet Dual Wan Vpn Router, 524049.

Package Contents

Dual WAN VPN Router

User manual

Power cord

Product Description

• Dual 10/100 Mbps WAN ports for failover protection or load balancing

• Integrated virus and worm detection with e-mail alert function

• VPN server (PPTP) supports 5 connections simultaneously

• Integrated scheduler to limit Internet access to client computers in the LAN

• QoS (Quality of Service) bandwidth management

• Content control through URL and domain filter

• Includes 19" rackmount brackets

• Lifetime Warranty

Color

• Black

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3x (flow control, for full duplex mode)

• General

• LAN ports: 5 RJ-45 10/100 Mbps data ports

• LAN ports with Auto MDI/MDI-X

• LAN to WAN throughput: 94 Mbps

• CPU: Intel® IXP425 network processor at 533 MHz

• Flash: 4 MB

• Memory: 16 MB SDRAM

• Certifications: FCC Class B, CE Mark, RoHS

• Router

• Supported WAN connection types:
• - Dynamic IP (DHCP for cable service)
• - Static IP
• - PPPoE (for DSL)

• WAN Modes:
• - Primary WAN 1
• - Primary WAN 2
• - Primary WAN 1 with auto line backup (failover) of WAN2
• - Primary WAN 2 with auto line backup (failover) of WAN1
• - WAN 1 + 2 WRR Load Sharing
• - WAN 1 + 2 User Defined Load Sharing

• Firewall:
• - Access control based on MAC address
• - Domain blocking
• - URL filter
• - Block ICMP PING from Internet to LAN
• - Block ICMP PING from LAN to Internet
• - Detection of Synflood, Smurf, IP Spoofing and IP source routing

• QoS:
• - Application-based
• - IP-based
• - Port-based

• NAT:
• - Virtual server
• - Port forwarding
• - Special applications (port trigger)
• - DMZ (demilitarized zone)

• Supports UPNP (Universal Plug and Play)

• Supports DHCP (client/server)

• Supports PPPoE (DSL), DHCP (cable) and static IP

• Supports VPN PPTP pass-through

• Certifications: FCC Class B, CE Mark, RoHS

• Power

• Internal power supply, 100 – 240 V AC, 50/60 Hz

Power consumption: 12 Watts (maximum)
