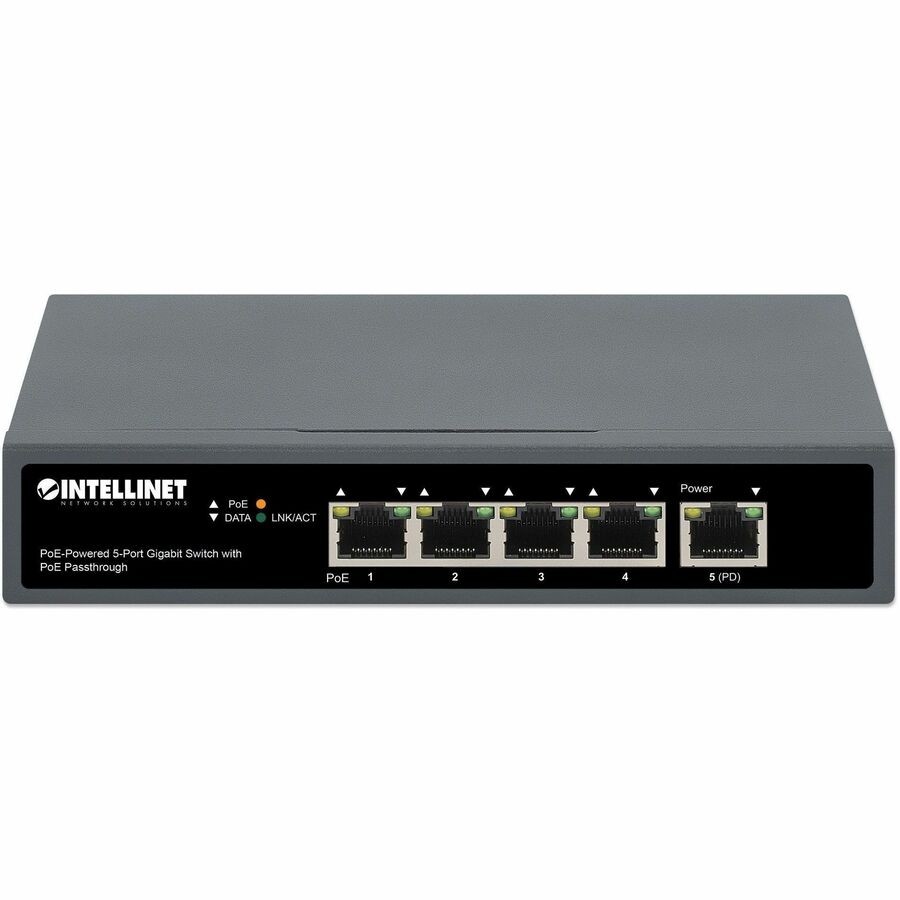

Intellinet PoE-Powered 5-Port Gigabit Switch With PoE Passthrough Brand: Intellinet UPC: 0766623561808 Mfr Part #: 561808
General Information
Get the most out each Power over Ethernet connection with this PoE passthrough switch
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3afcompliant device
The Perfect Workgroup Switch
When you connect the PD port (port 5) to a PoE injector or switch, this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option
For full installation flexibility, you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Technical InformationFeatures:Fanless
Media & PerformanceMedia Type Supported:Twisted PairEthernet Technology:Gigabit EthernetNetwork Technology:10/100/1000Base-T
Network & CommunicationLayer Supported:2Networking Standards:IEEE 802.3btNetworking Standards:IEEE802.3afNetworking Standards:IEEE 802.3atNetworking Standards:IEEE 802.3xNetworking Standards:IEEE 802.3Networking Standards:IEEE 802.3abNetworking Standards:IEEE 802.3u
Power DescriptionPoE (RJ-45) Port:YesPoE Budget:65 WInput Voltage:120 V ACInput Voltage:230 V ACFrequency:50 HzFrequency:60 HzPower Source:Power SupplyPower Source:ACPower Source:Power AdapterPower Source:PoE++Power Consumption:72 W
Physical CharacteristicsProduct Material:MetalForm Factor:DesktopForm Factor:Wall (Approximate):14.11 oz
PoE-Powered 5-Port Gigabit Switch With PoE Passthrough Power Adapter Power Cable Four Rubber Feet PhoneApplication/Usage:IP CameraApplication/Usage:Wireless Access PointApplication/Usage:Data Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS) Store Policies
