Product features:
The frequency converter interface (AVI +, AVI-) disconnected from the computer and the main control circuit, strong anti-jamming capability
Support for different versions of MACH3 software, support for the latest version.
Support for Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems, support for laptops, support for tablets.
The external wide voltage input, 12-24V and anti-reverse function.
All input isolated by the light lotus can be accessed by emergency stop, knife, limit, back to zero, etc. to ensure computer security.
All the way through the optocoupler isolated 0-10v analog voltage output, you can control the input voltage of 0-10v analog voltage converter to control the spindle speed
To supply PWM output (5V level), can be controlled by the PWM spindle control.
Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on.
Can be accessed by a total of Yang or common cathode, the input level of 5v, with optocoupler input stepper motor driver.
Providing an electronic hand wheel interface.
Specifications:

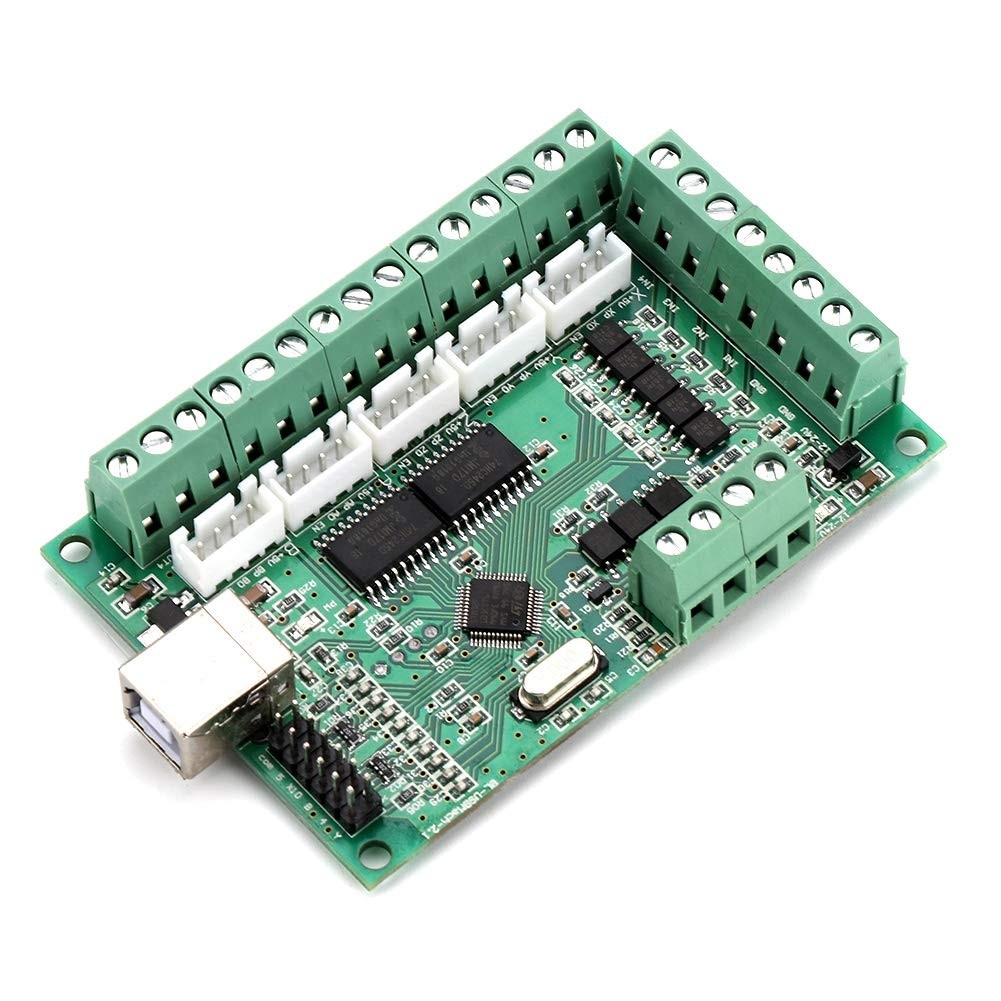

Type: USB interface panel
Support: for MACH3 software
Size: 9.8 x 6 inches / 3.96 x 2.36 inches
Weight: 145g
Package contents:
1 x interface card
1 x USB cable
Note:
Please for the software and drivers required for the product[USB INTERFACE BOARD] --- The frequency converter interface (AVI+, AVI-) isolated from the computer and the main control circuit, Strong anti-interference ability. To provide PWM output (5V level), can be controlled by the PWM spindle control. Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on.
[5V LEVEL] --- Can be accessed by a total of yang or common cathode, the input level of 5V, with optocoupler input stepper motor driver. To provide electronic hand wheel interface.
[COMPATIBILITY] --- Support various versions of software, support for the latest version. Support for Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems, support for laptops, support for tablets.
[SECURITY] --- The external wide voltage input, 12-24V, and anti-reverse function. All the input isolation by the light lotus, can be accessed by emergency stop, the knife, limit, back to zero, etc., to ensure computer security.
[0-10V ANALOG VOLTAGE ] --- All the way through the optocoupler isolated 0-10V analog voltage output, you can control the input voltage from 0-10V analog voltage converter to control the spindle speed.
