TESTED & PRINTING OK
INCLUDING POWER SUPPLY
LOOSE TOP WINDOW
USB, SERIAL& PARALLEL PORTS - EXCLUDING CABLES
See photos for actual item!
Price is for 1 item.

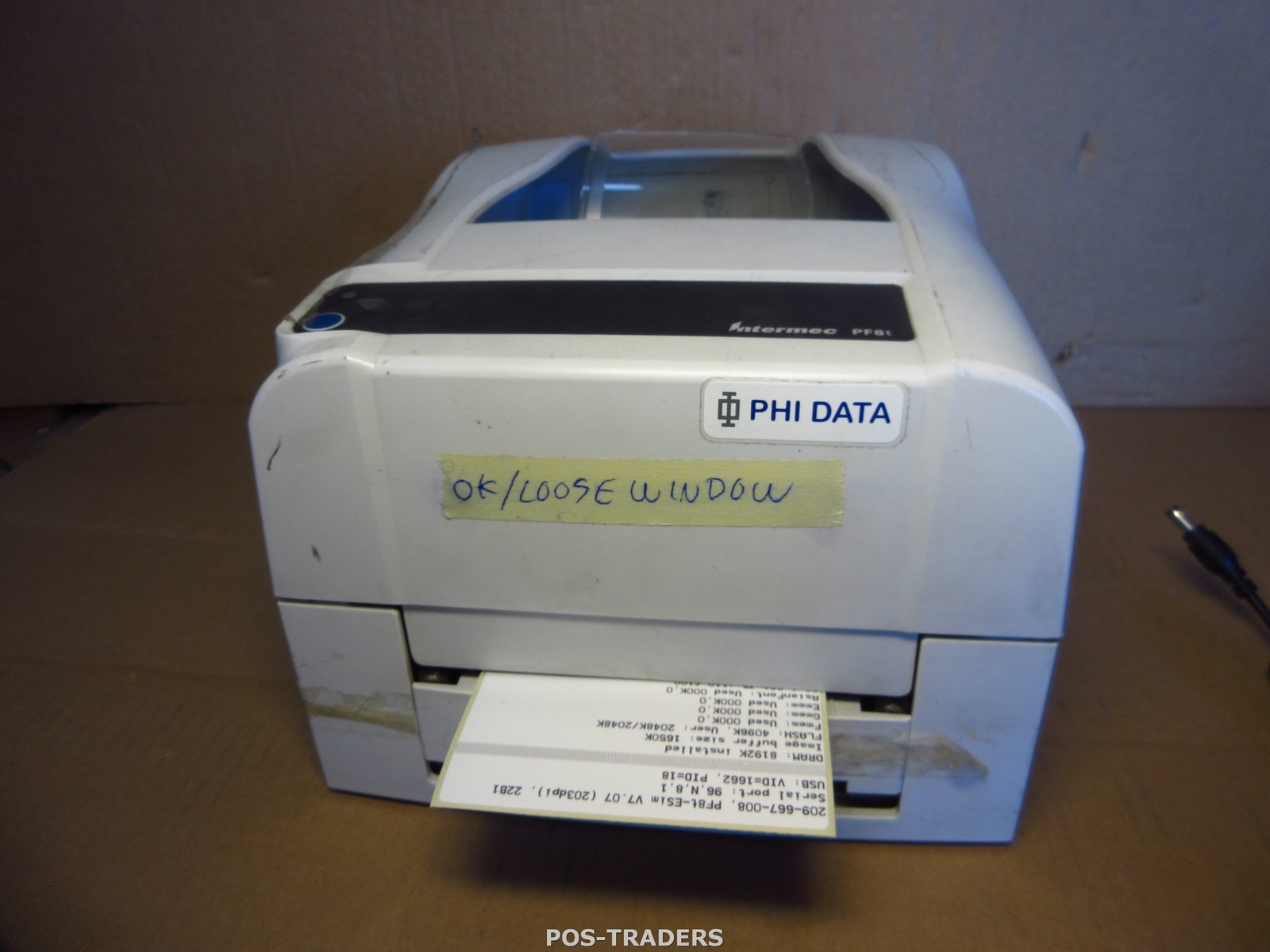

Refurbished Intermec PF8t 203 DPI Thermal TransferLabel And Barcode Printer
The Intermec PF8t provides a compact, easy-to-use bar code printing solution that simplifies deployment and support. It is designed to set a new standard in IT friendliness. Its quiet, reliable operation and intuitive design make the PF8t the right fit for light duty labeling applications in transportation/ courier, healthcare, in-store retail, and office environments..
The PF8t printers include flexible, industry standard connectivity - parallel, serial, USB, and optional internal Ethernet – which enables easy, drop-in installation in networked environments. With its compact size, common media specifications, and ESIM printer language, the PF8t printer provides an easy migration path from legacy Intermec printers such as the PC4, as well as from other desktop printers using the EPL printer language.
Printer Specification
Technical DataDetailsPhysical Characteristics•Electrical requirements: Separate power supply unit - 100–240 V AC/50–60 Hz, 1.9 A
•Operating temperature: +5°C to +40°C (+41°F to +104°F)
• Humidity: 10–90% RH non-condensing
•Safety: CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
•Dimensions: 285 mm (11.2 in) L x 172 mm (6.77 in) H x 226 mm (8.9 in) W
•Weight: 2.5 kg (5.07 lbs)System•Interface: RS-232C, USB v.2.0, and Centronics/ Parallel
•Memory: 4 MB Flash, 8 MB SDRAMPrinting•Resolution: 8dots/mm (203dpi)
•Methods: thermal-transfer
•Speed: Selectable up to 4 ips (101.6 mm)
•Width: max. 104 mm (4.1 in)
•Direction: Prints text, bar codes and graphics in all four directionsFonts and Graphics•Five resident alphanumeric fonts; expandable 8 times horizontally and 9 times vertically. Four double-byte fonts including Korean, Japanese, Chinese GB2312 and Chinese BIG-5.
•Graphics supported: Printing of graphics, symbols, and downloading of additional fonts is also possible.Barcode Symbologies•All major 1-dimensional bar code symbologies are available, plus five 2-dimensional codes: MaxiCode, PDF417, DataMatrix, QR-Code, and Composite Code EAN/ECC for EAN/UCC 128 w/ CC-C.Media•Width: Max. 118 mm (4.65 in) Min. 25.4 mm (1 in)
•Maximum Diameter: 127 mm (5 in)
•Core Diameter: Min. 25.4 mm (1 in) Max. 38.1 mm (1.5 in)
•Type: Self-adhesive labels, non-adhesive tags, or continuous paper strip rollRibbon (thermal transfer)•Max Ribbon Length: 3.588 in (91.1 m)
•Core ID: 0.5” ID (12.7mm ID), with notches
•Width: Min.2.36” Max.4.33”
Comes as shown on photos, if something is not on the photo it's not included unless stated otherwise.
