Product description

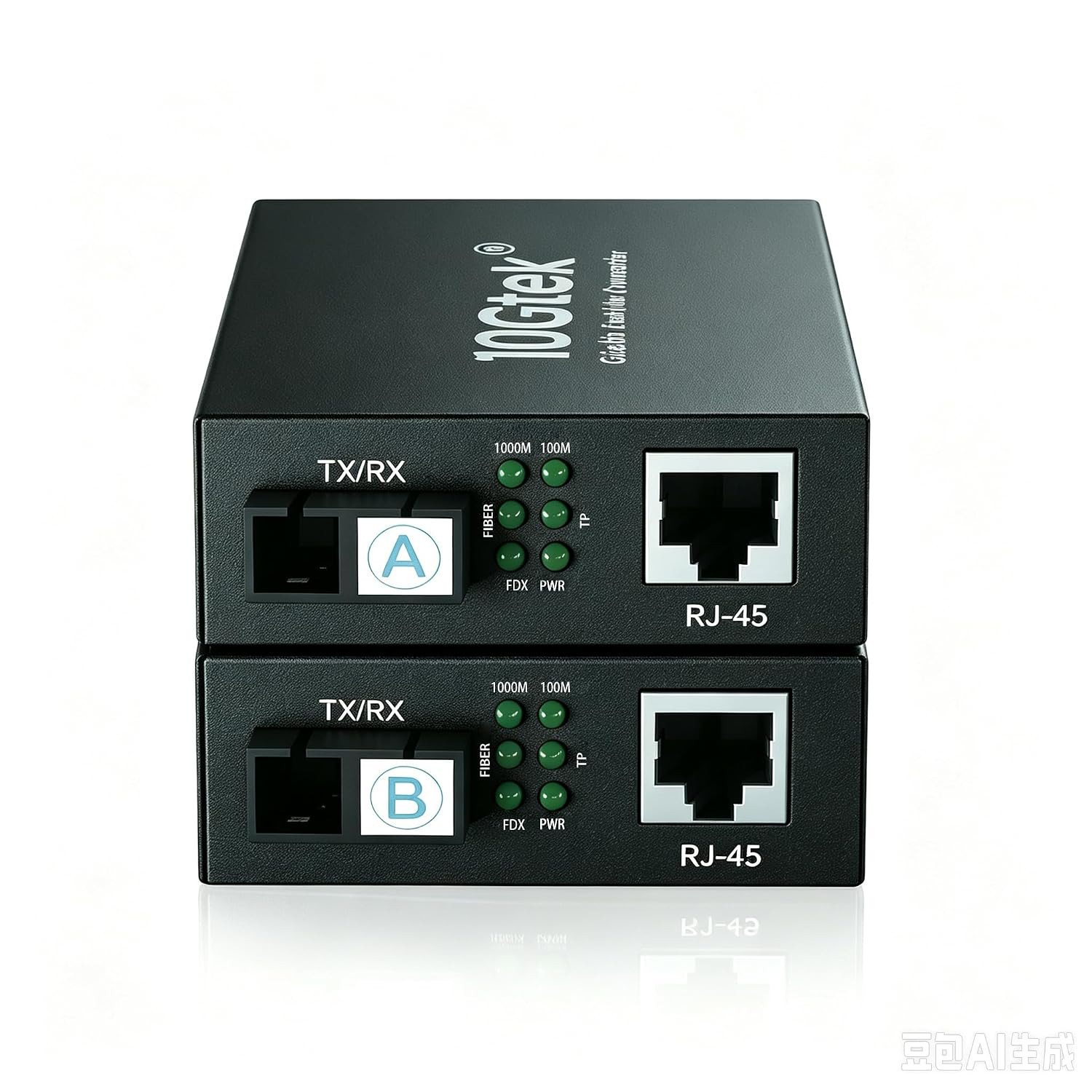

The Media Converter complies with IEEE 802.3z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications.
Optical Port​

• 1550nm/1310nm Single mode
• Transfer Distance: up to 20km
• Connectors: SC connector
• Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber

Ethernet Port

• Available speed: auto-detective 10/100/1000Mbps
• Full-Duplex and Half-Duplex auto-negotiation
• Connectors: RJ-45 Connector
• MDI/MDI-X connection auto-sensing

​​Input Voltage: AC100V~240V or DC36~72V, 50/60Hz

Output Voltage: 5V1A

UL Certified Power Supply ​​Input Voltage: AC100V~240V or DC36~72V, 50/60Hz Output Voltage: 5V1A Connector : DC Socket

• Strong anti-interference ability
• Lightning protection

• Extend or bridge networks cost-effectively using fiber cabling
• Provide connectivity to users in an isolated area of a large complex or in a separate building

• 10/100/1000Mbps auto-sensed, easily upgrade
• Full-duplex and half-duplex auto-sensed
• MDI/MDI-X Auto Negotiation
• 10/100/1000Mbps store-and-forward

• Extends distances up to 20km
• 10/100/1000Mbps store-and-forward
• Extremely low power consumption, low heat, stable performance

• FX: Light on when fiber speed is 1000Mbps, else light off
• TX: Light on when TP speed is 1000Mbps, else light off
• Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
• FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
• PWR: Light on when DC power on, else light off

• Seamless Conversion of SC Fiber to Copper – This fiber optic to ethernet media converter is built-in single mode offeri SFP LX Modules, which enables you to convert 1000BASE-LX Simplex SC fiber to 10/100/1000 Base-T RJ-45 copper media or vice versa.
• Extend Transmission Distance – By using this ethernet fiber media converter, you can easily extend link distance up to 20 kilometers via OS1/OS2 single mode fiber (SMF, SC, Simplex).
• Plug and Play – No software installation or configuration required. Hot-swappable design makes this ethernet fiber converter easy to install and troubleshoot.
• Reliable Auto-Negotiation Gigabit Connection – 10/100/1000Mbps Auto-Negotiation RJ45 Port supports Auto-MDI/MDIX Crossover and Half-Duplex / Full-Duplex Transfer Mode, bridging different network speeds and devices to a Gigabit fiber network.
• What You Get – A pair of Gigabit Ethernet to SC fiber media converter; 1* Power Supply (UL Certified, 5V-1A); 3-year Warranty, Technical Support.
