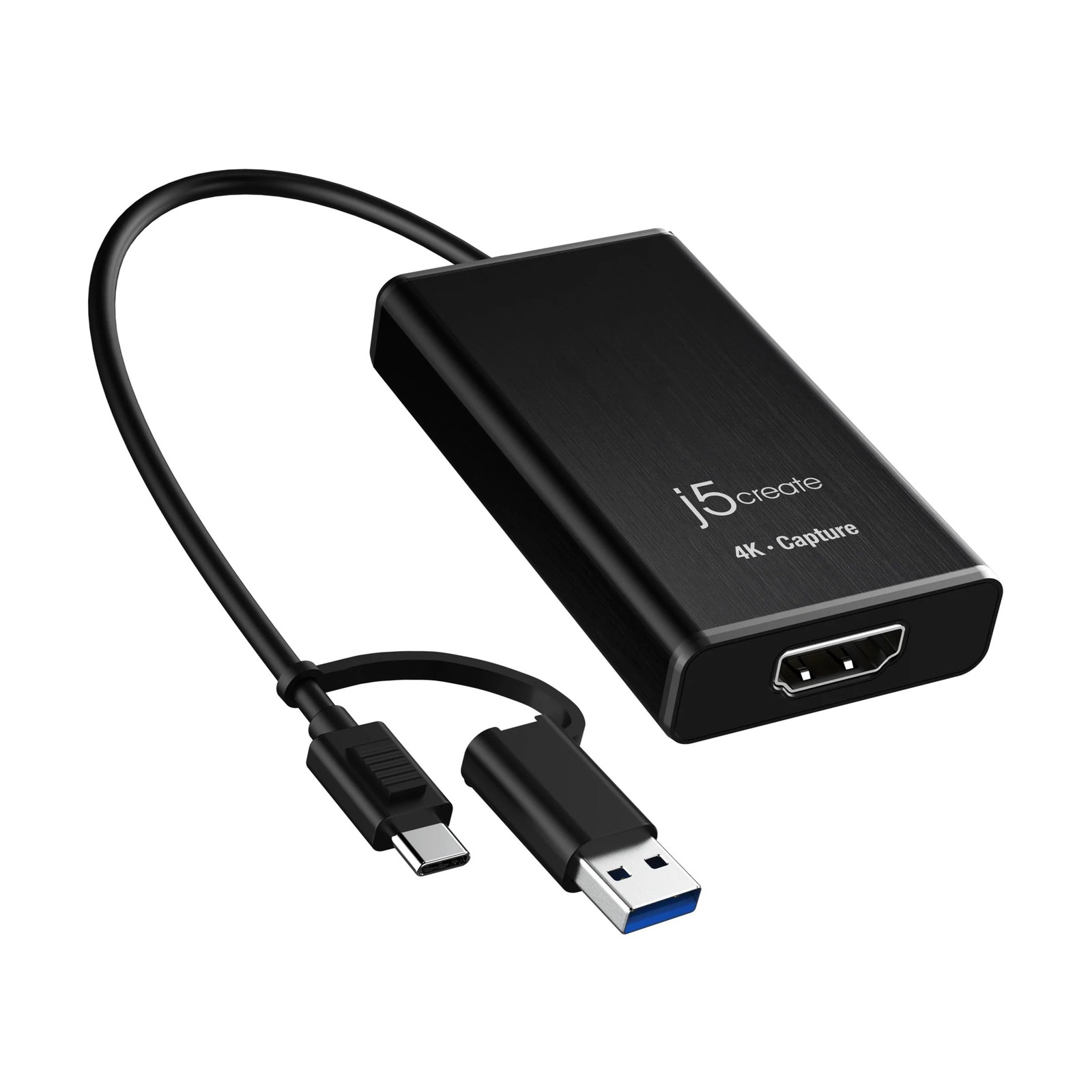

J5 Create JVA11 4K HDMI Video Capture Adapter J5 Create JVA11 4K HDMI Video Capture Adapter
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 4K HDMI Capture Adapter 1 x Quick Installation Guide (QIG)
Compatibility: PlayStation 4/5 Xbox Series X/S Xbox One X/S Switch gaming consoles
Product Description
This item is brand-new, factory sealed.
4K HDMI Capture Adapter
HDMI to USB-C 3.2 4K Capture Device
Windows / macOS / Chrome OS / Android Compatible
Model: JVA11
Record or stream high resolution video content with a compact 4K capture device. The USB-C cable includes a USB Type-A adapter for increased device compatibility and works with a variety of video capture software. USB 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
Use With Various Devices
Three HDMI Input Resolutions For Recording
Ablility To Capture 4K@30 FPS, 2K60 FPS, 1080P 120 FPS
Ideal for live streaming, broadcasting, and gaming
It works with OBS, XSplit, CameraFi, QuickTime, and other video streaming software.
Compatible with PlayStation 4/5, Xbox Series X/S, Xbox One X/S, and Switch gaming consoles.
Third-Party Software Support
Capture and Record in 4K Resolution For a Clear Visual Experience
Stream with Ultra-Low Latency and a High-Performance USB-C 3.2 Connection
No Driver Installation Required
Compliance with the UVC/UAC Standard
USB-C Cable Includes a Type-A Adapter for Added Compatibility
Ideal For a Variety Of Uses
Gaming Video Conferencing Live Streaming BroadcastingHardware
audio input
1 - HDMI Female
audio output
N/A
audio switcher
N/A
host connector
1 - USB-C 3.2 Gen 1 Female (Type-A to USB-C)
ports
1 - USB-C 3.2 Gen 1 (Host)
1 - HDMI Input
power source
N/A
video input
1 - HDMI Female
video output
N/A
video switcher
N/APerformance
audio channel
2.1 via HDMI
audio frequency
48 kHz
compressions
USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
USB 2.0: YUV4:2:0
hdmi input resolutions
3840 x 2160 at 30
hdr supported
No
headset
N/A
maximum capture capability
USB 3.0: 3840 x 2160 at 30
USB 2.0: 1280 x 720 at 30
maximum capture refresh rate
4K30 fps, 2K60 fps, 1080p120 fps
max display refresh rate
N/A
microphone
N/APower
input current
1.5A
input voltage
5V
output current
N/A
output voltage
N/A
power consumption
less than or equal 530mA
power delivery
N/APhysical Specifications
cable length
7.87 in. (20 cm)
color
Black
enclosure type
Aluminum
operating humidity
