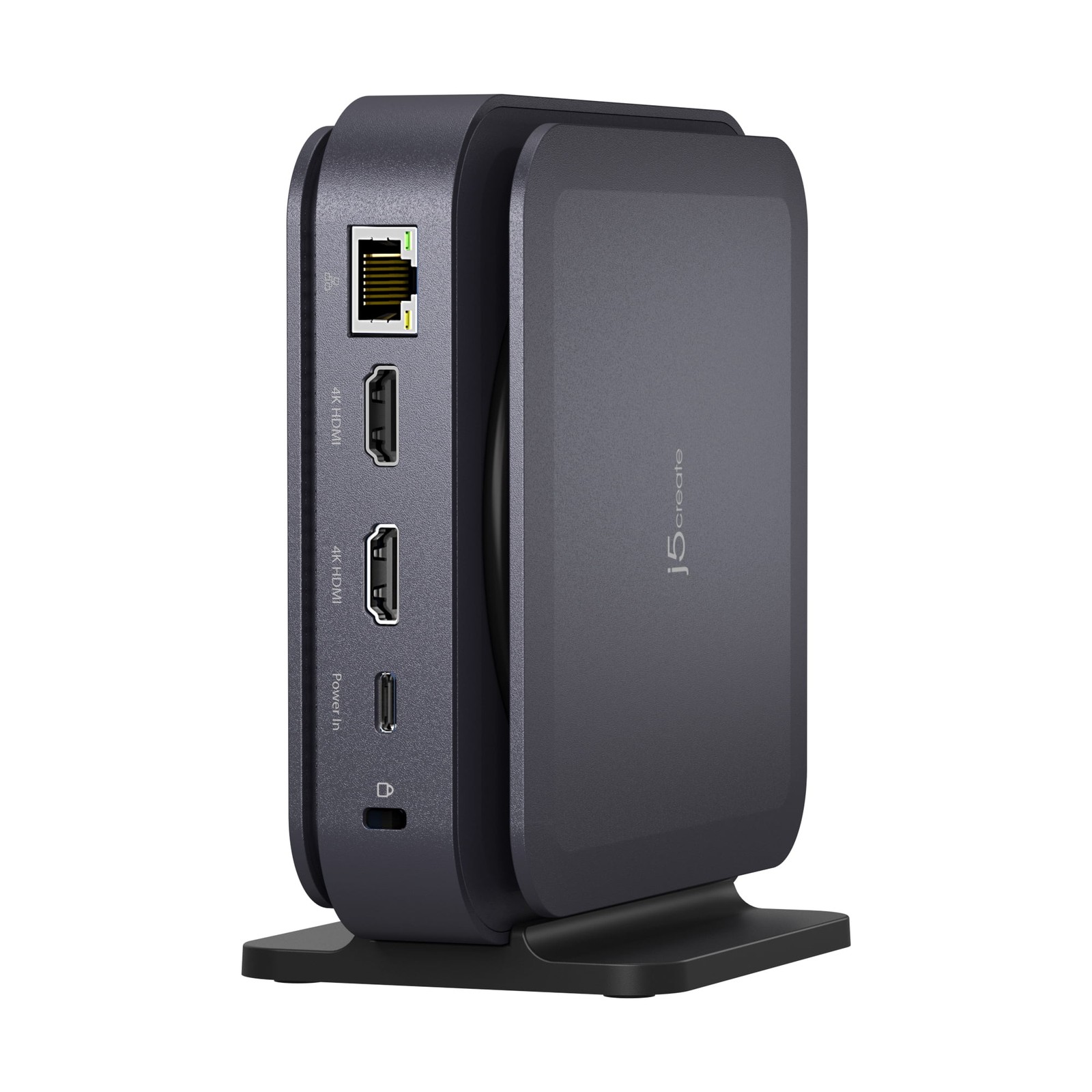

J5Create JCD3198 USB C Dual 4K HDMI Docking Station J5Create JCD3198 USB C Dual 4K HDMI Docking Station
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
Type-C Dock Dual 4K HDMI
140W Power Delivery 3.1 /Dual 4K HDMI/ Gigabit Ethernet / USB 10Gbps
Windows / macOS Compatible
Model: JCD3198
This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI outputs, USB ports, Gigabit Ethernet, SD/microSD card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook or other USB-C compatible laptops to a 4K monitor or TV.
With USB Power Delivery 3.1 it'll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C power adapter even if your laptop only has one USB-C port. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C ports location.
Through a single USB-C (Thunderbolt 3, 4, and USB4 compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!Hardware
Audio Supported
Yes
Host Connector
1 - USB-C Male (PD 3.1 130W, 28V / 4.65A)
Network Interface
Yes
Ports
1 - USB-C PD-in PD3.1 140W (28V/5A)
2 - USB-C 5Gbps and 10Gbps
2 - USBTM Type-A 5Gbps and 10Gbps
1 - Combo 3.5mm Audio Jack
1 - HDMITM (USBTM display max resolution 4K at 30Hz)
1 - HDMITM (DPTM-Alt max resolution 4K at 60Hz)
1 - RJ45 Gigabit Ethernet
1 - SDTM/microSDTM 3.0
Power Source
Bus-powered or self-powered
Video Output
2- HDMITM FemalePerformance
Audio Channel
2.1 via HDMITM
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160Power
Input Current
Up to 5A
Input Voltage
Up to 28V
Output Current
Up to 4.65A
Output Voltage
Up to 28V
Power Consumption
is less than or equal to 900 mA
Power Delivery
Up to 140W via USB-CPhysical Specifications
Cable Length
2.28 ft (69.5 cm)
Color
Dark Blue
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116oF (-1 to 41oC)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155oF (-17 to 68oC)Package Contents
1 - JCD3198 Type-C Dock Dual 4K HDMITM
1 - Dock Holder
1 - Quick Installation Guide (QIG)Item Dimension (L inchxW inchxH inch)
6 x 6 x 3
Weight
1.00lb
Warranty Information
2 Year Shipping
Most orders placed prior to 11AM PST ship same business day
Some lightweight items ship Postal and can be shipped to a PO BOX. Most other orders will ship via UPS or FedEx. Please note we cannot ship UPS or FedEx to PO Box addresses.
Expedited orders will ship 2nd Day Air
Returns
This item is eligible for return within 30 days of delivery. Opened items must be in re-sellable condition including original packaging and all accessories.
Please visit our Returns Page for more information on Excluded Items, Damage Claims, and more details on requesting RA information.
