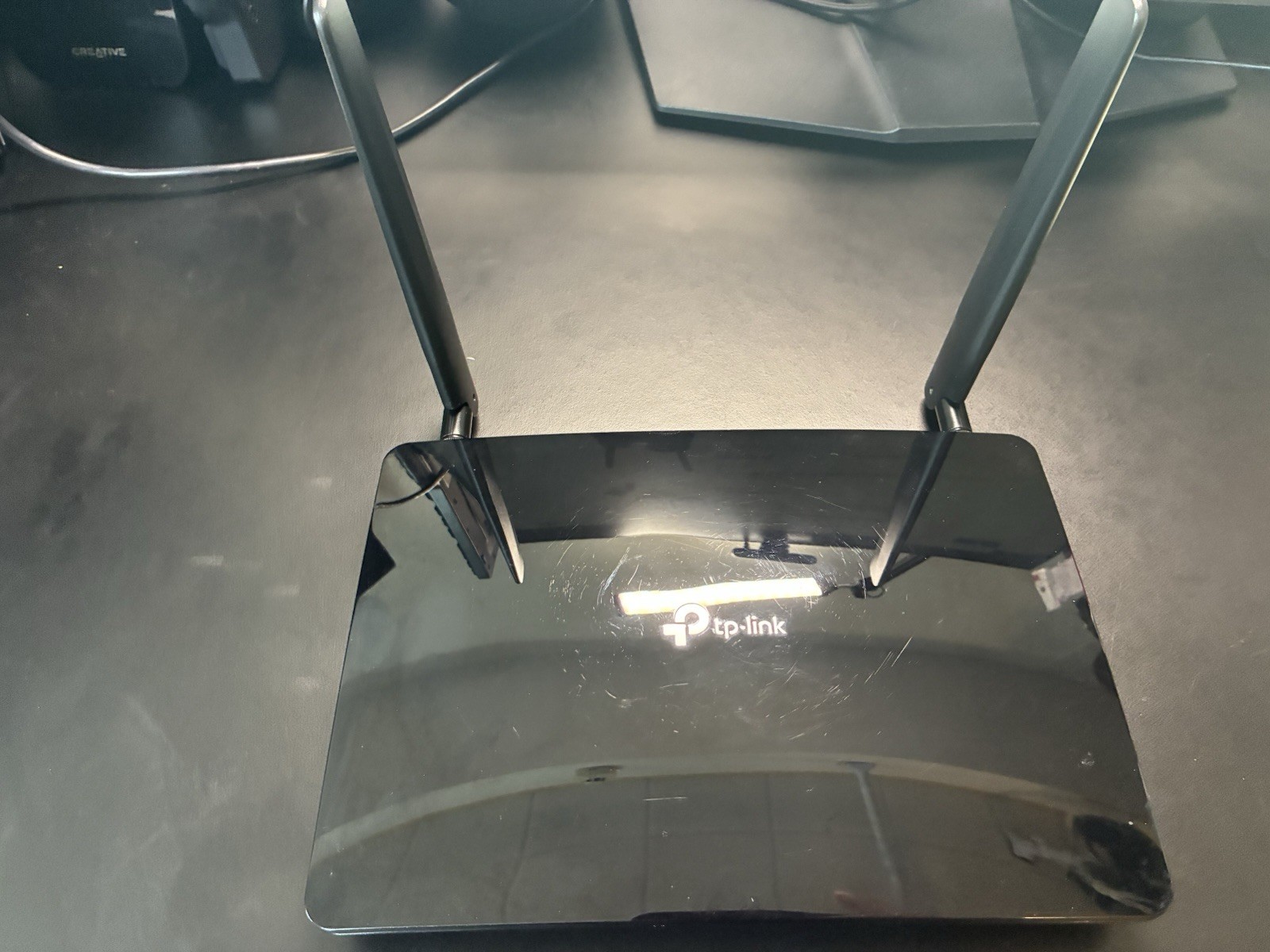

JAPAN Ver. TP-LINK ARCHER MR600If you are planning a temporary visit to Japan for travel or business and want to ensure full compliance with local laws, please consider purchasing this item

• The last photo shows the Japanese "Giteki" (Technical Conformity) mark. Please note that using parallel imports or older overseas versions without this mark in Japan may violate the Japanese Radio Law.
• Using Wi-Fi routers or smartphones without the Giteki mark in Japan is considered the establishment and operation of an illegal radio station, and is subject to the following penalties:

• General violations: Up to 1 year in prison or a fine of up to 1 million JPY.

• Interfering with critical communications (police, fire, aviation, etc.): Up to 5 years in prison or a fine of up to 2.5 million JPY.

• It is extremely rare for the police to immediately raid a private home simply because an individual is using a few uncertified routers. However, it is a different story if illegal, high-output overseas devices cause radio interference (noise or signal disruption) to local mobile carriers, TV/radio broadcasts, or emergency and fire communications. Every year, there are numerous cases where the Ministry of Internal Affairs and Communications uses its radio monitoring systems (such as DEURAS) to pinpoint the source, resulting in actual arrests and crackdowns through joint operations by the Regional Bureau of Telecommunications and the police.
• Although strict crackdowns on minor private use are rare, if you want peace of mind and wish to be on the safe side, please purchase this certified item.And once you are done using it, please feel free to resell it on !MIC Radio Use Portal｜Radio Monitoring｜Technical Conformity Mark and the purchase and use of radio equipment

• Hardware FeaturesArcher MR600(EU)5.0_datasheet7100002890_Archer style="font-family: "Segoe UI"; font-size: 14px;">
• 1 × 10/100/1000 Mbps LAN/WAN Port
• 3 × 10/100/1000 Mbps LAN Ports
• 1 × Nano SIM Card Slot
• 2 × External Antenna Connectors (SMA Female)

Buttons

• WPS/Reset Button
• Wi-Fi On/Off Button
• Power On/Off Button

Power Supply

Power Adapter

• Input: 100–240 V~, 50/60 Hz, 0.6 A
• Output: 12 V DC, 1.5 A

Dimensions

202 × 141 × 33.6 mm

Antennas

2 × Detachable 4G LTE Antennas

Wireless FeaturesWi-Fi Standards

• IEEE 802.11a/n/ac at 5 GHz
• IEEE 802.11b/g/n at 2.4 GHz

Frequency Bands

2.4 GHz and 5 GHz

Wireless Speeds

• 300 Mbps at 2.4 GHz
• 867 Mbps at 5 GHz

Receiver Sensitivity

5 GHz

• 802.11a, 54 Mbps: −77 dBm
• 802.11ac, HT20: −73 dBm
• 802.11ac, HT40: −68 dBm
• 802.11ac, HT80: −64 dBm
• 802.11n, HT20: −77 dBm
• 802.11n, HT40: −73 dBm

2.4 GHz

• 802.11g, 54 Mbps: −74 dBm
• 802.11n, HT20: −72 dBm
• 802.11n, HT40: −69 dBm

Wireless Functions

• Wi-Fi On/Off
• Wi-Fi Scheduling
• WMM
• Wireless Statistics

WAN Failover

Supported

Wireless Security

• 64/128-bit Encryption

Transmit Power

• Less than 20 dBm at 2.4 GHz
• Less than 23 dBm at 5 GHz

Supported Mobile Network Bands

4G FDD-LTE

• Bands 1, 3, 5, 8, 18, 19, 26, and 28

4G TDD-LTE

• Band 41

WCDMA

• Bands 1, 5, 6, 8, 9, and 19

Software FeaturesQuality of Service

• Bandwidth Control

Security

• DoS Protection
• IPv4 SPI Firewall
• IPv6 Firewall
• IP and MAC Address Binding
• Access Control

WAN Connection Types

• Dynamic IP
• Static style="font-family: "Segoe UI"; font-size: 14px;">
• TP-Link Cloud
• Local Management
• Remote Management

DHCP

• Address Reservation
• DHCP Client List
• DHCP Server

Port Forwarding

• ALG
• Virtual Server
• Port DNS
  • PPTP VPN
  • OpenVPN
  • IPSec VPN
  Access Control
  • Parental Controls
  • Local Management Control
  Protocols
  • 1 × 2.4 GHz Guest Network
  • 1 × 5 GHz Guest Network
  Other FeaturesNetwork Services Enabled by Default

  Web Server

  Used for device management and configuration via HTTP or HTTPS.

  • Ports: 80 and 443
  • Protocol: TCP

  IPv6 DHCP Server

  Used for IPv6 address assignment through DHCPv6.

  • Port: 5525
  • Protocol: UDP
  • Port: 5561
  • Protocol: UDP

  DNS

  Provides Domain Name System services.

  • Port: 53
  • Protocol: TCP

  App Management

  Used for device management and configuration through the mobile application.

  • Port: 22
  • Protocol: TCP
  • Port: 20002
  • Protocol: TCP

  CWMP

  CPE WAN Management Protocol.

  • Port: 7547
  • Protocol: TCP
  Certifications
  • Archer MR600
  • Power Adapter
  • Ethernet Cable
  • Quick Installation Guide
  Operating Environment
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Storage Humidity: 5% to 90% RH, non-condensing
