JDSU Lumentum 10G XFP Tunable DWDM 80km Transceiver JXP01TMAC1CX5GE2 - Tested - Used Lumentum 10G Tunable XFP

DWDM C-Band 80km Optical Transceiver | LC Connector | Model: JXP01TMAC1CX5GE2

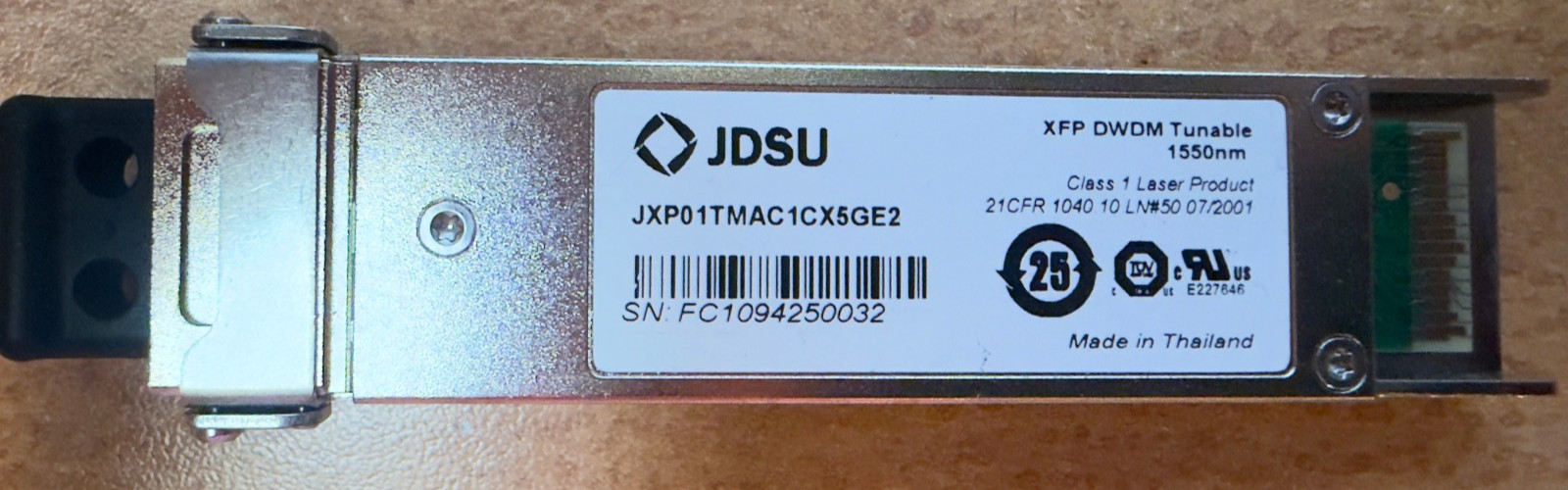

Representative image. The device shipped is a genuine JDSU Lumentum JXP01TMAC1CX5GE2 XFP transceiver unit.

HIGH-CAPACITY LONG-REACH DWDM OPTICS

• CONDITION: **USED / TESTED**. Clean pull from operational, low-wear enterprise network deployment environments. Thoroughly inspected, optical port cleaned, and fully verified for laser TX/RX sensitivity.
• TUNABLE C-BAND CAPABILITY: Supports full C-band wavelength tuning with 50 GHz channel spacing. Employs a premium Tunable SG-DBR laser transmitter paired with a highly sensitive APD receiver.
• LONG DISTANCE 80KM ZR REACH: Engineered for long-haul transport infrastructures, supporting high data transfer rates from 9.95 Gbps up to 11.35 Gbps over standard single-mode optical fiber (SMF) up to 80 km.
• MSA MULTI-RATE COMPLIANCE: Conforms strictly to the XFP Multisource Agreement (MSA) standards. Ideal for SONET/SDH, 10GBASE-ZR/ZW Ethernet, and 10G Fibre Channel systems.

Technical Specifications Summary Manufacturer Lumentum (Formerly JDSU) Model Number (P/N) **JXP01TMAC1CX5GE2** Device Type 10G XFP Tunable DWDM ZR Optical Transceiver Form Factor **XFP** (Small Form-factor Pluggable) Data Transfer Rate **Multi-rate 9.95 Gbps to 11.35 Gbps** Wavelength Tuning **Full C-Band** (1528.77nm - 1563.86nm range, 50 GHz ITU Grid Channel Spacing) Cabling Interface **Duplex LC Connector** Cable Type / Distance Reach Single-mode Fiber (SMF) up to **80 km (49.7 miles)** Transmitter Laser Type Tunable SG-DBR Laser Receiver Photodiode APD (Avalanche Photodiode) Transmit Power Output -7 to +3 dBm (Tx: -1 to +3 dBm typical) Receiver Optical Sensitivity -24 to -21.5 dBm Standards Compliance ITU-T G.698.1, IEEE 10GBASE-ZR/ZW, 10GFC, XFP MSA (INF8077i) Operating Temperature -5°C to +70°C (Commercial Temperature Range)

⚡ Hardware Notice: This is a high-power tunable DWDM optical transceiver. Ensure that your host network switch, router, or optical transmission shelf possesses a physical XFP port and supports tunable optical parameters. **Fiber optic patch cables, optical attenuators, and network equipment are NOT included.**

Warranty & Assurance 30-Day Functionality Guarantee

We guarantee this Lumentum XFP DWDM transceiver powers up successfully, interfaces via DOM/DDM commands, transmits optical laser light, and functions continuously for 30 days.

• Covers SG-DBR tunable laser emission, APD RX sensitivity, and DOM diagnostic chip.
• Buyer is responsible for return shipping costs.

Secure Packing & Dispatch

All transceivers are placed inside high-quality static shielding bags with protective optical dust caps installed, packaged inside bubble cushioned envelopes or rigid cardboard boxes for safe delivery.

• Handling Time: 1 Business Day.
• Tracking details provided instantly upon dispatch.
