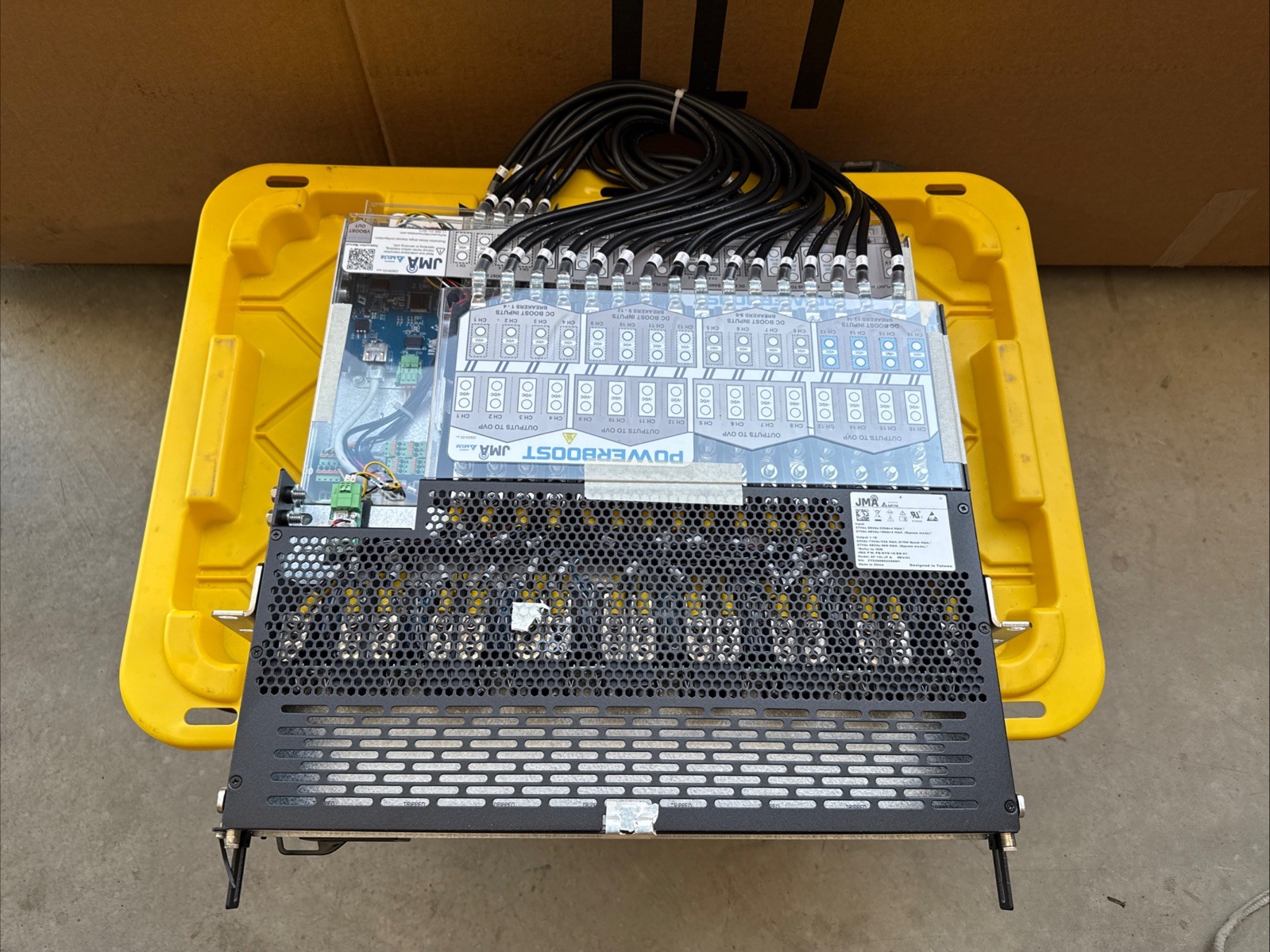

JMA PowerBoost is a rack-mounted voltage boost unit that maintains acceptable voltage at the
RRH by sensing system characteristics and adjusting its output voltage accordingly. PowerBoost makes use of telemetry data from suitably equipped Raycap OVP units as a reference point for maintaining RRH voltage. The PowerBoost unit is comprised of the following:
Product name: PB-SYS-16-BB-01 (total 3U high), consists of 1 OMM unit married with 2 boost racks (single Orion controller and 1 to 8 boost modules); supports up to 16 channels
• Upper rack frame (19 inch, 1U high) holds 16 individual circuit breakers (PB-BR-XX purchased separately) for boost outputs; referred to as OMM output management module.
• Middle rack frame (19 inch, 1U high) holds an Orion controller and up to 4 boost modules
(PB-PSU-162-BB purchased separately, 2 channels per module); referred to as "boost rack."
• Lower rack frame (19 inch, 1U high) holds up to 4 boost modules (PB-PSU-162-BB purchased separately, 2 channels per module); referred to as "boost rack."
