MB Model

– JNF697-Q170 Series/ MINI-ITX

Part No

Standard

TPM1.2

TPM2.0

– HBJC501F697-Q17-B
– HBJC501F697WQ17-B (WIFI)

– HBJC501F697-Q17T1
– HBJC501F697WQ17T1 (WIFI)

– HBJC501F697-Q17T2
– HBJC501F697WQ17T2 (WIFI)

BIOS

– AMI 16MB SMT Flash ROM

CPU/Chipset

– Intel® LGA 1151 Socket 6th & 7th generation Core i7 / i5 / i3 /Pentinum CPU (35W)
– Intel® Q170 chipset
Notes: When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

Memory

2 * SO-DIMM slots / dual channel DDR4-2133 up to 32GB total

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– 1 * Full-size Mini-PCI Express slot

Network

– 2 * Intel Gigabit LAN (i219LM, i211AT)

Rear Panel I/O

– 4 * USB 3.0
– 1 * HDMI(Max Resolution : 4096×2160@24Hz)
– 2 * DP(Max Resolution : 4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-in, Line-out, MIC
– 2 * RS232/422/485
– 4 * RS232
– 2 * Antenna holes (WIFI only)
– 1 * DC-In jack

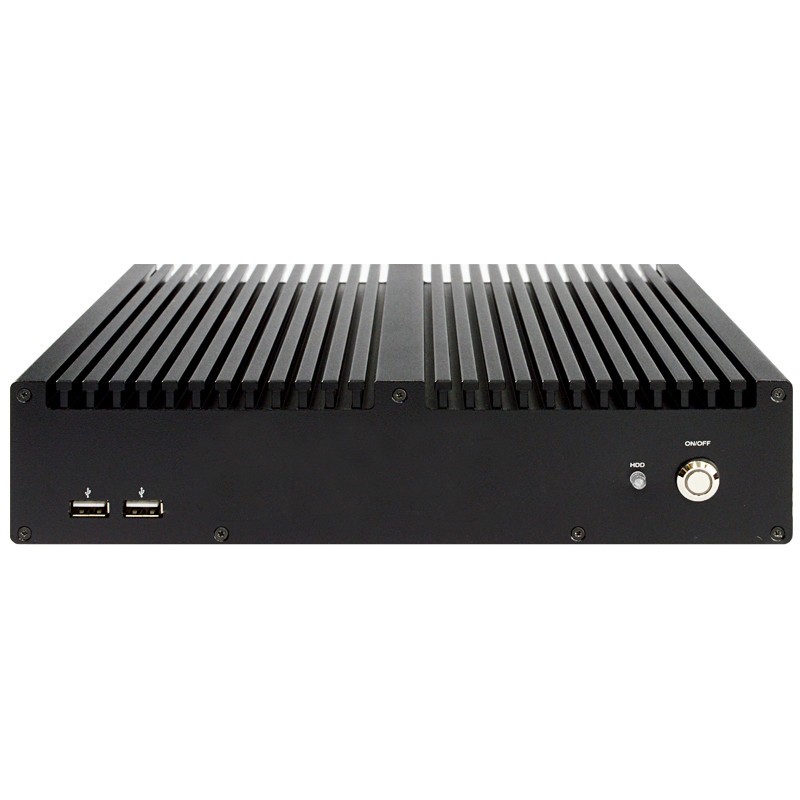

Front Panel I/O

– 1 * Power button, 1 * HDD LED
– 2 * USB2.0

Power Source

– AC to DC Adapter 19VDC 6.3A 120W

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Temperature

– Operating Temperature: -20 ~ 50° C (The test environment is closed and windless)
– Storage Temperature: -10 ~ 70° C
– Humidity : 90% , non-condensing

Dimensions

– 264 (W) x 199.4 (D) x 58 (H) mm

Packing

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm

OS Support

– Skylake CPU support Win7, Win8, Win10.
– Kabylake CPU only support Win10.
