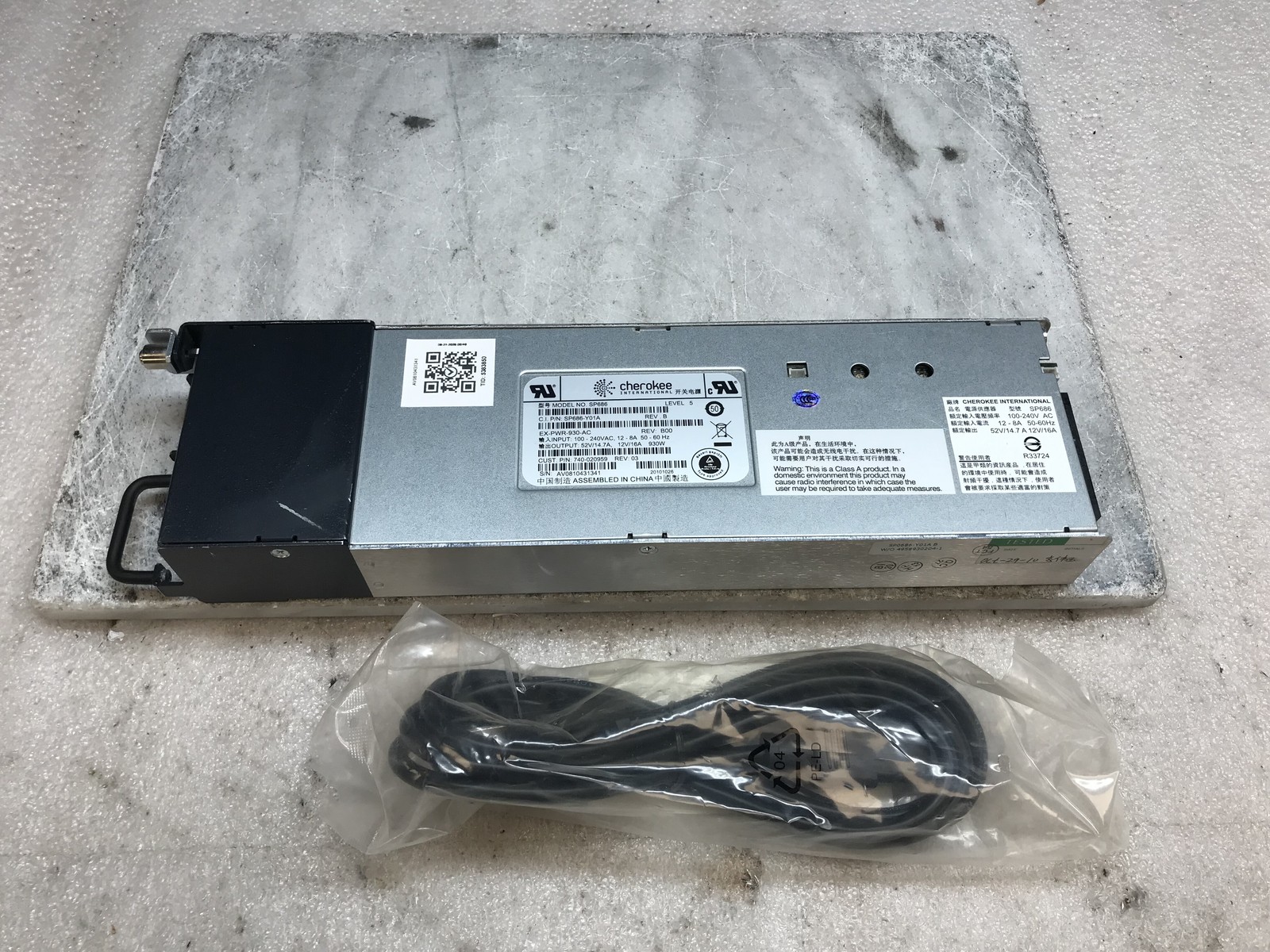

Listing Grid template example Product Photo Description Juniper Cherokee EX4200 EX3200 930W AC PSU SP686-Y01A 740-020959 - Tested Juniper Cherokee EX4200 EX3200 930W AC PSU SP686-Y01A 740-020959 - Tested

The Juniper / Cherokee SP686-Y01A is a 930W AC power supply designed for compatible Juniper EX3200 and EX4200 Series Ethernet switches. This high-output power supply provides system power as well as the higher-voltage output used for PoE-equipped switch configurations.

Its field-replaceable design allows quick installation and removal from compatible switch chassis, making it suitable as a replacement or spare power supply for enterprise networking Cherokee International

Juniper Model: EX-PWR-930-AC

Manufacturer Model: SP686

Part Number: SP686-Y01A

Juniper Part Number: 740-020959

Maximum Power Output: 930W

AC Input: 100-240V AC

Input Frequency: 50/60Hz

Input Current: 12-8A

DC Output 1: 54V DC, 14.7A

DC Output 2: 12V DC, 16A

Cooling: Integrated Fan

Type: AC Switch Power Supply / FRU

Compatible Series: Juniper EX3200 and EX4200

Key Features

• 930W maximum power output
• Designed for Juniper EX3200 and EX4200 Series switches
• Hot-removable and hot-insertable FRU design in supported EX4200 configurations
• Integrated cooling fan
• Suitable for PoE-equipped Juniper switch configurations
• OEM Juniper part number 740-020959
• Cherokee International SP686-Y01A power supply

Compatibility Note

• Compatible with applicable Juniper EX3200 and EX4200 models
• EX-PWR-930-AC is not compatible with EX4200-24PX or EX4200-48PX switches; those models require EX-PWR2-930-AC or EX-PWR3-930-AC power supplies

Important Notes

• Used unit may show scratches, scuffs, and other cosmetic blemishes from previous installation and normal use
• Please verify compatibility with your specific Juniper switch model before purchase

Included

• 1x Juniper / Cherokee SP686-Y01A 930W Power Supply
• 1x AC Power Cable

Not Included

• Original packaging
• User manual

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S2 - Non-Data

Device has been assessed as a device that does not contain data, or data has been physically removed.

Mpn
SP686-Y01A EX-PWR-930-AC 740-020959 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Notes: Unit powered on successfully, unit fan fully operational. Shipping
