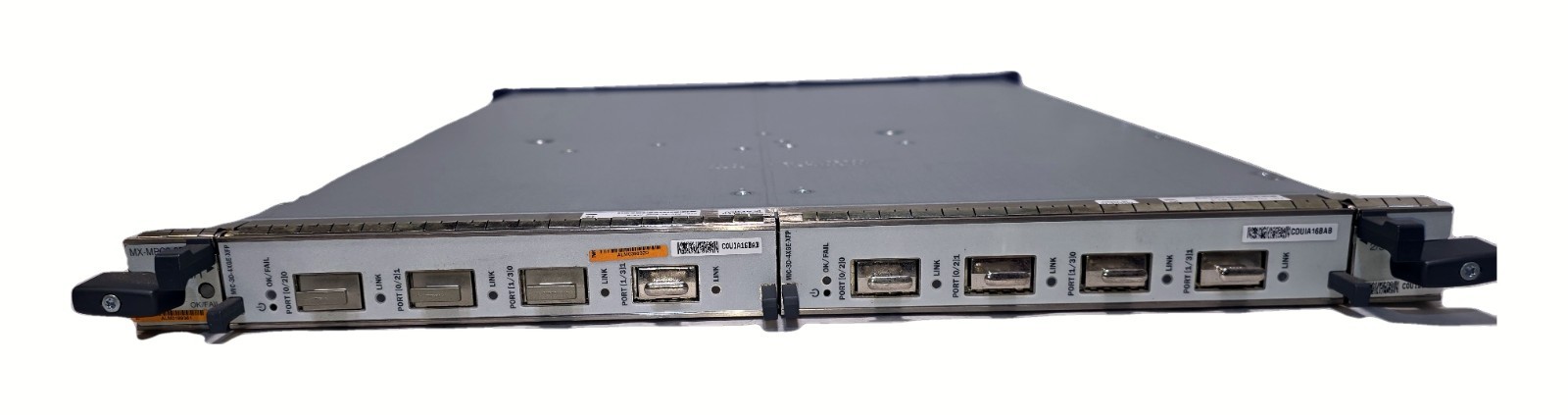

Juniper MX-MPC2-3D Line Card 2x MIC-3D-4XGE-XFP-B 8x 10GbE XFP MX240 MX480 MX960
Price: US $299.99
Zombie Components LLC Sylmar, California Juniper Networks MX-MPC2-3D MX-MPC2-3D

Juniper Networks MX-MPC2-3D Modular Port Concentrator line card for MX Series 3D Universal

Edge Routers. The card carries two Junos Trio chipsets and two MIC bays, labeled PIC 0/1 and

PIC 2/3. Both bays are populated with Juniper MIC-3D-4XGE-XFP-B 4-port 10-Gigabit Ethernet

XFP MICs, giving eight 10GbE XFP ports on this assembly.

Condition

60 Day Money Back Guarantee. From spectrum spare inventory.

Details and highlights
  • Both MIC bays populated with MIC-3D-4XGE-XFP-B MICs. The assistant's record did not mention.
  • The MICs at all; they are a large share of the assembly value. Eight 10GbE XFP ports total.
  • MICs are the -B hardware revision (later rev than plain MIC-3D-4XGE-XFP).
  • Rear midplane protective connector cover present and installed.
  • Both ejector levers with captive screws present and intact.
  • Both MIC latch levers present.
  • EMI gasket fingers along the top edge complete, none bent or missing.
  • Sheet metal is straight, no bent faceplate or crushed corners.
Specifications ParameterValue MPNMX-MPC2-3DBrandJuniper NetworksTypeMPC2 Modular Port Concentrator line card, MX SeriesForwardingtwo Junos Trio chipsetsMIC baystwo, labeled PIC 0/1 and PIC 2/3Installed MICs2x MIC-3D-4XGE-XFP-B, four 10GbE XFP ports eachTotal ports as configuredeight 10GbE XFPPort speedsLAN-PHY 10.3125 Gbps, WAN-PHY 9.953 GbpsMaximum MTU per MIC9192 bytesMPC2 weight14 lb (6.4 kg)MPC2 power requirement5.7 A @ 48 V (274 W)MIC weight1.1 lb (0.5 kg) each Included

1x Juniper MX-MPC2-3D MPC2 line card2x Juniper MIC-3D-4XGE-XFP-B 4-port 10GbE XFP MICs, installedRear midplane protective connector cover

Not included:
XFP optical transceivers
XFP dust plugs
Router chassis, fan trays, power supplies, routing engines
Software, licenses, cables, documentation, original packaging

Compatibility and requirements

Juniper MX240, MX480 and MX960 routers require Junos OS Release 10.1 or later.

Juniper MX2010 and MX2020 routers require Junos OS Release 12.3 or later.

XFP optical transceivers are required to bring up any port and are not included.

This is a line card only. A supported MX Series chassis with power and cooling is required.

Quality control

Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.

Shipping

Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.

We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.

International shipments may be delayed or cancelled due to EAR and ITAR export compliance requirements. The vast majority of our items need no export license and ship under EAR99 and other exemptions; items that require a license are indicated in the listing.

Returns, warranty, and money-back guarantee

This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.

All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.

If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.

Data privacy

We do not keep or share your information anywhere. Your information resides only on and is available to us only for a limited time while we interact with you on an inquiry, order, or return, per usage policies.

Zombie Components LLC ยท Sylmar, California
