TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.

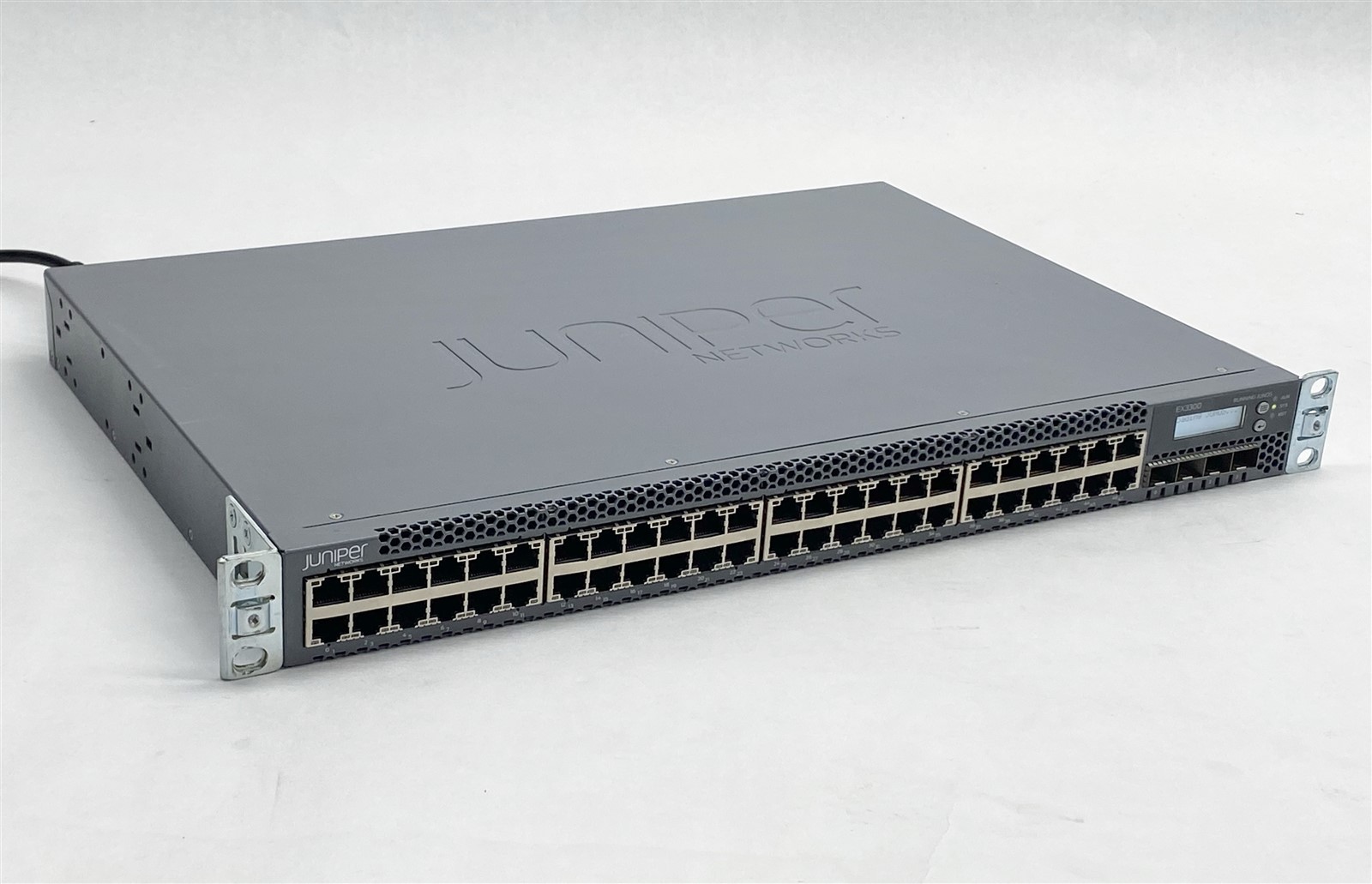

COMPONENTS INCLUDED IN THIS sale:• (1) - JUNIPER NETWORKS EX3300-48T EX SERIES 48-PORT GIGABIT 4-PORT SFP+ SWITCH
• (1) - POWER CABLE
• (1) - PAIR OF RACKMOUNT EAR
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:The following is the Console Log from this item:
U-Boot 1.1.6 (Jun 4 2012 - 01:58:27)
Board: EX3300-48T 5.14
EPLD: Version 04.130327 (0x02)
DRAM: Initializing (1GB)
Flash: 8 MB
Firmware Version: --- 01.00.00 ---
USB: scanning bus for devices...
Root Hub 0: 2 USB Device(s) found
Root Hub 1: 1 USB Device(s) found
scanning bus for storage devices... 1 Storage Device(s) found
ELF file is 32 bit
Consoles: U-Boot console
FreeBSD/arm U-Boot loader, Revision 1.1
(builder@greteth, Mon Jun 4 01:40:05 UTC 2012)
Memory: 1024MB
bootsequencing is enabled
bootsuccess is set
new boot device = disk0s1:
Loading /boot/defaults/loader.conf
/kernel text=0x867075 data=0x41ed8+0xde828 syms=[0x4+0xf4770+0x4+0xcacfb]
Hit [Enter] to boot immediately, or space bar for command prompt.
Booting [/kernel]...
Kernel entry at 0x1400100 ...
GDB: debug ports: uart
GDB: current port: uart
KDB: debugger backends: ddb gdb
KDB: current backend: ddb
Copyright (c) 1996-2014, Juniper Networks, Inc.
All rights reserved.
Copyright (c) 1992-2006 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
The Regents of the University of California. All rights reserved.
JUNOS 12.3R6.6 #0: 2014-03-13 06:57:48 UTC
/>can't re-use a leaf (all_slot_serialid)!
CPU: Early Feroceon 88FR571 rev 0 (Marvell core)
cpu55: Early Feroceon 88FR571 revision WB enabled EABT branch prediction enabl
ed
32KB/32B 4-way Instruction cache
32KB/32B 4-way write-back-locking-C Data cache
real memory = 1073741824 (1024 MB)
avail memory = 1029857280 (982 MB)
SOC: Marvell MV78100, TClock 200MHz
Security policy loaded: Junos MAC/veriexec (mac_veriexec)
MAC/veriexec fingerprint module loaded: SHA256
MAC/veriexec fingerprint module loaded: SHA1
ETHERNET SOCKET BRIDGE initialising
Initializing EXSERIES properties ...
mbus0: on motherboard
ic0: at mem 0xf1020200-0xf102023b on m
bus0
timer0: at mem 0xf1020300-0xf102032f irq 8 on mbus0
gpio0: at mem 0xf1010100-0xf101011f irq 56,
57,58,59 on mbus0
uart0: at mem 0xf1012000-0xf101201f irq 12 on mbus0
uart0: console (9600,n,8,1)
uart1: at mem 0xf1012100-0xf101211f irq 13 on mbus0
ehci0: at mem 0xf1050000-0xf1050fff irq
72,16 on mbus0
usb0: EHCI version 1.0
usb0 on ehci0
usb0: USB revision 2.0
uhub0: Marvell EHCI root hub, class 9/0, rev 2.00/1.00, addr 1
uhub0: 1 port with 1 removable, self powered
umass0: STMicroelectronics ST72682 High Speed Mode, rev 2.00/2.10, addr 2
ehci1: at mem 0xf1051000-0xf1051fff irq
72,17 on mbus0
usb1: EHCI version 1.0
usb1 on ehci1
usb1: USB revision 2.0
uhub1: Marvell EHCI root hub, class 9/0, rev 2.00/1.00, addr 1
uhub1: 1 port with 1 removable, self powered
ehci2: at mem 0xf1052000-0xf1052fff irq
72,18 on mbus0
usb2: EHCI version 1.0
usb2 on ehci2
usb2: USB revision 2.0
uhub2: Marvell EHCI root hub, class 9/0, rev 2.00/1.00, addr 1
uhub2: 1 port with 1 removable, self powered
mge0: at mem 0xf1072000-0xf1073fff irq 41,
42,43,40,70 on mbus0
mge0: hardware MAC address 84:b5:9c:31:13:bf
miibus0: on mge0
e1000phy0: on miibus0
e1000phy0: 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseTX-FDX, auto
i2c0: at mem 0xf1011000-0xf101101f on mbus0
8564 rtc0: on i2c0
poe0: on i2c0
poe_attach: re-types method failed
device_attach: poe0 attach returned 19
i2c1: at mem 0xf1011100-0xf101111f on mbus0
pcib0: at mem 0xf1040000-0xf1041ff
f,0xe8000000-0xebffffff on mbus0
pci0: on pcib0
mpfe0: mem 0xe8000000-0xebffffff ir
q 112 at device 1.0 on pci0
mpfe0: 0x100000 bytes of rid 0x10 res 3 failed (0, 0xffffffff).
pcib1: at mem 0xf1080000-0xf1081ff
f,0xec000000-0xefffffff on mbus0
pci1: on pcib1
mpfe1: mem 0xec000000-0xefffffff ir
q 113 at device 1.0 on pci1
mpfe1: 0x100000 bytes of rid 0x10 res 3 failed (0, 0xffffffff).
syspld0 at mem 0xf9000000-0xf90fffff on mbus0
cfi0: at mem irq 1
on mbus0
Initializing product: 114 ..
bmeb: bmeb_lib_init done 0xc41bf800, addr 0xc1d8272c
bme0:Virtual BME driver initializing
Timecounter "CPU Timer" frequency 200000000 Hz quality 1000
###PCB Group initialized for udppcbgroup
###PCB Group initialized for tcppcbgroup
da0 at umass-sim0 bus 0 target 0 lun 0
da0: Removable Direct Access SCSI-2 device
da0: 40.000MB/s transfers
da0: 1000MB (2048000 512 byte sectors: 64H 32S/T 1000C)
Kernel thread "wkupdaemon" (pid 46) exited prematurely.
Trying to mount root from ufs:/dev/da0s1a
Invalid time in real time clock.
Check and reset the date immediately!
Attaching /packages/jbase via /dev/mdctl...
Mounted jbase package on /dev/md0...
Verified manifest signed by PackageProduction_12_3_0
Verified jboot signed by PackageProduction_12_3_0
Verified jbase-ex-12.3R6.6 signed by PackageProduction_12_3_0
Mounted fips-mode-arm package on /dev/md2...
Verified manifest signed by PackageProduction_12_3_0
Verified fips-mode-arm-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jcrypto-ex package on /dev/md4...
Verified manifest signed by PackageProduction_12_3_0
Verified jcrypto-ex-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jdocs-ex package on /dev/md6...
Verified manifest signed by PackageProduction_12_3_0
Verified jdocs-ex-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jkernel-ex-3300 package on /dev/md8...
Verified manifest signed by PackageProduction_12_3_0
Verified jkernel-ex-3300-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jpfe-ex33x package on /dev/md10...
Verified manifest signed by PackageProduction_12_3_0
Verified jpfe-ex33x-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jroute-ex package on /dev/md12...
Verified manifest signed by PackageProduction_12_3_0
Verified jroute-ex-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jswitch-ex package on /dev/md14...
Verified manifest signed by PackageProduction_12_3_0
Verified jswitch-ex-12.3R6.6 signed by PackageProduction_12_3_0
Mounted jweb-ex package on /dev/md16...
Verified manifest signed by PackageProduction_12_3_0
Verified jweb-ex-12.3R6.6 signed by PackageProduction_12_3_0
Executing />Automatic reboot in progress...
Media check on da0 on ex platforms
** /dev/da0s1a
FILE SYSTEM CLEAN; SKIPPING CHECKS
clean, 36483 free (27 frags, 4557 blocks, 0.0% fragmentation)
** /dev/da0s3e
FILE SYSTEM CLEAN; SKIPPING CHECKS
clean, 61292 free (332 frags, 7620 blocks, 0.5% fragmentation)
Computing slice and partition sizes for /dev/da0 ...
savecore: could not be determined
No dump exists
** /dev/da0s3d
FILE SYSTEM CLEAN; SKIPPING CHECKS
clean, 188849 free (41 frags, 23601 blocks, 0.0% fragmentation)
** /dev/da0s4d
FILE SYSTEM CLEAN; SKIPPING CHECKS
clean, 31603 free (27 frags, 3947 blocks, 0.1% fragmentation)
Creating initial configuration...mgd: error: Cannot open configuration file: /co
nfig/juniper.conf
mgd: warning: activating factory configuration
mgd: Running FIPS Self-tests
veriexec: no fingerprint for file='/sbin/kats/cannot-exec' fsid=72 fileid=51404
uid=0 pid=534
mgd: FIPS Self-tests Passed
mgd: commit complete
mgd: />mgd: Please login as 'root'. No password is required.
mgd: To start Initial Setup, type 'ezsetup' at the JUNOS prompt.
mgd: To start JUNOS CLI, type 'cli' at the JUNOS prompt.
mgd: />Setting initial options: debugger_on_panic=NO debugger_on_break=NO.
Starting optional daemons: .
Doing initial network setup:
.
Initial interface configuration:
additional daemons:.
Additional routing options:kern.module_path: /boot//kernel;/boot/modules -> /boo
platform NETPFE module
tform;/modules;
kld netpfe drv: ifpfed_eth ifpfed_ml_cmnkld platform: ex_ifpfe if_vcpkld peertyp
e: peertype_hcm peertype_pfem peertype_sfi peertype_slavere grat_arp_on_ifup=YES
: net.link.ether.inet.grat_arp_on_ifup: 1 -> 1
ipsec kld.
Doing additional network setup:.
Starting final network daemons:.
setting ldconfig path: /usr/lib /opt/lib
starting standard daemons: cron.
Local package initialization:.
Initialize /var subdirs
starting local daemons:set cores for group access
.
Sun Dec 22 12:28:43 UTC 2024
Boot media /dev/da0 has dual root support
** /dev/da0s2a
FILE SYSTEM CLEAN; SKIPPING CHECKS
clean, 36995 free (19 frags, 4622 blocks, 0.0% fragmentation)
Amnesiac (ttyu0)
login: root
--- JUNOS 12.3R6.6 built 2014-03-13 06:57:48 UTC
** **
** WARNING: THIS DEVICE HAS BOOTED FROM THE BACKUP JUNOS IMAGE **
** **
** It is possible that the primary copy of JUNOS failed to boot up **
** properly, and so this device has booted from the backup copy. **
** **
** Please re-install JUNOS to recover the primary copy in case **
** it has been corrupted and if auto-snapshot feature is not **
** enabled. **
** **
Broadcast Message from root@
(no tty) at 12:29 UTC...
ALERT:Auto-image upgrade will start. This can terminate config CLI sess
ion(s). Modified configuration will be lost. To stop Auto-image, in CLI do the
following: 'edit; delete chassis auto-image-upgrade; commit'.
